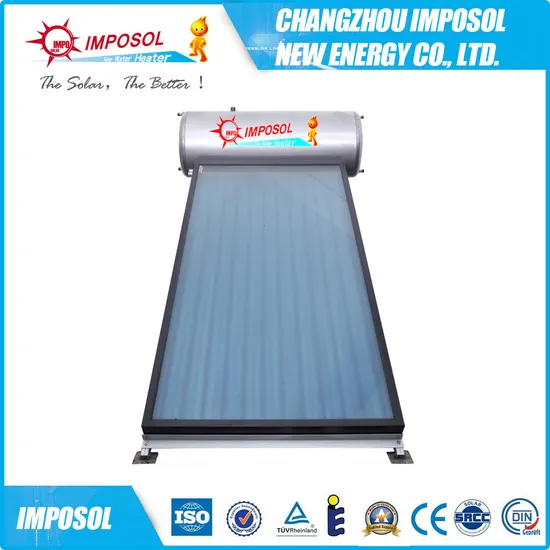

Integrated Flat Plate Solar Water Heater (XinCheng series)

Product Description

Technical Specifications
Flat Plate Solar Collector Part :
Dimensions : 2000*1060 ( 1560 )*80 mm , Gross area 2 ( 3 ) m2, Absorber area 1.8 ( 2.7 ) m2 .
Core material : 22mm header copper pipe with 10mm branch copper pipe - 0.6mm thickness , aluminum heat absorption plate wth black chrome coating .
Cover glass material : Low iron tempered glass 3.2mm . Transmittance 91%, EPDM+metal sealed
Frame material : Aluminum alloy 1.0mm
Insulation material : Glass wool ad PE foam ,35mm thickness
Back sheet material : galvanized plate 0.3mm
Working ( Testing ) pressure : 600kpa ( 800kpa )
Solar Water Tank And Frame Support Part :
Outer Tank : Painted galvanized steel - 0.4mm thickness , free-welding technology .
Inner Tank : SUS304-2B food-grade stainless steel - 1.2mm thickness , laser welding technology .
Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .
Frame support : Painted galvanized steel - 1.5mm thickness , anti-corrosive and anti-ultraviolet .
M8 Stainless steel SUS 304 bolts and nuts .
Silicone seal ring and dust ring
Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent
Pressure&temperature valve
Magnesium anode rod
Pressure relief valve with check valve
Thermal circulation connection pipe with insulation
Optional Accessories :
Electrical heater
Solar Controller
Freeze Protection Valve
Vacuum breaker valve

Model	Flat Plate Solar Collector			Capacity (Liters)	Loading Quantity (20GP/40HQ)
	Gross Area(m2)	Unit Area (m2)	NO .
IPFT 100II GS	2 m2	2 m2	1	100	49/118
IPFT 150II GS	2 m2	2 m2	1	150	42/102
IPFT 200II GS	3 m2	3 m2	1	200	31/75
IPFT 300II GS	4 m2	2 m2	2	300	23/55
