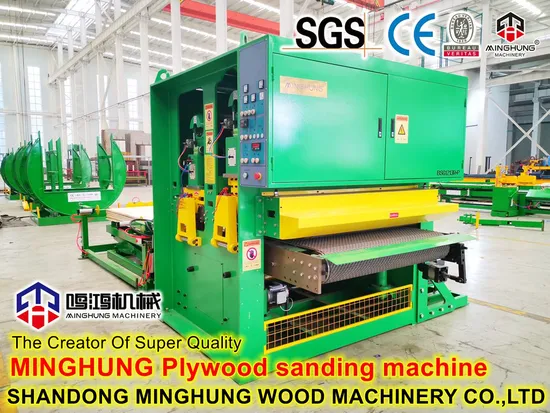

1300mm/1700mm/2000mm Woodworking Wide Belt Sanding Machine for Plywood/Block Board/Wood Floor/MDF/Chipboard

Product Description

Heavy Duty Sanding Machine for Plywood/Block board/Wood floor/MDF/Chipboard

What is the Sanding Machine

Wood sanding machine is a kind of mechanical equipment for grinding and polishing the surface of wood, which is widely used in furniture manufacturing, wood product processing, architectural decoration and other industries. The main function of the sanding machine is to remove burrs, irregularity and defects on the surface of the wood, so that the surface is smooth and smooth, so as to improve the appearance quality and processing accuracy of the wood
1. Working principle
The wood sander sands the wood surface with a high-speed rotating sanding belt or sanding pan. The sanding belt or sanding tray is covered with sandpaper, and the grit of the sandpaper can be selected according to the need, so as to achieve the effect of coarse grinding, fine grinding or polishing. The sander is usually equipped with a dust suction system to collect wood chips and dust generated during the sanding process and keep the working environment clean.
2. Main components
- Sand belt or sand plate: used to polish the main components of the wood surface, the grain size of the sand belt can be changed as needed.
- Motor: provides power to drive the sand belt or sand disk to rotate at high speed.
- Table: Used to support and fix the wood to ensure the stability of the wood during the grinding process.
- Adjusting device: Used to adjust the height, Angle and pressure of the sand belt or sand pan to adapt to different thicknesses and shapes of wood.
- Vacuum system: Used to collect wood chips and dust generated during the grinding process to keep the working environment clean.
- Control system: Used to control the start and stop of the sander, speed adjustment and other operations.
3. Advantages
- High efficiency: Mechanized operation greatly improves the grinding efficiency, suitable for mass production.
- High quality: Ensure smooth and flat wood surface through precise control of grinding parameters.
- Flexibility: suitable for a variety of wood and different shapes of the workpiece, such as planes, surfaces, corners and so on.
- Environmental protection: equipped with dust suction system, reduce dust pollution, improve the working environment.

Single Side Sanding Machine

This is Single side sanding machine, which can sanding One side of wood panel one time. Keep sanding accuracy

Double Sides Sanding Machine

This is Double sides sanding machine, which can calibrating Both sides of wood panel at the same time, so its working efficiency higher, and production capacity bigger.
There are two choice as the pictures showed, one is standard double sides, another one is calibrating heads with polishing function, so it also have the polishing panel surface fuction.

Auto Loader+Stacker for Sanding Machine

This is Auto loader and Stacker, with it, the whole sanding machine line will be automatic, no need workers, high efficiency
This is Auto panel turner, for Single side sanding machine, The Auto system line with panel turner, thus it can directly overturn the plywood, so it is easier and conveniently for you to sanding another plywood side,

Specification of Sanding Machine

product name	Single side sanding machine	Double side sanding machine
working width	≤1300mm /or customized	≤1300mm /or customized
working length	≥700mm	≥700mm
working thickness	5-100mm	5-100mm
abrasive belt size	2620*1330mm	2620*1330mm
speed of dust-collector	0.6m³/min	0.6m³/min
speed of dust-collector	25-30m/s	25-30m/s
volume of dust collector	12000m³/h	30000m³/h
weight	8000kg	12000kg

<1> More than many years design and improve, we have advanced technology for producing precise sanding machine.
<2> Sanding machine can be different configuration and structure according to your own needs, for offer you the most suitable sanding machine.
<3> Using good spare parts, to make sure ever part of sanding machine are good quality.
<4> Help you produce very accurate plywood, and surface smooth.
<5> Operate easily, sanding speed fast, high work efficiency.

MINGHUNG Sanding Machine Delivery

<1> Before Order ship, our engineer will test machine make sure it is in good condition.
<2> When loading, we will share pictures with you.
<3> After ship leaving, we will offer container and ship information for your reference.
<4> Offer all documents for you do custom clearance.

About Us:

MINGHUNG MACHINE located in Linyi city, Shandong Province China, commit to provide the full sets of Plywood production line. Minghung Wood machinery, Minghung trade, Jianzhong trade, Hungyou Intelligent Equipment Industry Research, belong to us.
With near 40 years production experience, and adhere to continuous innovation and improvement, with specialized R&D center, obtained a number of research and development patents, with experienced technians and engineers, and professional sales team and after-sales team, We have beome one China's high-end plywood machinery manufacturing enterprise.
We can provide Veneer production line, Veneer drying line, Core veneer composing line, Plywood assembly line, Veneer patching machine, Glue machine, Cold press machine, Hot press machine, Film faced hot press machine, Plywood edge trimming machine, Sanding machine, Plywood panel turnover machine, Lift table and so on for you.
Our principle is "Make customers satisfied and Create greater value for customers".

Related Plywood Machinery

This is plywood overturn machine, usually works together with the single side sanding machine, it can overturn plywood 180 degree
Plywood Press machine

RFQ About Our Machines

Production Time:

40 days after receive your deposit.

Payment Terms:

30% deposit, 70% before delivery. 100% Letter of Credit.

Warranty:

2 years for main parts.

MOQ:

1 set

Installation:

When machine reach your factory, our engineer can go to install

After-sales service:

Any problem that your worker can not solve, tell us, we will reply you at the first time,
