Superior Waste paper Vertical hydraulic packer Bottle Recycle Baler

Product Description

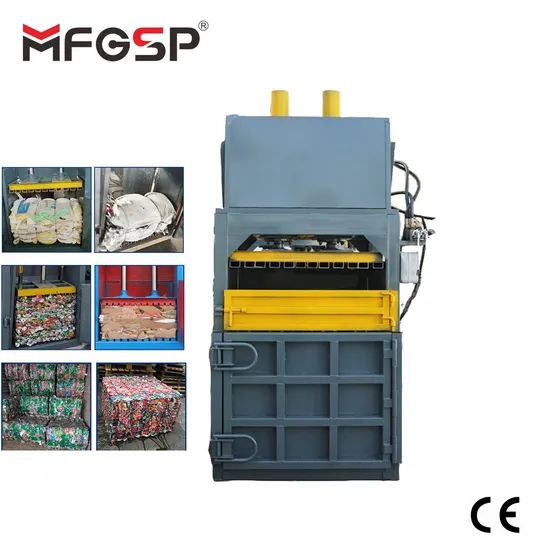

VERTICAL HYDRAULIC BALER

Product Model /Technical Parameters:

Model	Motor(kw)	Packing size(mm)	Dimensions (mm)	Oil pump(mm)	Cylinder ID(mm)	Cylinder OD(mm)
8T Single Cylinder	4	600×400×600	1250×650×2150	306gear pump	80	90
10T Single Cylinder	7.5	800×400×800	1450×650×2600	320gear pump	100	115
20T Single Cylinder	7.5	800×400×800	1450×650×2700	325gear pump	125	140
30T Single Cylinder	11	1000×600×800	1650×850×2750	532gear pump	140	160
30T Double Cylinder	11	1000×600×800	1650×850×2700	532gear pump	100	115
40T Double Cylinder	11	1000×600×800	1650×850×2750	550gear pump	125	140
60T Double Cylinder	15	1200×800×1000	1600×2100×3100	563gear pump	140	160
80T Double Cylinder	18.5	1200×800×1000	1700×2100×3300	563gear pump	160	180
100T Double Cylinder	22	1200×800×1000	1700×2100×3900	563gear pump	160	180
120T All Steel Plate	22	1100×700	1400×2000×4200	80YCY Variable displacement piston pump	200	230

Product introduction
1.No installation required and easy to operate
After the machine is refueled and powered on, it does not need to be installed, and the compression work can be started by directly operating the joystick, which is effectively save labor costs.

2.U-shaped anti-drop door handle

The door handle is updated, and the U-shaped design is non-slip and easy to unlock. Greatly reduces the time cost after packaging.

3.High quality copper core motor
The motors are all made of brand copper core motors, which have strong power, durability, and faster heat dissipation.Ensure smooth and continuous operation of the machine.

4.Automatic push bag, turn bag design
Automatically push the bag and turn the bag to support customization, easy to operate, and the bag can be directly mechanically released after the pressing work is completed, which effectively saves labor.

5.High sealing wear-resistant oil pipe
Imported wear-resistant and high-sealing oil pipe, with thick pipe wall and strong sealing connection, to ensure no oil leakage during compression work.

Application cases:
