Flexible CE Solar Cable 6mm for DIY Solar Panel Installation
Basic Info.
Model NO.
H1Z2Z2-K
Current
DC Cable
Insulation Material
XLPE
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Tinned Wire
Certification
ISO, CCC, CE, RoHS, TUV CE En50618 IEC60930 UL4703
Model
H1z2z2-K
Brand
Kuka
Jacket
Xlpo
Dielectric Strength
DC-15kv/1 Sec Min
Size
1.5mm-120mm
Color
Red, Black, Blue
Product Lifespan
30 Years
Temperature Rating
125
Maximum Short-Circuit Temperature
250
Weathering/UV-Resistance
720h, No Cracking
Conductor Material
Tinned Copper
Spark Test
DC-10kv/in The Air
Transport Package
Roll, Reel, and Drum
Specification
4mm2 6mm2 10mm2 25mm2 35mm2 50mm2 90mm2
Trademark
KUKACABLE
Origin
Shanghai, China
HS Code
8544492100
Production Capacity
500km a Week
Packaging & Delivery
Package Size
24.00cm * 16.00cm * 13.00cm
Package Gross Weight
2.000kg
Product Description
Product Parameters
Product Description

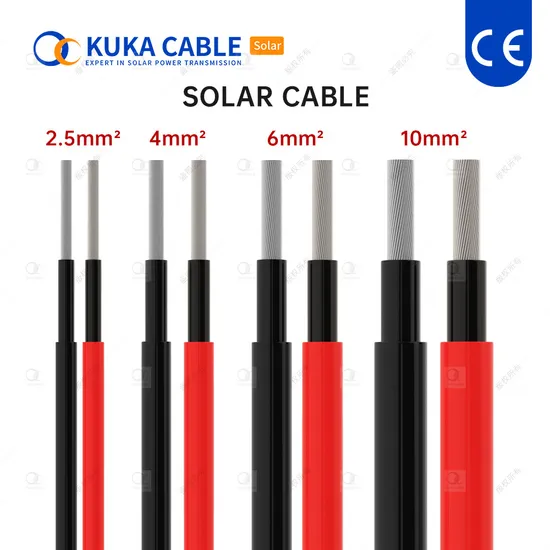

Solar Cable H1Z2Z2-K
Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.
FAQ Q1:I didn't find my needed model in this page. A1:We are factory. Catalog will emailed to you asap you contact us. Also, wesupply customization service. So, contact us!
Q2:How long is your delivery time?
A2:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3:Can I see the sample first before I place the real order ?
A3:Of course. We can offer little sample for testing quality and market.
Q4:How about MOQ ?
A4:Our company has MOQ requirement, but we also accept small quantity.
Q5:What is your terms of payment ?
A5:Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.
| Solar pv cable is an indispensable part of solar panel power generation system. The conductor is tinned copper and the insulation material is XLPE. |
