Hydraulic Sheet Metal Press Brake Machine Price for Sale

Product Description

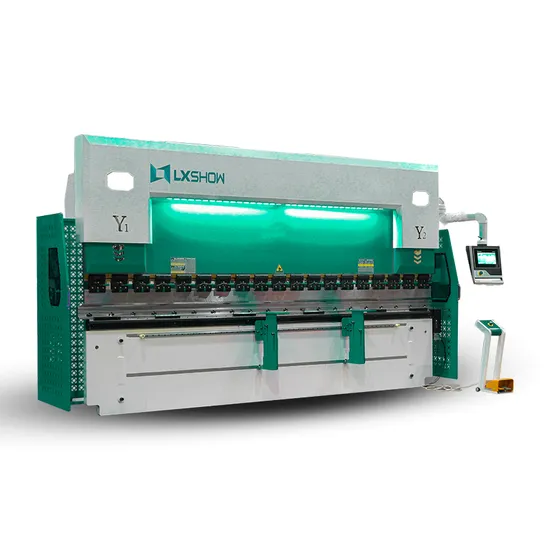

Electro-Hydraulic Servo 6+1 CNC Bending Machine Press Brake
The frame is composed of oil tank, bracket, workbench, left and right wall panel and slide block, which ensures the structural strength of the frame. After welding, it is processed on the large floor boring and milling machine after stress removal. In particular, the slide block adopts vertical processing technology (because the working state of the slider is vertical) so as to ensure the straightness of the upper die mounting surface of the slider in the working state.
The machine has higher labor productivity and higher accuracy of bending metal plate, using different shapes of the upper and lower mold, can be bent into various shapes of the workpiece, the slider stroke can be a sheet material for a bending forming, after multiple bending can be obtained more complex shape of the workpiece, when equipped with the corresponding equipment, can also be used for punching.
Product Parameters
Main Technical Parameters

Machine model		WE67K-70T/2000
Nominal Pressure		700 kN
Bending length		2000mm
Distance between columns		1490 mm
Throat Depth		230 mm
MAX Pressure of system		22Mpa
Slide running condition	Moving Journey/stroke	200mm
	fast down speed	180mm/s
	return speed	110mm/s
	working speed	10mm/s
Slide running precision	Position accuracy	±0.03mm
	Repeat Position accuracy	±0.02mm
Main motor power	Power	5.5 KW
	rotate speed	1440r/min
Operate system	Model	DE15 System
Oil Pump	Model	USA sunny
Bending precision	angle	±30'
	straightness	±0.7mm/m
Voltage		220/380/420/660 V
Tech Info		1)Tonnage=8*1.68*stainless Steel thickness*plate Width 2)Tonnage=8*carbon steel plate thickness*plate width

Product Details
Control System:Delem DA66T
1 2D touch graphic programming
2 3D product graphic simulation display
3 Complete Windows application package
4
Compatible with Delem modular structure system
Product Shape Structure1 Use UG (finite element) analysis method, computer aided optimization design, beautiful appearance.
2 The machine adopts steel plate welding structure, with enough strength and stiffness, hydraulic transmission to ensure that the work will not cause serious overload accident due to the change of plate thickness or the improper selection of the die "V" groove. In addition, the machine has the characteristics of stable work, easy operation, low noise, safe and reliable.
Hydraulic System1 Adopt the most advanced full closed-loop electro-hydraulic servo synchronous control system;
2 Hydraulic system complete set imported from Germany ARGO Company;
3 The sealing parts in the cylinder are international famous brands with strong sealing and long service life.
4 The hydraulic system has overload overflow safety protection;
5 Oil pump high pressure filter blocking alarm;
6 Clear and intuitive display of oil level height;
Table Deflection Compensation System
1 The compensation system is the control of the table to add convex numerical control shaft, can obtain accurate deflection compensation on the full length of the table.
2 The deflection compensation table can be maintenance-free during the life of the machine tool. Compared with the compensation method of hydraulic cylinder, it has incomparable advantages.
3 Can form effective "reverse complement" at both ends of the compensation curve
Electrical Control System1 Electrical components imported from abroad or joint venture products, in line with international standards, safe and reliable, long life, anti-interference ability
Strong force;
2 Movable button station (including foot switch), convenient operation, emergency stop function;
3 The working system should have the necessary limit protection measures, once abnormal should be able to detect through the system and immediately alarm;
Sample Show
Factory
* About Jinan Lingxiu Laser Equipment Co., Ltd.is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Customer Visit
After Sales Service
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.
At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A:Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you. Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period. Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running. Q: Do you have any other machine style?A: Yes, please check the following machine style, if you have any questions, you can contact us any time, 24x7, we always here.
