Lpcb Smoke Alarm Approval 1loop Addressable Fire Alarm System Control Panel

Product Description

JB-TB-TC5100 Intelligent Fire alarm control panel is a new generation launch by our company. It has linkage control function to meet the needs of engineering design, used with other TC products to form a flexible integrated alarm linkage control system, which is very suitable in the application to fire alarm and fire linkage control system.
1.1 Strong function and high reliability
The control panel adopts intelligent loop control mode, and each loop can have up to 255 addressable points (addressable detectors, modules or LCD repeater panels, etc.). The loop adopts isolation design, so that the anti-interference performance is strong and the system is stable and reliable. And it is convenient for field using and commissioning.
1.2 Color menu display interface
This control panel adopts menu display interface, clear and direct, and easy to use. It can achieve a variety of functions provided by the system through simple operations.
1.3 Flexible modular structure and multiple functional configurations
The control panel consists of various functional modules. Functional modules adopt plug-in structure. Configuration is flexible and convenient, and it is convenient for installation, commissioning, maintenance and later dilatancy.
1.4 Compatible with intelligent loop control panel
The control panel is compatible with intelligent loop control panel (64 points), with less wiring and high reliability. By defined, every start/stop key on the manual startup panel can be associated with any loop device connected to the system to control device's start/stop which thoroughly solves the inherent problems in the engineering wiring, equipment configuration and installation and commissioning of the integrated alarm linkage system.
1.5 Compatible with intelligent direct control panel
The control panel is compatible with direct control panel of two-wire or three-wire system. And it has open circuit and short circuit detecting function, which can ensure the reliability of the control panel and the connection between devices to the greatest extent.
JB-TB-TC5100 Intelligent Fire alarm control panel is a new generation launch by our company. It has linkage control function to meet the needs of engineering design, used with other TC products to form a flexible integrated alarm linkage control system, which is very suitable in the application to fire alarm and fire linkage control system.
1.1 Strong function and high reliability
The control panel adopts intelligent loop control mode, and each loop can have up to 255 addressable points (addressable detectors, modules or LCD repeater panels, etc.). The loop adopts isolation design, so that the anti-interference performance is strong and the system is stable and reliable. And it is convenient for field using and commissioning.
1.2 Color menu display interface
This control panel adopts menu display interface, clear and direct, and easy to use. It can achieve a variety of functions provided by the system through simple operations.
1.3 Flexible modular structure and multiple functional configurations
The control panel consists of various functional modules. Functional modules adopt plug-in structure. Configuration is flexible and convenient, and it is convenient for installation, commissioning, maintenance and later dilatancy.
1.4 Compatible with intelligent loop control panel
The control panel is compatible with intelligent loop control panel (64 points), with less wiring and high reliability. By defined, every start/stop key on the manual startup panel can be associated with any loop device connected to the system to control device's start/stop which thoroughly solves the inherent problems in the engineering wiring, equipment configuration and installation and commissioning of the integrated alarm linkage system.
1.5 Compatible with intelligent direct control panel
The control panel is compatible with direct control panel of two-wire or three-wire system. And it has open circuit and short circuit detecting function, which can ensure the reliability of the control panel and the connection between devices to the greatest extent.
1.6 Compatible with LCD repeater panel
The control panel is compatible with LCD repeater panel through loop. It is convenient and reliable to install. It can display the alarm's device type and note information.
1.7 Configuration and Internal Structure
Intelligent Fire alarm Control Panel is installed in cabinet structure, and the typical configurations include: main board, loop control panel, direct control panel and power supply panel, etc. This system integrates alarm and linkage. With loop and direct control, the control panel not only can complete alarming, but also control fire-fighting devices' start/stop.

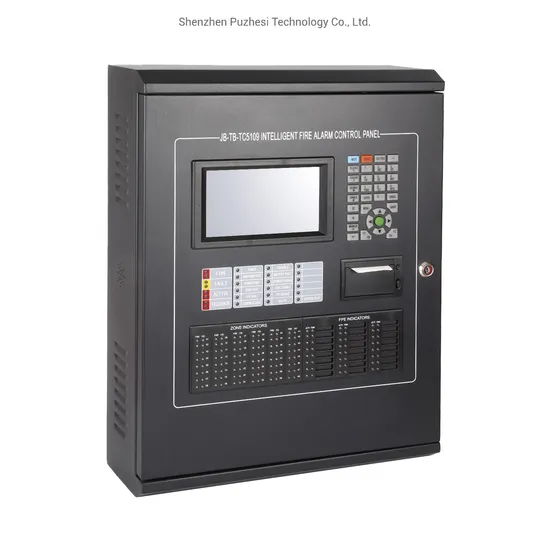

The appearance sketch diagram of JB-TB-TC5100 FACP is shown in Fig. 2-1:
Technic Index
Capacity:
Maximum 4 loops,1020 addressable points.
Maximum 60 LCD repeater panels
Maximum 1 direct control panel
Maximum 1 loop control panel
Wiring system:

Wiring system	Connecting wire	Distance	Quantity
24V non-polarity two-wire	≥1.0mm2 twisted pair	<1.5km	255 detectors or modules
RS485 loop	Two-core shielded wire	<500m	1 CRT
Two-wire direct control wire	≥1.0mm2 RV cable	<1.5km	Maximum control 15 points each panel, each point connect 1 TCMK5207
Three-wire direct control wire	≥1.0mm2 RV cable	<1.5km	Maximum control 15 points each panel

Operation environment
Temperature:0ºC~+40ºC
Relative humidity≤95%,non-condensation
Power supply
Main power supply:AC220V (5A)
Voltage range: +10%~-15%
Backup power supply:DC24V
Backup battery:12V/12AH sealed lead acid battery
