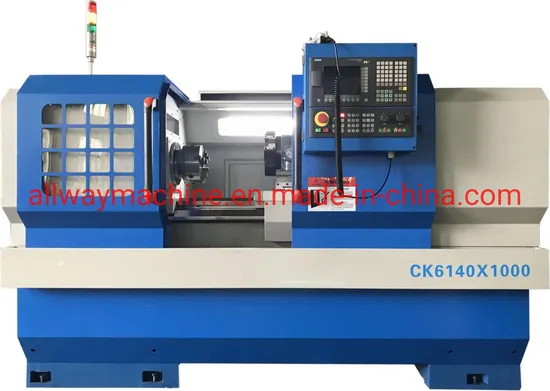

Flat Bed CNC Horizontal Lathe
Basic Info.
Model NO.
CK6136, CK6140
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
W/Case
Specification
360mm
Trademark
Allway
Origin
China
HS Code
84581100
Production Capacity
2000PCS/Year
Product Description
The main performance characteristics:Widening high stability bed Two gear spindle speed,stepless in gear Wider layor board Intergrated automatic lubrication system Application: The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .This machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on. Product Parameters
Product main technical Specifications:
| Specifications | Unit | CK6136 |
| Max.swing over bed | mm | Ф360 |
| Max.swing over cross slide | mm | Ф150 |
| Distance between centers | mm | 1000/1500 |
| X/Z axis travel | mm | X:220 Z:1050/1600 |
| Spindle transmission type | Mechanical 2 gear transmission ,in gear variable speed | |
| Spindle speed steep | variable | |
| Spindle speed | rpm | L:70~560,H:200~1600 |
| Spindle nose | C6 | |
| Thru-hole dia.of spindle | mm | 52 |
| Spindle taper | MT6 | |
| Spindle motor | KW | 5.5 |
| Chuck size | mm | 200 |
| Ball screw dia.and pitch | mm | φ25X6/φ40X8 |
| X/Z axis feed motor torque | N.m | X:6 Z:10 |
| X/Z axis feed motor power | KW | X:1.5 Z:2.5 |
| X/Z axis fast moving speed | mm/min | X:6000 Z:8000 |
| X/Z axis Position accuracy | mm | 0.02/0.025 |
| X/Z axis repeatability | mm | 0.01/0.015 |
| Processing accuracy | IT6-IT7 | |
| Workpiece surface roughness | Ra1.6 | |
| Tailstock sleeve dia. | mm | 65 |
| Tailstock sleeve travel | mm | 140 |
| Tailstock sleeve taper | # | MT4 |
| Guide form | Spindle mountain+flat rail | |
| Total power capacity | KVA | 10 |
| Machine dimension(L×W×H) | mm | 2500/3000X1500X1650 |
| N.W. | kg | 1500/2000 |
