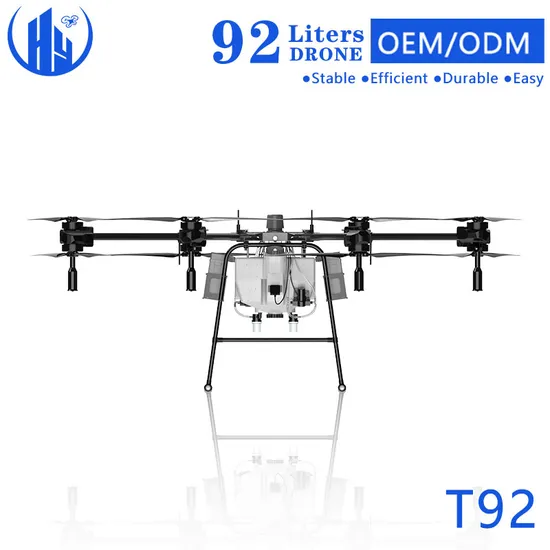

92L Professional Delivery Cargo Transport Agriculture 100kg Agricultural Uav Sprayer Heavy Lift Agro Dron Fpv Camera Agricola Pesticide Spraying Drone

Product Description

Product Parameters

Aerial Platform		Spraying System
Structural Design	8- Axis	Liquid Tank	Capacity	92L
Dimensions (folded)	1300*1300*1300 mm	Nozzles	Nozzle Type	Centrifugal nozzles
Dimensions (unfolded)	3160*3160*1300 mm (propeller folded) 4445*4445*1300 mm (propeller unfolded)		Quantity	4
Weight	71.6 kg		Spray Width	8~20 m
Max.Takeoff Weight	190 kg	Pump	Quantity	2
Max.Payload	100 kg		Max. System Flow Rate	24 L/min
Max. Liquid Capacity	92L		*New Feature	Dual External Filters
Waterproof Grade	IP67	Maximum Work Efficiency		33 ha/h
Max Flight Speed	12M/s	GNSS		GPS/BDS/Glonas
Battery	18S 30000mah *2	Remote Control		5.5-inch high brigh screen

Main Application Scenarios
Why Are Large - Capacity Agricultural Drones the Future Market Trend?
The Inevitable Ascendancy of Large - Capacity Agricultural Drones in the Market
In the highly competitive and dynamic modern agricultural market, large - capacity agricultural drones are carving out a prominent position, and their alignment with the market trend is more evident than ever.
With the continuous expansion of the scale of agricultural production, large - scale farms are on the rise. These expansive farming operations require equipment that can handle large - scale tasks efficiently. Large - capacity drones, with their ability to cover extensive areas in a single flight, are a perfect fit. For instance, in a large - scale soybean - growing region where thousands of acres of land are under cultivation, a large - capacity drone can complete the pesticide - spraying task across vast fields much more quickly than traditional methods. This not only meets the time - sensitive needs of large - scale farming but also ensures that all crops receive timely protection, which is crucial for high - yield harvests.
In addition, the modern agricultural market is increasingly focused on cost - effectiveness and environmental sustainability. Large - capacity drones contribute significantly in these aspects. Their precise spraying systems can accurately dispense pesticides according to the actual needs of different parts of the field. This precision minimizes pesticide waste, reducing both the cost of pesticide procurement and the negative impact on the environment. In an era where environmental protection and cost - control are top priorities for farmers and the agricultural industry as a whole, large - capacity drones stand out as an ideal solution.
Furthermore, the development of agricultural technology is moving towards automation and high - efficiency. Large - capacity drones, with their relatively simple operation and high - speed work capabilities, are in line with this technological development trend. They can be easily operated by farmers with basic training, and their ability to complete tasks rapidly enables more efficient use of resources and better utilization of the agricultural production cycle.
In conclusion, large - capacity agricultural drones, due to their adaptability to large - scale farming, contribution to cost - effectiveness and environmental protection, and compliance with technological development trends, are undoubtedly the future market trend in modern agriculture and will continue to reshape the agricultural landscape.
Product Description

Spraying Parameters
Spraying Width	8-20M
Flow Rate	12-24L/min
Spraying System	centrifugal nozzle*4
Maximum Work Efficiency	33 ha/h

·Efficient Distribution: The centrifugal spray head in drones can distribute substances such as pesticides, powders, suspensions, emulsions, and soluble powders more evenly. This uniformity ensures that every part of the field or area being sprayed receives an equal amount of substance, leading to more effective and efficient usage.
·Adjustable: The size of the spray droplets can be adjusted by controlling the speed of the nozzle, achieving precision agriculture.
·Easy to Replace and Maintain: The centrifugal spray head consists of a centrifugal motor, a spray tube, and a spray disc. The spray disc is separated from the motor, preventing the motor from coming into contact with pesticides, extending the motor's lifespan.
·High Corrosion Resistance and Durability: The spray disc is made of high-quality materials that can withstand acidic and alkaline pesticides.
Capable of delivering a maximum flow rate of 24 L/min, this feature enables the drone to complete spraying tasks efficiently, covering extensive areas in just 3 minutes.
Ensures easy maintenance and reliable operation by effectively filtering out debris from field water sources, preventing clogging in the spraying system and allowing for quick and convenient cleaning.
Improved safety: Front and rear obstacle avoidance radars can help the drone detect obstacles around it, thus avoiding collisions and accidents. This is especially important when encountering unexpected obstacles or emergencies during flight, helping to ensure the safety of the drone, the surrounding environment and personnel.
Precise navigation: Ground-mimicking radar can help achieve precise navigation and positioning. By recognizing and measuring ground features, can more accurately determine its own position and flight altitude, thus realizing more precise route planning and flight control.
Enhanced Autonomous Flight Capability: With front and rear obstacle avoidance radars, able to fly autonomously to a certain extent, without having to rely entirely on the operator's command. This improves flight stability and reliability, reduces the burden on the operator.
·Easy to use: With a user-friendly design, clear operating interface, and reasonable button layout, you can easily control the flight and operation of the drone.
·Multiple language options: The remote control supports multiple languages such as English, Spanish, and Chinese, allowing you to easily use drones in any country.
·High definition display screen: Equipped with a 5.5-inch high-definition display screen, it can display real-time information such as the flight status, operation parameters, and image transmission of the drone, allowing you to stay informed about the drone's situation at any time.
·Long endurance battery: Equipped with a large capacity battery, so you don't have to worry about low battery. Standard Configuration
Company Profile
Why Choose Us
1> We have a wide range of drone products that can meet different requires.
2> We have a long history of drone manufacturing and a strong R&D team. We are constantly improving our products and services to meet the changing needs of our customers.
3> We have a global sales network. We can deliver our products to you quickly and conveniently.
4> We have a competitive price advantage that can help you save costs and increase profits. Our products are affordable and durable, and we also offer discounts and coupons for bulk orders.
6> We have a loyal and satisfied customer base that has given us positive feedback and testimonials.
7> We have a social responsibility and environmental awareness that guide our business philosophy. We aim to help our customers achieve sustainable agriculture and natural resource management with our drones.
8> We have a vision and mission to become the leading drone manufacturer in the world. We are committed to providing our customers with high-quality products and complete solutions that can solve their pain points and create value for them
If you are interested in our products or services, please feel free to contact us anytime. We look forward to hearing from you soon. Thank you for your attention.
