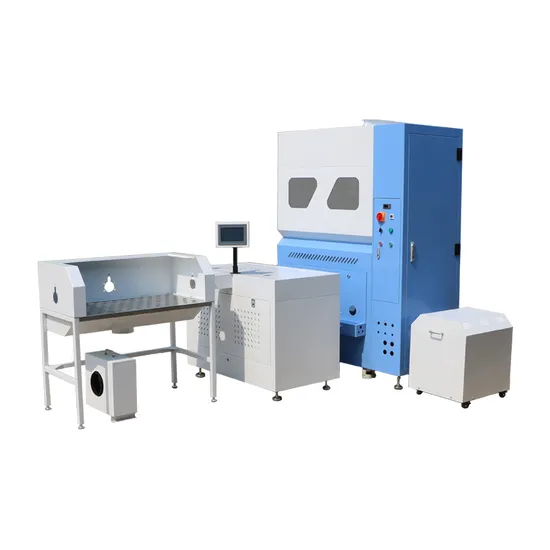

Multi-Function Compact Down Vest Pants Filling Machine
| US$21,999.00-25,999.00 | 1 set (MOQ) |
Basic Info.
Model NO.
412D
Filling Nozzles
Two Nozzles
Weighing Cycles Num
4
Filling Range
0.2-35grams
Show Weight Accuracy
0.01gram
Nozzles Size
19mm and 25mm
Filling Materails
Duck Down, Goose Down, Ball Fiber, Short Fiber
Application
Down Jacket, Winter Clothes
Driven Type
Atmospheric Pressure
Air Pressure
0.7-0.8MPa
Supply Power
1AC 220V 2.5kw
Dimension(L*W*H)
1500*2500*2000mm
Type
Weighing-type Filling Machine
Transport Package
Wood Case
Trademark
FuDa
Origin
Shanghai, China
HS Code
8479899990
Production Capacity
100sets/Month
Product Description
multi-function Compact Down Vest Pants Filling MachineSpecification
| Filling Range | 0.2-35grams | Show Weight Accuracy | 0.01gram |
| Nozzles Size | 19mm and 25mm | Dynamic weighing error | ± 3% |
| Driven Type | Atmospheric Pressure | Air Pressure | 0.7-0.8MPa |
| Supply Power | 1AC 220V 2.5kw | Air compressor power | 7.5kW or above |
| Filling Materails | Duck Down, Goose Down, Ball Fiber, Short Fiber | Application | Down Jacket,Vest,Pants,Duvets |
FAQ: QI:Does this machine require skilled workers to use it?
A1:It is simple and easy to learn, novices can also learn, we have video guidance.
Q2:What type of raw materials can be filled with this machine?
A2:It can be filled with short fiber, duck down, goose down.
Q3:How is the filling weight accuracy of this machine
A3:Its accuracy can reach 0.01g
