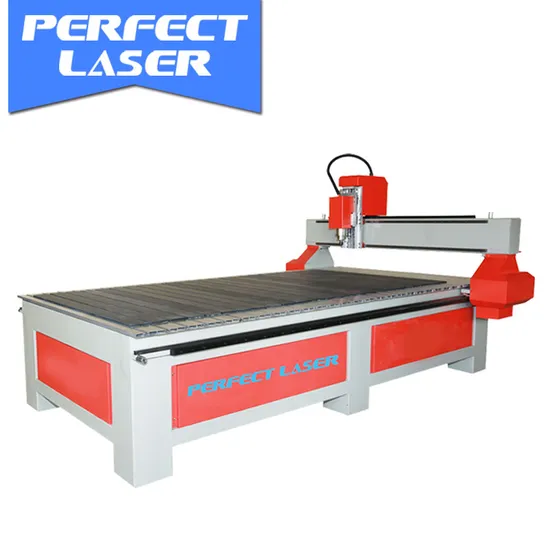

Hot Sale Woodworking CNC Router Kit Machine

Product Description

Hot Sale Woodworking CNC Router Kit Machine
(Model:PEM-1212A)
Contact:Candy
CNC router Kit Machine are designed for Ads industry with pure aluminum, which ensures the parallelism and greatly increases the precision and speed of the engine bed.
It is a CNC routers for woodworking and can be applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the machine is calculated and customized according to optimization rules in market Statistics.
It covers main sizes of marks and labels in the market.
It can cut through MDF, wood, plexiglass with thickness of 20-25mm one time and can be applied to large-scale relief, too.1325 CNC routers aredoubtlessly a perfect product in the range of advertising.

Applicable Fields:
Our CNC Router is mainly applied in woodworking industry, furniture industry for furniture decoration, wooden door and window frame processing, and wooden handcraft making industry,manufacturing sewing machine table and cabinet panels, etc. Our CNC Router are not exclusively applicable for wood engraving, wood cutting ;but also can be sued for engraving on Acrylic Engraving, Acrylic Cutting, PVC Engraving, PVC Cutting ,Stone Engraving, StoneCutting, Metal Engraving, Metal Cutting, etc.
Product Features:
1) X, Y, Z axis use imported ball bearing guide screws. It's precise and fast. Even the letters of 1mm can be clearly discernible. The small-power machine uses large-power main axis, it's an ideal product for manufacturing labels, construction models and moulds in batches.
2) High speed calculation It uses DSP64 contouring control system and FPGA technology which can continually and smoothly run the three axes with high speed. It has the ability of calculation of 5000 vector/s.
3) Steady data transmission .The data transmission uses the technology of ISA/IP DNC/IP straight association, which can associate the machine without interruption, and it has no limitation of the amount of the document.
4) Double-nut guide screw .It uses Germany-imported high-precision ball bearing guide screw which can eliminate cracks automatically. Coordinated with the imported shaft coupling, it can realize precise control. It uses straight line guide rail (cylinder or square), which can ensure the working life.
5) Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.
6) Connection with the computer via USB interface enables data to be transmitted in a second, supports hot plug and play, no driver installation required(Window98/NT/2000/XP).
Technical Parameter:

Model No.	PEM-1212A
Working area	1200*1200mm
Power	2.2kw	3kw	4.5kw
Table material	Aluminum Alloy table
Maximum feed height	80mm
X,Y,Z Guideway rails type	Square Shape Guide Rail, Gear Transmission
Max Engraving Speed	4,000-7,000mm/min
Resolution ratio	0.002mm
Repetition accuracy	±0.02mm
Spindle power	2.2kw, 3kw, 4.5kw
Spindle Rotating Speed	6000 - 24,000rpm
Spindle cooling	Water Cooling
Drive motor system	Step Motor and Step Driver
Interface	PCI Port or USB Port
Memory buffer (Flash)	128MB
Engraving Command	G code, u00, mmg, PLT, HPG
Command language system	English Version, Windows 98/2000/XP Operation System
Operational Software	Original Type3 Software, ArtCam software or Wentai Software
Software Compatibility	Support CAD/CAM software, PLT format, Corel Draw, Auto CAD
Working temperature	0-45°C
Relative humidity	30% - 75%
Notice: We can make some adjustion on the price if we know your exact requirements!

Except for 1200*1200mm, we also manfuacture other working area cnc routers, such as 600*900mm, 1300*2500mm. Any interest, feel free let me know.
Before making best quotes for you, could you answer following questions:
* What's your material?(wood, acrylic, plastic, stone, metal etc)
* What's your material working area?
* Your material thickness?
* Your country port for checking shipping.
* If the price confirmed, when will you place order?
Company information
We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, with CE/ISO/FDA, we aim to make high-quality products, and also our products have been exported to more than 180 different countries and areas.
Contact me:
Perfect Laser Co., Ltd. (China)
Contact: Candy/ Sales Department

Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).
