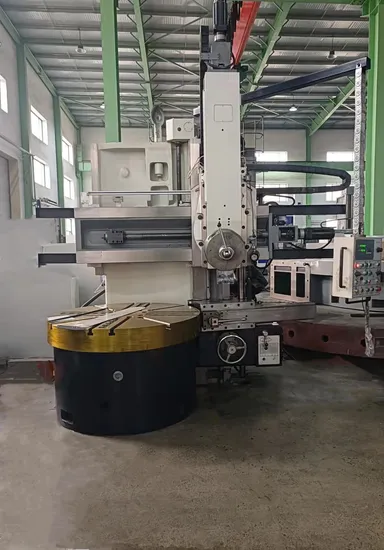

C5116 Metal Heavy Duty Vertical Lathe Machine
Basic Info.
Model NO.
C5116
Type
Vertical Lathe
Processing Accessory
Chuck CNC Lathe
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Working Table Diameter
1400
Max. Height of Work-Piece
1500
Max. Weight of Work-Piece
5t
Working Table Max. Torque
25
Power of Main Motor
30
Weight of Machine(Approx.)
12.7t
Vertical Tool Post Cutting Force
25
Transport Package
Wooden Case
Specification
CE ISO900 rohs
Trademark
WELLON
Origin
Tengzhou China
Production Capacity
50 PCS/Month
Product Description
Product Parameters1. This machine is suitable for machining of all kinds of industries. It can process external column face, circular conical surface,head face, shotted,
severance of car wheel lathe.
2. Working table is to adopt hydrostatic guideway. The spindle is to use NN30( Grade D) bearing and able to turn precisely,Bearing capacity of bearing
is good.
3. Gear case is to use 40 Cr gear of gear grinding. It has high precision and little noise. Both hydraulic part and electrical equipment are used famous-brand
products in China.
4. Plastic coated guide ways are wearable.Centralized lubricating oil supplying is convenient.
5. Foundry technique of lathe is to use lost foam foundry (short for LFF) technique. Cast part has good quality.
| Parameter | C5116 | Unit |
| Max. turning diameter of vertical tool post | 1600 | mm |
| Max. turning diameter of side tool post | 1400 | mm |
| Working table diameter | 1400 | mm |
| Max. height of work-piece | 1500 | mm |
| Max. weight of work-piece | 5 | t |
| Working table range of rotation speed | 5-160 | r/min |
| Working table step of rotation speed | 16 | step |
| vertical tool post cutting force | 25 | kn |
| Working table Max. torque | 25 | Kn. m |
| Horizontal travel of vertical tool post | 915 | mm |
| Vertical travel of vertical tool post | 800 | mm |
| Swing angle of vertical tool post | 30 | degree |
| Tool bar section size | 30*40 | mm |
| Power of main motor | 30 | kw |
| Weight of machine(approx.) | 12.7 | t |
| Dimensions of machine (L*W*H) (approx.) | 2662*2800*3550 | mm |
Packing size
| Box Name | Size approx. (L x W x H) (M) |
| lathe bed, gearbox | 3200x 1750 x 1700 |
| working table, base of table | 1600 x 1600 x 1200 |
| crossbeam, vertical tool post, motor | 2800 x 1750 x 1200 |
