Plastic/Wood/Solid Waste/Tire/Waste Fabric/Mattress/Municipal Waste Shredder

Product Description

Product Description

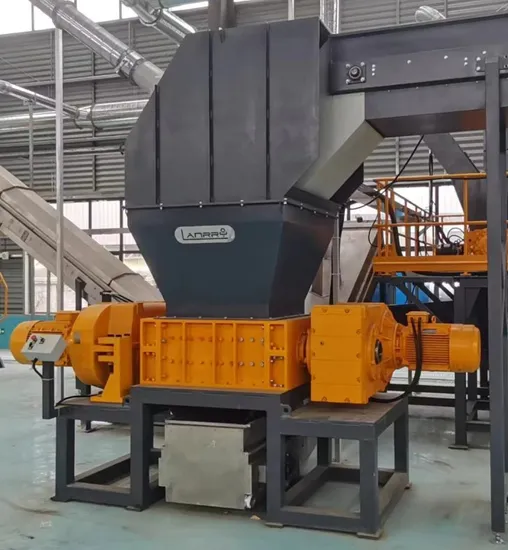

A Double Shaft Shredder is mainly composed of a moving knife roller (spindle + blade), stator-knives, a carrying box, box support, a feeding system, a hydraulic push system, a power system, and an electrical control system. Due to its low speed and high torque, it is available for harder or bulkier materials, such as wood, tires, and waste appliances.
Our double shaft shredders have the following features:
1-The blade is made of the high alloy 42CrMo, which has high strength and toughness and is difficult to break.
2-The blades of the K-rotor and D-rotor are made of D2, and the main body is made of 42CrMo.
3-The main electrical components are manufactured by well-known companies.
4-Automatic protection is designed to avoid machine overload and jamming.
5-High torque, low speed, low noise, and high efficiency.

There are 3 types of screens available: standard-rotor,K-rotor (detachable), and KD-rotor (detachable).
Detailed Photos
Product Parameters
Small Double Shaft Shredder

Model/Item	LT3040	LT3080
Dimension L/W/H(mm)	1892X910X1911	3018X1367X1911
Cutting Chamber C/D(mm)	410X470	810X470
Main Motor Power(KW)	7.5	7.5+7.5
Weight(KG)	1500	2400

Medium Double Shaft Shredder

Model/Item	LT4580	LT45100	LT45120
Dimension L/W/H(mm)	2940x1816x2270	3275x1946x2275	3416x1946x2275
Cutting Chamber C/D(mm)	812x736	1012x736	1213x736
Main Motor Power(KW)	15+15	22+22	22+22
Weight(KG)	3700	4100	4500

Model/Item	LT50100	LT50130	LT50160
Dimension L/W/H(mm)	3334x1866x2670	3716x2234x2670	4674x1770x3765
Cutting Chamber C/D(mm)	984x948	1324x948	1624x948
Main Motor Power(KW)	37+37	45+45	45+45
Weight(KG)	6500	8700	9200

Heavy Double Shaft Shredder

Model/Item	LT65130	LT65180	LT80180	LT80210
Dimension L/W/H(mm)	4187x2060x2702	5170x1866x3905	5404x2404x3746	5297x2714x3537
Cutting Chamber C/D(mm)	1612x1006	1812x1206	1812x1490	2112x1510
Main Motor Power(KW)	55+55	55+55	75+75	75+75
Weight(KG)	12800	13600	20200	23200
