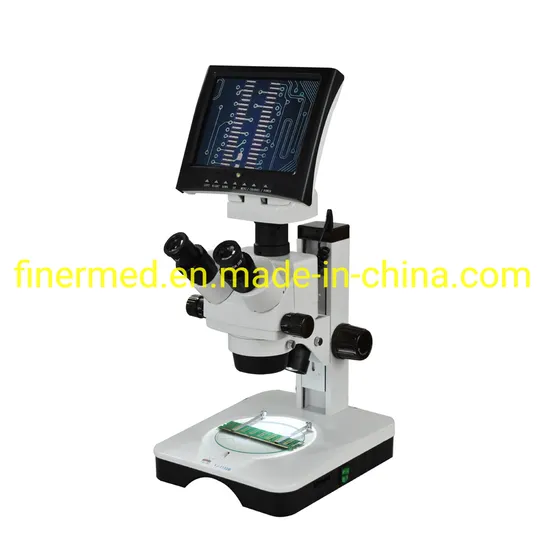

Stereo Laboratory 40X 1000X Digital Biological Microscope with LCD Display Screen Top
| US$1.00-2.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Microscope
Magnification
>1000X
Type
Biological
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
Without Stereoscopic Effect
Kind of Light Source
Ordinary Light
Shape
Rectangular Prism
Usage
Teaching, Research
Principle
Optics
Principle of Optics
Differential Interference Contrast Microscope
Transport Package
Individually Plastic Case and Gift Box
Specification
ISO, CE, FDA
Trademark
OEM
Origin
China
HS Code
901890100
Production Capacity
5000sets/Month
Product Description
ED display with special connector can be used for biological microscope and stereo microscope,after installing,can observe the slides and objects easily, especially for industrial parts' checking,can reduce the visual fatigue and improve checking efficiency| CCD Technical Date: | |
| Device Dimension | 1/3" |
| Horizontal Resolution | 700TVLine |
| Pixels | 976(H)X582(V) |
| LED Technical Date: | |
| Display Dimension | 800X600 |
| Color | 16,777,216 color |
| Highest Mode | 1024X768@75Hz |
| Color System | PAL/NTSC4.43/NTSC3.58/SECAM |
| Microscope Specification: | |
| Eyepiece | WF10X/18mm (optional:WF16X) |
| Objective | 45mm DIN archromatic objective 4X,10X,40X,100X |
| Viewing Head | Trinocular head,30° inclined,360° rotatable |
| Total Magnification | 40-1600X |
| Mechanical Stage | 125X125mm,moving range:X-Y:60X40mm |
| Condenser | ABBE condenser:N.A.1.25,2-30mm iris diaphragm and 32 filter |
| Focusing adjustment | coaxial coarse and fine focusing adjustable mechanism:14mm |
| Illumination | built-in adjustable brightness 1W LED |
2
| ITEMS | CONTENS | QUANTITY |
| 1 | Main Body | 1SET |
| 2 | Eyepiece WF10X, P16X | 2PCS APIECE |
| 3 | Objective 4X 10X 40X 100X | 1PC APIECE |
| 4 | Reflecting Mirror | 1PC |
| 5 | Spare Lamp | 1PC |
| 6 | Spare Fuse | 1PC |
| 7 | Cedar Oil | 1BOTTLE |
| 8 | Operation Instrument | 1COPY |
6.MAINTENCE:
1.The microscope is the same as other optical instrument. Need to be kept in cool, dry, dustless and acidless place. The instrument should be covered with dust guard after using.
2.Never disassemble the lens because they are corrected stringently. If there is stain on the lens, it can wipe out by alcohol, but you should pay attention not seep it into the inside of objectives so as not dissolve glues. Dust on the lens can be wiped away by clean brush.
3.Coarse and fine focusing equipment and nosepiece are precisely constructed and should not be dismantled without authorization.
4.When not in use, keep the objectives in the objective box and cover the eyepiece tube with eyepiece tube cover.
