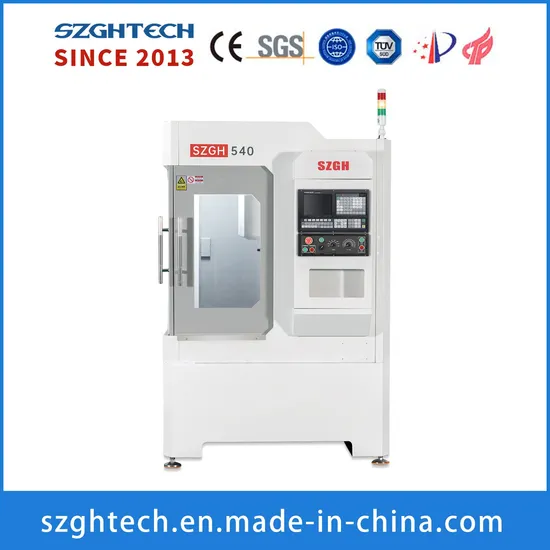

Szgh-540 CNC Machining CNC Milling Machine

Product Description

Product Otherview
High Cost Performance 3 Axis 5000 Rpm Small Milling Machine for Metal with Drilling and Tapping Fucntion
SZGH-540 CNC milling machine is suitable for 8-station processing of copper, iron, aluminum and stainless steel workpieces within 500mmX400mm. The operation is compatible with the general machining center in the market, and supports drilling, tapping, milling, engraving and other functions.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing stainless steel parts with tapping within 8mm and drilling within 10mm.Due to the small footprint, it is convenient for one person to manage multiple machines, improve per capita output efficiency and reduce processing costs.
Standard Configuration

Project		SZGH-540	SZGH-650
Processing capacity	Max. drilling diameter	Aluminum φ14mm/ Steel φ10mm	Aluminum φ40mm/ Steel 30mm
	Max. Tapping Diameter	Aluminum m10mm/ Steel m8mm	Aluminum m25mm/ Steel m20mm
	Max. milling cutter diameter	φ60mm	φ100mm
	Max Spindle speed	5000rpm/9000rpm/30000rpm	6000rpm/24000rpm
	Handle Type	BT30	BT40/BT30
	Magazine capacity	6 gangs/8 magazines	10 gangs/12 magazines
	Repeatability	0.01mm	0.01mm
	Surface engraving accuracy	±0.06mm/±0.01mm	±0.02mm/±0.01mm
workbench	Distance from table surface to spindle end	Minimum 150mm Maximum 350mm	Minimum 150mm Maximum 450mm
	Effective stroke of working surface	500mm*400mm	600mm*500mm
Travels	X-axis effective travel	400mm	500mmm
	Y-axis effective travel	500mm	600mm
	Z-axis effective travel	200mm	300mm
Feed	X-axis rapid traverse	30m/min	30m/min
	Y-axis rapid traverse	30m/min	30m/min
	Z-axis rapid traverse	25m/min	25m/min
	Various cutting suggested speeds	10m/min	10m/min
Spindle	Max.Spindle Speed	5000rpm/9000rpm/30000rpm	6000rpm/24000rpm
	Spindle Motor Power	2.6km/3.7kw/4.5kw	3.7km/5.5kw/7.5kw
	Spindle type	mechanical spindle/ electric spindle	mechanical spindle/ electric spindle
	Spindle taper	BT30	BT40/BT30
Dimensions	Dimensions	1350*1050*2050mm	1650*1800*2450mm
	Total Weight	1900kg	2900kg

Machine tool specifications and component items		SZGH-540	SZGH-650
Part Specifications	Screw	25mm Taiwan precision p grade	32mm Taiwan precision p grade
	Guide rail	25mm Taiwan Precision C3 Grade	32mm Taiwan Precision C3 Grade
	Spindle	BT30 spindle	BT40/BT30 spindle
	Feeding servo	X.Y750w,&1.2kW	X.Y1.2kw,&1.5kW
	Spindle servo motor	2.6kW/3.7kw/4.5kw	3.7kW/5.5kw/7.5kw
	Tool magazine	6 /8 magazines	10/12 magazines
	Base form	1200kg Heavy-duty anti-deformation patented base	1800kg Heavy-duty anti-deformation patented base
Optional 4 axis	4 axis center height	125mm/170mm	125mm/170mm
	4 axis motor power	0.75kw/1.2kw	0.75kw/1.2kw
	4 axis system	SZGH	SZGH
	4 axis servo	SZGH	SZGH
Optional 5 axis	5 axis center height	160mm	160mm
	5 axis motor power	0.4kw/0.75kw	0.4kw/0.75kw
	5 axis system	SZGH	SZGH
	4 axis servo	SZGH	SZGH

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.

Optional Accessories
Similar Products
Application
Company Introduction
Brief Overview
1. We are a company specializing in the manufacture of CNC systems, turning and milling machine machines, and industrial robots.Since its establishment, we have more than 10 years of experience, and we have successfully exported our products to all countries in the world. Our company is committed to providing high-quality, high-performance machinery and equipment to meet the needs of customers. 2. As a technology company, our products cover the fields of CNC systems, mini CNC turning machines, turning and milling machines, and industrial robots. We use state-of-the-art technology and innovative design concepts to continuously push the industry forward. Our team consists of a group of experienced and skilled engineers and experts with in-depth knowledge and expertise in the field of mechanical engineering and automation.
Advantages of our company
1) High-quality products: We are committed to providing high-quality machinery and equipment, using advanced manufacturing technology and strict quality control to ensure the reliability and stability of products. Our products are rigorously tested and quality verified to ensure compliance with the highest industry standards.
2) Technological innovation: We continue to pursue technological innovation and research and development, leading the development trend of the industry. We work with research institutes and partners to research and develop new technology applications to provide customers with more efficient and intelligent solutions.
3) Customer customization: We fully understand the unique needs of each customer and provide customized solutions. Our team of engineers works closely with our customers to ensure that our products and services meet their specific requirements and provide the best solutions.
4) Global market expansion: We have successfully exported our products to all countries in the world, and established an extensive international sales network. We have an in-depth understanding of the needs and trends of each market and provide our customers with global support and services.
5) After-sales service: We attach importance to long-term cooperative relations with customers, and provide comprehensive after-sales service and technical support. Our after-sales team is always ready to answer customers' questions and provide training and maintenance support to ensure customer satisfaction and the normal operation of equipment.
FAQ
Q1. Who are we?
A1: We are based in Guangdong, which provides CNC total solutions& cnc lathe machine&milling machine
technical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
Q2. How can we guarantee the quality?
A2: Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
Q3. How does your CNC machine work with my production schedule?
A3: Our machine tools use our complete set of CNC systems, and we can also change the corresponding configuration according to your
needs, such as turrets, kits, etc., to solve the trouble of debugging and refitting after you receive the goods in advance.
Q4. What services can we provide?
A4: 1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Italian, and so on.
Q5.What is control mode for feeding Axes?
A5: Our Normal CNC support Pulse+Direction signals for feeding axes drivers; Our Modbus CNC support EtherCAT /Powerlink modbus for feeding axes drivers.
Q6.What is control mode for spindle axes?
A6: There are dual analog voltage outputs(0~10V) for speed control of spindle axis. Our Modbus CNC also support Pulse speed spindle, also can use pulse to control speed of spindle servo system.

Q7.Does your cnc support ATC function?
A7: Yes, our CNC lathe system can support most of turret, like Eletric turret,servo turret,counting turret,etc; We can edit special macro program & plc for special turrets also; And our CNC milling system support Linear type , umbrella type, arm type, turret type tool magazines.
Q8.Does your cnc support booting logo exchange?
A8: Yes, no problem.
