Forging Steel Rail Gantry Crane End Carriage Wheel

Product Description

Production Description:
About the customized forged casted crane wheel for all kinds of uses, our company Ruika is the professional manufacturer of the crane wheel, forged wheel, cast iron wheel, polyurethane wheel, train wheel, steel crane wheel set which with more than 15 years designing and producing experience. With our own forging workshop, machining workshop, heat treatment workshop, we can provide all kind of wheels with different materials, such as ZG430640 cast steel, 60#,65 # , 65Mn, 42CrMoA or according to your demands.

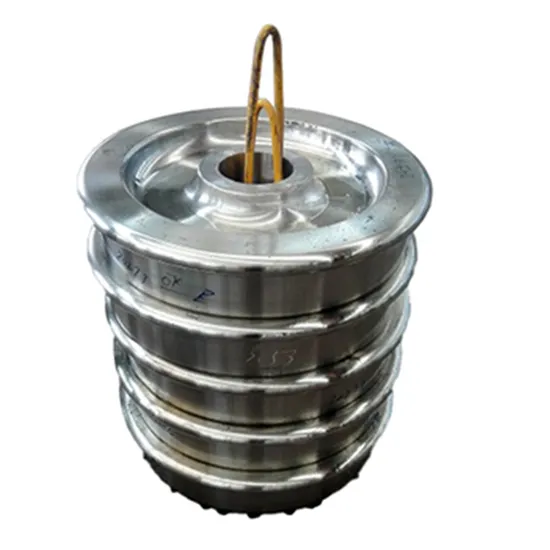

Product Display:
Product Features:

High tolerance
High tensile strength
Optimum performance
Heavy Load support

-Wheel for railway freight wagon
-Wheel for locomotive
-Wheel for metro car
-Wheel for light rail vehicle
-Wheel for DMUs
Steel Train Wheels application :
* Overhead crane and gantry crane;
* Transportation carriage;
* Mill and airlines vehicle;
* Railway locomotive and train;
* Construction machinery, and so on.
Crane wheel maintenance:
The tread surface of the wheel should not have defects such as dents, trachoma, pores, shrinkage, cracks, chipping, etc., and it cannot be welded and repaired after discovery, and new Railway wheels should be replaced in time;
If there are pits on the tread, when the crane wheel diameter is ≤500mm, the pit diameter is ≤1mm; when the wheel diameter is >500mm, the pit diameter is ≤1.5mm, and the depth is ≤3mm and not more than 5, it can be used continuously;
When the relative wear difference between the two driving wheels exceeds 1‰ of the diameter, they should be heavy-duty machined to the same diameter, and the tolerance should not be less than D6.
Production Process
The tests we conduct to ensure crane wheels best quality
1. Electronic Material Testing Machine 2. Instrumented Impact Testing Machine 3. Brinell Hardness Machine 4. SEM and Spectrometer 5. Metallurgical Microscope 6. Spark Source Atomic Emission Spectrometer 7. Infrared Carton and Sulfur Analyzer 8. X Fluorescent Spectrometer 9. Electro-hydraulic Servo Material Testing Machine 10. Metallugical Microscope
PRODUCT SPECIFICATION

Rail specializes in the design, production and assembly of all types of wheels for passenger and freight rail transport including monobloc, tire-typed, elastic and low-noise wheels. The wheels we provide can meet most of the international standards, such as AAR M-208, AAR M-107, UIC 812-3, BS 5892-3, JIS E5402-2, IRS R34, TB/ T 2817. We can also customize train wheels according to the specifications and drawings provided by customers. Specification: Forging Forged steel railway wheel Material ER6,ER7,ER8,ER9,R7T,R8T,R9T,CL60 Diameter Φ500 toΦ1250mm Application Freight Wagon Wheels, Passenger Coach Wheels, Locomotive Wheels and many other industrial or mine vehicles wheels Inspection Chemical composition; UT, MT; mechanical; property; dimension check Standard IRS,BS,UIC,AAR,BN,GB,TB/T,EN QC Doc Chemical;composition;report;mechanical;properties;report;;UT;test;report;;heat;treatment;report;;dimensions;check;report. Manufacturing process: 1. Steel Melting 2. Round Billet Sawing Cutting 3. Heating 4. Phosphorus 5. Stamping Forming 6. Rolling 7. Bending Punch 8. Hot Stamping 9. Laser Measurement 10. Drop Stack 11. Roughing 12. Hardening 13. Tempering 14. Sampling 15. Pre-processing 16. Finishing 17. The Cold Print 18. Static Equilibrium 19. The Cold Print 20. Hardness Testing 21. Ultrasonic Testing 22. Magnetic Particle Testing 23. Shot Peening 24. Painting Packaging Our Services 1. OEM and customized service. 2. Full machining, primer coating, surface treatment. 3. Complete material testing process. 4. Quality control Contact us If you have any questions, pls feel free to contact us

FAQ
Q1,How to make the custom order?
a1: Please send us the detailed drawing or the specific size.
Or you can also send us the samples for reference.
Q2,How to make the payment?
A2:For the small quantity ,plesse use Paypal is more cost-efficient .
For the bulk quantity ,please use bank transfer.
Q3,How to ask for the sample?
A3: The small sample in stock , we can provide by free, but the fright is collectd. For customized samples, sample fee is needed paid in advance.
4Q,How to save ship cost?
4A: The parcel less than 100kg , via express company,like UPS/DHL/FedEx/TNT etc is the good choice for you.
The parcel more than 200kg , ship via sea is more economic consider for you.
5Q,How to make sure the quality?
5A:Check the sample first .Then we will arrange the production according to your confirmed samples.
Get the detail inspection report and goods pictures or video after production completed.

Production Processs

Company Profile
Ruika metal is one stop service for design, production, logistic delivery for metal products . professional and experienced technical and marketing team guarantee .Ruika's products competitive in international marketing, no MOQ Competitive products: rail car wheels, forging products, track materials, fasteners, bolts and nuts, screw spikes, tie plates Products usage: rail road vehicles,crane,trolley,Track Inspectors,Spike Drivers,Tie Pluggers,Tie Cranes,Spike Pullers,super claws,Screw Spikers and Spike Removers,Ride-On Plate Inserter,Rail Lifters,Rail Drills,Rail Grinders,Mobile Flash Butt Rail Welders,Railway, Port, and Industrial Cranes,Ballast regulators, track maintenance, railroad construction.
