Hot Sale Widely Used Professional Mobile Cone Crusher Machine

Product Description

Product Description

Description

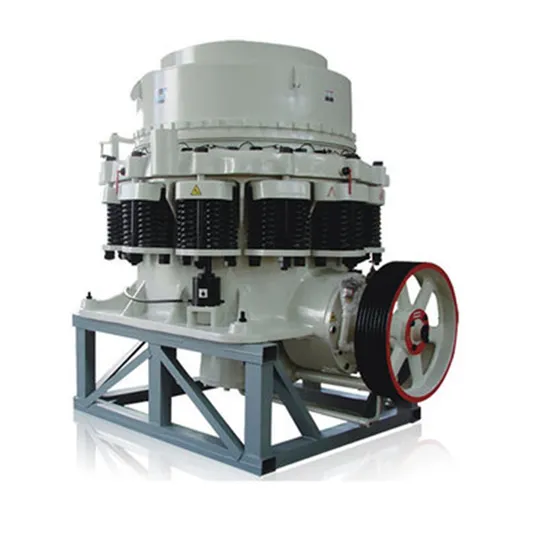

Cone crusher is generally used as a secondary crusher in a crushing circuit. Pre-crushed product (usually 3in minus depending on the cone crusher model) is fed through the top of the cone crusher and flows over the mantle. The vertical cone crusher drive shaft rotates the mantle eccentrically below the concave, or bowl liner, squeezing the product and crushing it between the mantle and concave. Cone crushers are usually run on belt drives driven by an electric motor or diesel engine. Cone crushers are used extensively throughout the aggregate and mineral processing industry.
Main Features

Features of mobile cone crusher When mobile cone crusher is overloaded due to being through crushing chamber by materials which cannot be crushed or other reasons, the spring protection system of cone crusher will be realized and the ore discharging mouth will be increased. The foreign matters will be discharged from the crushing chamber, thus realizing protection. If the foreign matters are stuck at the discharging mouth, the spring protection system will start the chamber cleaning system and continue to increase the discharging mouth so that the foreign matters can be discharged from the crushing chamber of cone crusher. Under the function of the spring, the discharging mouth will be automatically reset and cone crusher will operate normally. This series of cone crusher is divided into three types, namely coarse cone crusher, medium cone crusher and fine cone crusher. The customers can choose different type according to specific needs.
Specifications

Main specification

Model		Diameter of crushing cone (mm)	Max.feeding size (mm)	Width of discharge opening (mm)	Processing capacity (t/h)	Motor power (kw)	Swing frequency of main shaft	Total weight (t)	Dimensions(L×W×H) (mm)
PYB	600	600	65	12-25	40	30	356	5	2234×1370×1675
PYD			35	3-13	12-23			5.5	2234×1370×1675
PYB	900	900	115	15-50	50-90	55	333	11.2	2692×1640×2350
PYZ			60	5-20	20-65			11.2	2692×1640×2350
PYD			50	3-13	15-50			11.3	2692×1640×2350
PYB	1200	1200	145	20-50	110-168	110	300	24.7	2790×1878×2844
PYZ			100	8-25	42-135			25	2790×1878×2844
PYD			50	3-15	18-105			25.3	2790×1878×2844
PYB	1750	1750	215	25-50	280-480	160	245	50.3	3910×2894×3809
PYZ			185	10-30	115-320			50.3	3910×2894×3809
PYD			85	5-13	75-230			50.2	3910×2894×3809
PYB	2200	2200	300	30-60	59-1000	280-260	220	80	4622×3302×4470
PYZ			230	10-30	200-580			80	4622×3302×4470
PYD			100	5-15	120-340			81.4	4622×3302×4470

FAQ

FAQ
1. What is the raw material do you want to crusher?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the output size of your product?
Our engineers will suggest you the most suitable one for you according to your information.
We will give you factory price with full specification, so pls leave us an inquiry to know more details about price, packaging shipping and discount.
