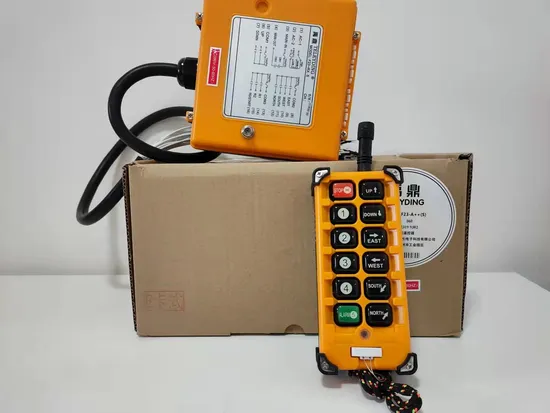

F23 Wireess Remote Contro 8 Buttons Crane Industrial Remote Control

Product Description

Product Specifications F23 Series Remote Control 1.It include Wireless remote control transmitter and receiver 2.It has features of small size, high versatility, waterproof, falling and dust-proof. 3.Users can move conveniently and safely, and it can provide safe, efficient and convenient operation mode. 4.Low cost, wide application. 5. F23 series adds 4 multi-function buttons, which can set different functions as required,so as to be applicable to a variety of different working scenarios.

F23-A++ Transmitter parameters
Shell	Glass Fiber Reinforced Nylon
Protection grade	IP65
Frequency range	VHF:310-331MHz
Transmitted power	<10dBm
Emitter power supply	2AA
Safety code	32 bit
Temperature	Normal
Control distance	100 meters
Warranty	12 months
Size	164*75*46 cm
F23-A++ receiver parameters
Shell	Glass Fiber Reinforced Nylon
Protection grade	IP65
Frequency range	VHF:310-331MHz
Receiver sensitivity	-110dBm
Receiver power supply	24V/36V/220V/380V AC
Safety code	32 bit
Temperature	Normal
Out contector capacity	8A sealed relay outout (with AC 250V/10A relays, 10A fuse)
Cable length	1.3m (Other length can be customized)
Size	168*166*93 mm

No.	Remote Control	Application
1	F21 series	Single speed hoist, bridge crane, gantry crane
2	F23 series, F24series	Double speed hoist, bridge crane, gantry crane
3	F24-60 model	European type bridge crane, gantry crane

Products Description Company Profile Certifications Packing&Shipping 1.Environmental protection carton packaging is adopted to effectively protect the products. 2. Transported by sea, air and international express.
