Fused Silica Lump 0-50mm Quartz for Amorphous Refractories and Refractory Materials

Product Description

Fused Silica First Grade
High purity quartz stone in Lianyungang and Xuzhou area was selected as raw material. After pickling treatment, the crystalline silica was transformed into amorphous silica with a small amount of impurity at 1800ºC high temperature in the resistance furnace. After special mechanical processing, screening, iron removal after the formation of blocks, particles and powder products.

I. Characteristics
1. Near zero thermal expansion, extremely low thermal conductivity.
2. Excellent thermal stability.
3. High purity (the SiO2 content is above 99 %).
4. Chemical properties are stable.
5. General mechanical production, particle size for angle type.

II. Main Areas of Application
Low grade quartz nozzle
Low grade refractories, charge

III. Basic Parameters
Bulk Density :2.2 g/m3
Hardness :7
Softening Point :1500°C
Melting Point :1580°C
Coefficient of Thermal Expansion :0.1
PH value :6

IV. Chemical Composition

	Guaranteed Value	Typical Values
SiO2	99%min	99.22%
Al2O3	500ppmmax	360ppm
Fe2O3	500ppmmax	150ppm

V. Availability Specifications
1. Block 0-80 mm
2. Granular

8-5mm	5-3mm	3-1mm	1-0mm
20-40 mesh	40-70 mesh	70-120 mesh

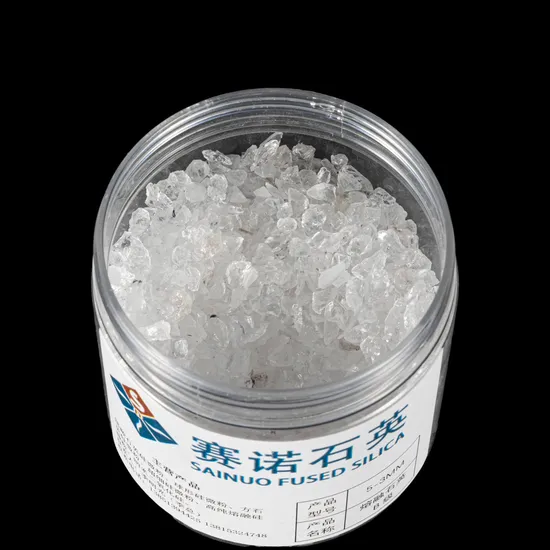

Can be produced according to customer granularity requirements Detailed Photos Fused Silica First Grade (also known as A)
High purity quartz stone in Lianyungang and Xuzhou area was selected as raw material. After pickling treatment, the crystalline silica was transformed into amorphous silica with a small amount of impurity at 1800ºC high temperature in the resistance furnace. After special mechanical processing, screening, iron removal after the formation of blocks, particles and powder products. Certifications
