Kx5600g Vet Ultrasound Scanner Pregnancy Checking Large 7 Inch Monitor

Product Description

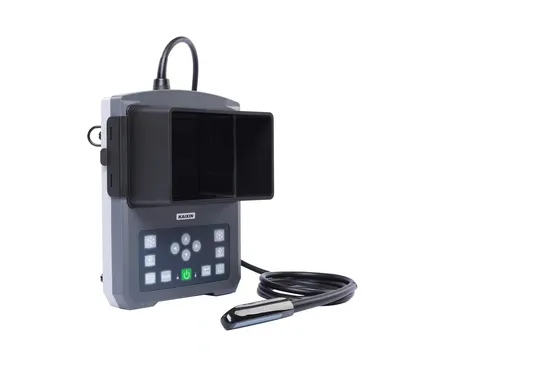

KX5600G Veterinary Ultrasound Scanner

1. Application:
KX5600G can be widely used in normal ultrasound diagnosis like abdomen and pregnancy.
Main market:big animals' pregnancy check and follicular aspiration (Bovine, equine, ovine, canine, feline, goat, swine and llama).
2. Feature:1.1kg weigh. Smart and light.High-capacity lithium Battery ,more than 6 hours work. sunshine cover, suitable for use in outdoor strong sunshine.Available for left/right hand alternative use, eliminating operate fatigue.Multiple use method: hand-held, chest hanging, back hanging , waist hanging, ect.Optional professional ultrasound goggle, convenient for outdoor use, meet different need.Have soft rubber coat, splash-proof, dust-proof.8. 2 kinds filter function, 7 kinds compress curve, 100 frames image permanent storage, 256 frames cine loop, Automatically calculate the Back fat and Lean percentage of swine.
3. Tech Specification:

Monitor	7" high resolution LED display, with High brightness, high contrast, wide viewing angle, suitable for outdoor use
Display mode	B,2B,4B ,B/M,M
Gain	0~127dB
Contrast	27~90dB
Magnification	0.8,1.0,1.2,1.5,1.6,2.0,2.4,3.0
Storage	100 frames permanent storage
Cine loop	256 frames
Normal measurement	Distance, circumference, area (trochoid or ellipse), volume, etc.
Cardio measurement	Depth, slope, heart rate, cycle
OB measurement	Cattle, dogs, horses, pig, cats, goats, camels and sheep and pre-gestational age birth
Specifical for Swine	Back-fat and lean automatic calculation function /span>
Grid measurement	6 different(none,point grid,line grid, 10mm point ruler, 2mm point ruler, 10mm&2mm point ruler)

4. Configuration:
4.1 Standard configuration:

1	Main unit: 1 pc
2	6.5MHz linear rectal probe : 1 pc
3	Power adapter: 1 pc
4	Internal lithium battery: 1pc
5	Sunshine cover : 1 unit (A,B,C three sections adjustable)
6	Black plastic suitcase : 1 pc
7	Base Charger, belt, probe socket spatula: 1 pc for each

4.2 Optional Configuration:

1	4.0Mhz multi-frequency convex rectal Probe
2	6.5MHz multi-frequency micro-convex probe
3	3.5MHz multi-frequency convex probe
4	7.5MHz multi-frequency linear probe
5	3.5MHz Backfat probe
6	Lithium Battery (5500mAH)
7	Leather Case saddlebag
