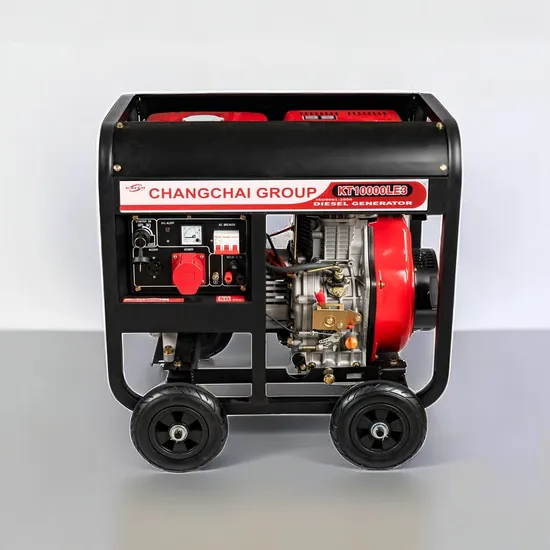

Open Type 5kw 5kVA 186fa Three Phase AC Alternator Diesel Generators

Product Description

Our Advantages
1. Strong technology and high-quality personnel, continuous innovation and perfect management.2. Diesel generator set with CE certificates3. All spare parts pass Strict and Accurate raw material detection(IQC); All finished products detection Match ISO standard4. Complete production procedures, strict test center, good package5. Warranty: Running 500 hours or one year. Can support free spare parts for repairing during warranty time also low than market price spare parts out of warranty time!6. Any questions. Pls do not hesitate to contact our salesperson
Product Parameters

Model	Open type diesel generator
	2KW	3KW	5KW	5.5KW	6KW	7KW	8KW	10KW	11KW	15KW
	KT2500L(E)	KT3500L(E)	KT6500L(E)	KT7500L(E)	KT10000L(E)	KT12000L(E)	KT15000L(E)	KTS12000E	KTS15000E	KTS18000E
Frequency(Hz)	50 /60	50/60	50/60	50/60	50/60	50/60	50	50/60	50/60	50/60
Rated speed(rpm)	3000/3600						3000	3000/3600
Voltage(AC)(V)	120, 220, 230, 120/240, 220/380							220, 220/380
Voltage(DC)(V)	12	12	12	12	12	12	12	12	12	12
Rated Current(A)	7.4	12.2	19.6	21.7	28.2	30.4	36.9	45	50	68
Engine speed(rpm)	3000 /3600	3000 /3600	3000 /3600	3000 /3600	3000 /3600	3000/3600	3000	3000/3600	3000/3600	3000/3600
Phase NO.	Single phase, Three phase
Power facotr(cosφ)	1/0.8
Starting system	Recoil manual start/optional electric start						electric start
Rate power(Kw)	1.8/2.0	2.8/3.0	4.5/5.0	5.0/5.5	6.0/6.5	6.5/7.0	8.5	10.0/11.0	11.0/12.0	15.0/16.0
Max power	2.0/2.3	3.0/3.2	5.0/5.5	5.5/6.0	6.6/7.2	7.1/7.7	9.3	10.5/11.5	11.5/12.5	15.5/6.5
Engine model	KT173	KT178F	KT186FA	KT188F	KT192F	KT195F	KT1100F	KT2V88F	KT2V92F	KT2V95F
Type	Single cylinder,vertical,direct injection,4-stroke,air cooled							V-Two cylinder, 4-stroke, direct injection, air-cooled
Excitation mode	Self-excitation&constant voltage(AVR)
Bore × Stroke(mm)	70*55	78*62	86*70/86*72	88*75	92*75	95*75	100*85	88*75	92*75	95*88
Displacement(cc)	211	296	406/418	456	498	531	667	912	997	1247
Compression Ratio	20:01	20:01	19:01	19:01	19:01	19:01	20:01	19.5:1	19.5:1	19.5:1
Fuel Tank Capacity(L)	15	15	15	15	15	15	15	15	15	15
Continuous running time	14	8.5	5.5	5.5	5.5	5.5	5	5	5	5
Packing dimensions(mm)	640*480*530	655*480*530	720*492*655	720*492*655	720*492*655	720*492*655	780*585*710	870*630*880	870*630*880	870*630*880
Gross Weight(KG)	53	70	100	100	100	100	130	195	200	210
Lube-oil brand	CD grade or SAE10W-30, 15W-40
Continuous running time	14	8.5	5.5	5.5	5.5	5.5	5	5	5	5

Detailed Photos

Company Profile
The company is the first to abain the second generation of single-cylinder air cooled diesel engine production license enterprises in 2004. We focus, Concentrate, Specialize in air-cooled diesel power and supporting units for 16 years, and achieved excellent results. Now the annual production capacity of 100,000 units of diesel engines, supporting diesel generators of 30,000 units, the annual export volume of the forefront of the industry, the company has got both ISO9001 International Quality Management Systerm Certificate, CE certificate.
With Changchai Group Kaito power brand, strong technology and high-quality personnel, continuous innovation and perfect management systerm, the company can provide first-class products and high-end services and reputation in domestic and abroad. Product are exported to the United States, Europe, South America, Africa, Australia, the Middle East and Southeast Asia in various regions of the world.

FAQ
1.Q:How about guarantee? A: within 1year after goods is discharged in the destination. We will supply the consumables if it broken under normal using. For example, fuel cock,spark plug,recoil starter,etc2.Q:What is the material of your products? A: Iron,Steel,plastic,etc. 3.Q:What is you deliver time ? A: Within 15-20days after got your T/T deposit.4.Q: What certificate do you have for the engine diesel generator set ? A: There are ISO 9001:2008, CE etc.5.Q: If I want to be your products distributor in our country, what is your distribution policy? A: Kaito power welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.
