High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6m Pipe Shredder Machine

High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6m Pipe Shredder Machine

US$100,000.00-150,000.00 1 Set (MOQ)

Basic Info.

Model NO.
WPG1000
Material Processed
Plastic Bottle
Plastic Type
Plastic/Lump/Pallet/Pipe
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE, ISO14001, Ukca
Main Shaft Length(mm)
1000
Main Shaft Tactical Diameter(mm)
1050
Main Shaft Speed(Rpm)
36
RAM Travel(mm)
6500
Rotor Blades(PCS)
105
Fixed Blades(PCS)
3
Motor Power(Kw)
2*45
Hydraulic Power(Kw)
15
Screen Mesh Diameter(mm)
50
Cutting Chamber Dimension(mm)
1050*700
Overall Dimension(L*W*H)(mm)
11500*3900*3600
Weight(Kg)
14000
Transport Package
Plastic Film Winding Packaging
Trademark
WOBIDE
Origin
China
Production Capacity
100/Month

Product Description

Product Description
Model
WPG800
WPG1000
WPG1200
WPG1400
Main Shaft Length(mm)
800
1000
1200
1400
Main Shaft Tactical Diameter(mm)
850
1050
1250
1450
Main Shaft Speed(rpm)
40
36
36
18
Ram Travel(mm)
6500
6500
6500
6500
Rotor Blades(pcs)
57
105
135
160
Fixed Blades(pcs)
2
3
4
5
Motor Power(kw)
2*37
2*45
2*55
2*75
Hydraulic Power(kw)
11
15
18.5
22
Screen Mesh Diameter(mm)
50
50
50
50
Cutting Chamber Dimension(mm)
850*700
1050*700
1250*700
1450*700
Overall Dimension(L*W*H)(mm)
11300*3700*3400
11500*3900*3600
12000*4100*3800
12200*4300*4000
Weight(kg)
11000
14000
17000
21000

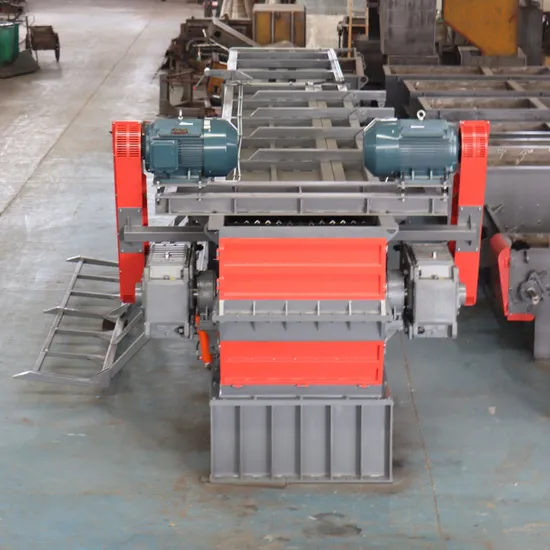

Pipe shredder for high-caliber large-diameter plastic PE, PP, PVC, HDPE solid wall pipe, bundles of small pipes and materials, developed special shredders. This model has a unique design of the level of horizontal feeding in the box, not the length of pipe restrictions. According to the maximum length of the customer pipe to determine the machine model.
Can also be used in accordance with the material requirements with plastic crusher, milling machine, composed of a complete set of plastic refining production line. High efficiency, simple and safe operation.
Detailed Photos
Application
More Products

Company Profile

FAQ

1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
