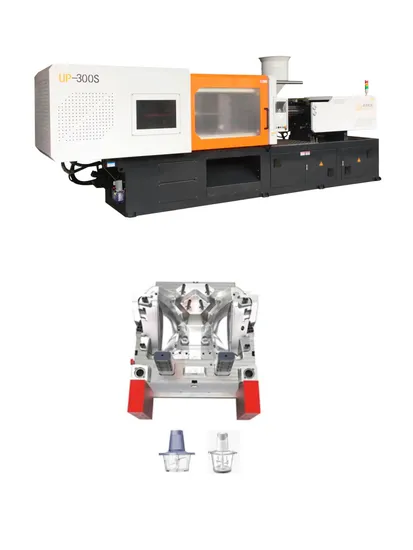

Industrial Plastic Machine Parts with Fitting Pipe System up-300t
| US$29,000.00-32,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-300T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
18.5t
Tank Volume
400L
System Pressure
16MPa
Transport Package
Film Packing
Specification
6.3*1.75*2.37
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Product Description
Ningbo Union Power Machinery Co., Ltd.
Welcome to Ningbo Union Power Machinery Co., Ltd.
Our factory, located near Shanghai in Ningbo, specializes in manufacturing injection molding machines, injection molds, and auxiliary equipment. We offer a wide range of injection molding machines, from 50 tons to 3000 tons, with a tensile resistance of up to 40000 g.
Machine Family:
A) Standard Injection Molding Machine
B) PVC Injection Molding Machine
C) PET Injection Molding Machine
D) Two-Color Ejector
E) Fully Hydraulic Injection Molding
F) All-Electric Injection Molding Machine
G) China Servo Injection Molding Machine
Key Specifications:
A. Modulus of Capacitance: Includes guide pillar position, size, maximum allowable modulus of capacitance, and minimum closure thickness.
B. Nozzle Parameters: Spherical diameter, aperture, outer diameter, extension length, and positioning aperture.
C. Code Mold Parameters: Mold hole and slot size.
D. Ejection Mechanism: Ejection point position, ejector rod diameter, ejection force, and stroke.
E. Mold Opening Stroke and Maximum Opening Distance.
Choose Ningbo Union Power Machinery Co., Ltd. for high-quality injection molding solutions that meet your production needs.
| Technical Parameters | Model UP-300T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 60 | 65 | 70 |
| Shot Volume (cm3) | 806 | 946 | 1096 |
| Injection weight (g) | 725 | 851 | 987 |
| injection pressure (Mpa) | 170 | 145 | 107 |
| Screw speed (rmp) | 220 | ||
| Clamping Unit | |||
| Clamping force (KN) | 3000 | ||
| Open stroke (mm) | 600 | ||
| Max Mold height (mm) | 620 | ||
| Min Mold height (mm) | 200 | ||
| Space between tie bars(mm) | 620*620 | ||
| Ejector force (KN) | 70 | ||
| Ejector stroke (mm) | 150 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 30(29) | ||
| Heating power (KW) | 18.5 | ||
| Machine dimension (M) | 6.3*1.75*2.37 | ||
| Machine weight (T) | 9.3 | ||
| Oiltank cubage (L) | 400 | ||
