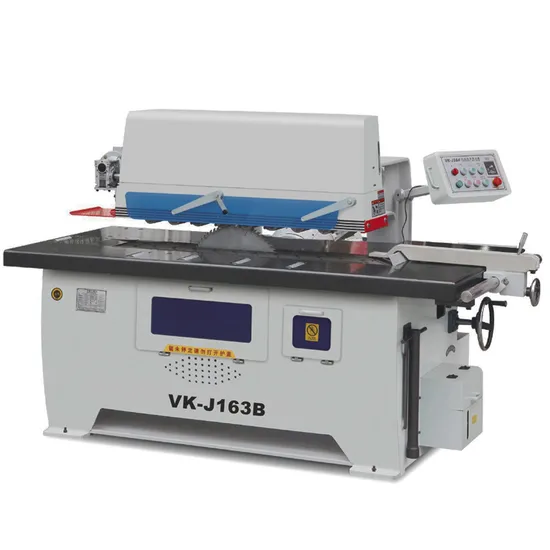

Woodworking Single Rip Cut Saw Machine

Product Description

Woodworking Single Rip Cut Saw Machine
Product Description

Model	VKJ163
Max. Saw balde diameter	355 mm(14")
Min.Saw balde diameter	305 mm(12")
Max.working thickness	90 mm
Max.cutting width	500 mm
Spindle diameter	50.8mm
Spindle speed	3000r/min
Feeding speed	10~30m/min
Main motor power	7.5 kw
Feeding motor power	1.5kw
Upper beam lifting motor power	0.37 kw
Total power	9.37KW
Working table	1800×985mm
Overall dimension	2060×1500×1350 mm

Adjust
1.Adjustment of saw shaft
According to the wood and quality requirements to be processed to choose a good saw blade, in the case of high precision, should choose the number of teeth more slices better, and according to the size of the blade diameter and sawing depth, the blade spindle Up and down to adjust.
Adjustment method: Loosen the screw nut and locking handle on the hand wheel on the rear of the spindle holder, the pulsating handwheel, the clockwise direction is raised, the counterclockwise direction is lowered, and the lowest point of the saw blade is not in contact with the track, Otherwise it will wear the saw blade, the height is adjusted, the hand wheel on the cap and lock the handle lock.
2.Adjust the pressure wheel seat
According to the thickness of the processing of wood, you can adjust the pressure wheel, loosen the pressure wheel seat lock the handle, shake the lift hand wheel, you can adjust the pressure wheel, clockwise for the rise, counterclockwise to decline, Until the roller can be lower than the wood about 2-2.5mm, and then press the wheel seat lock handle tightened to use.
3.Feeding speed adjustment
According to the wood processing accuracy and wood wood can adjust the speed of the feeding track (adjust the handle in the machine tool control box on the underside), and then release the locking handle, dial the adjustment handle, adjust the feeding speed, and then lock Tight handle
4.Use and regulation of lubricating oil pump
Lubricant pump main power supply starts when the pump oil, and then according to the set time and the amount of oil supply automatically stop the oil supply.
