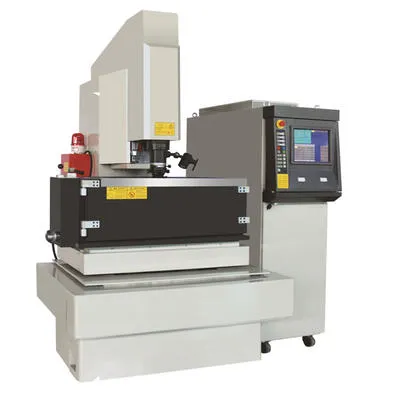

CNC EDM Spark Machine Forming Machine

CNC EDM Spark Machine Forming Machine

US$32,000.00
1-2 PC
US$33,000.00
3+ PC

Basic Info.

Model NO.
CNC325
Application
Metal
Process Usage
Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.005mm
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Key Selling Points
Long Service Life
Applicable Industries
Machinery Repair Shops, Manufacturing Plant
Showroom Location
Viet Nam, Philippines, Peru, India, Russia, Uzbek
Core Components
Motor, Pump, CNC System, Casting
After Warranty Service
Video Technical Support, Online Support, Spare PAR
Local Service Location
Turkey, Viet Nam, Philippines, Peru, India, Mexico
Weight
2800kg
Voltage
220/380/415/440V/50Hz-6050Hz
Transport Package
Standard Export Packing, with Wooden Box
Specification
350*250*270
Trademark
LINGFENG
Origin
China
HS Code
8456301090
Production Capacity
300 PCS/Per Month

Product Description


Main Features:
Adaptive discharge machining process.
High speed lifting and lifting tool height control.
Spindle fixed point control, discharge gap detection
Groove oil level control.
Fire-proof control, Automatic alarm device.
Carbon deposit prevention function Ø Touch screen 15" TFT-LCD.
USB for data input and output.
Special processing circuit for cemented carbide.
AUTO processing function unit.
Automatic positioning function unit.
High speed and precision machining system.
Automatic Arc cleaning circuit.
Bulit-in database system.
CNC instruction, support G code, ISO code.
With memory and Reset after power off .
Error message indication function.
Automatic measurement.
Precise edge and plane machining
Finish the servo system of
X Y Z, Panasonic AC servo motor.
X Y Z, resolution 0.4um, Minimum drive unit 1um..
Stainless steel edge for wear resistant.
LINFENG CNC Technology Co., Ltd, one of the professional EDM machine manufacture, specialized in developing and producing from 2002, start exporting from 2008. We have exported to more than 50 countries so far.
Our development is originated from untiring pursuit and unceasing innovation, always adhere to the operation philosophy: Quality Priority, Innovative development, customer oriented, sustainable management. Also never stop to working with university, Institute to develop and improve discharge system and control system.
With about 20 years developing, LINGFENG can supply full range of EDM including: High speed economy WEDM ( EDM wire cut machine) Multi-cut precise WEDM ( EDM wire cut machine) Special WEDM, such as Bid WEDM with Separated bed, Multi head WEDM Sand wire cutting machine EDM Die Sinking machine ( ZNC and CNC) EDM drilling machine ( ZNC and CNC) We are ISO9000 certified enterprise, we not only supply machine to customers, also supply complete solution and training, service, advise for customers. LINFENG always grow with our partners including suppliers, dealers, end users. Create the value and future hand in hand.

FAQ: Q1: Are you a manufacturer?
A: Yes, LINFENG CNC Technology Co., Ltd, one of the professional EDM machine manufacture, specialized in developing and producing from 2002, start exporting from 2008. We have exported to more than 50 countries so far.
Q2: What are your main products?
A: With about 20 years developing, LINGFENG can supply full range of EDM including:
High speed economy WEDM ( EDM wire cut machine)
Multi-cut precise WEDM ( EDM wire cut machine)
Special WEDM, such as Bid WEDM with Separated bed, Multi head WEDM
EDM Die Sinking machine ( ZNC,PNC and CNC)
EDM drilling machine ( ZNC and CNC)
Q3: How to place an order?
A: Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our
catalogue, quotation and other information you need.
Q4: How about the delivery time?
For Standard model, we can make delivery in 15 days after payment. For special model, we can make delivery in 25 days.
Q5: What service we can offer?
A:1). 12 months warranty;
2).Technical support online sevice;
3).Technical files serice;
4).On-site traning service;
5).Spare parts replacement and repair service;
6).All of the questions will be replied within 24 hours.
