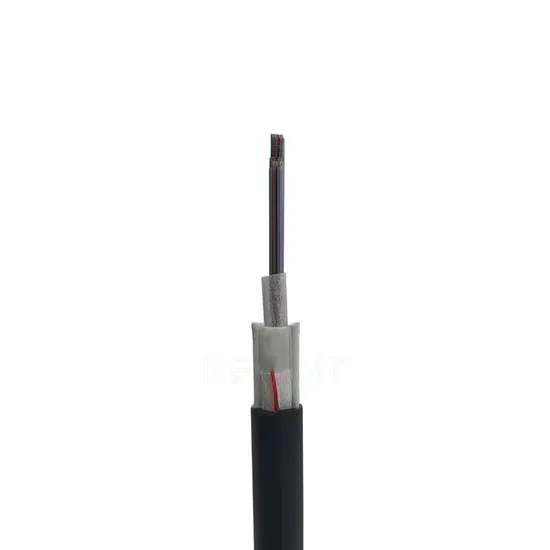

Kexint 24/48/72/96/144/288 Core Ribbon Optical Fiber Cable Duct Central Tube

Product Description

Product Description
Cable Description: Optical fiber ribbon are housed in loose tube.
Water blocking tape are used in and over the loose tube to prevent it from water ingress.
FRP is used as the strength member.
Polyethylene outer sheath is extruded around the tube.

Cable type	Application
GYDXY(ALL DRY)-nB1.3&B6a1	Duct installation

n represent the number of fibres in the cable. Optical fibre cables supplied in compliance with this specifications is capable to withstand the typical service condition for a period of twenty-five (25) years without detriment to the operation characteristics of the cable. Optical Fibres supplied in this specification meet the requirements of ITU-T G652D&G657A1

YOFC G.652.D
Category	Description	Specification
		Before cable	After cable
Geometrical Characteristics	Cladding diameter	125.0 ± 1.0 μm
	Cladding non-circularity	≤ 1.0 %
	Core concentricity error	≤ 0.6 μm
	Coating diameter	235~255 μm (Before Colored)
		250+/-15 μm (Colored)
	Coating/cladding concentricity error	≤ 12.0 μm
Optical Characteristics	Mode field diameter at 1310 nm	8.7 ~ 9.5 μm
	Attenuation at 1310 nm	≤ 0.34 dB/km	≤ 0.40 dB/km
	Attenuation at 1383 nm	≤ 0.34 dB/km	≤ 0.40 dB/km
	Attenuation at 1550 nm	≤ 0.20 dB/km	≤ 0.30 dB/km
	Point discontinuity at 1310nm and 1550nm	≤ 0.05dB
	Zero dispersion wavelength	1300 ~ 1324 nm
	Zero dispersion slope	≤0.092 ps/(nm2 ·km)
	Cable cut-off wavelength (λcc)	≤ 1260 nm
	Polarization mode dispersion individual fiber	≤ 0.2 ps/√km
	Polarization mode dispersion design link value (M=20, Q=0.01%)	≤ 0.1 ps/√km
	Macro-bend loss (100 turns, 30mm radius)	1550&1625nm: ≤ 0.05 dB
Mechanical Specification	Proof stress level	≥100kpsi (0.69 GPa)
	Coating strip force (peak value)	1.3~8.9N
	Dynamic Fatigue Parameter (nd)	≥20
	Fiber curl (Radius)	≥2 m

YOFC G.657.A1
Category	Description	Specification
		Before cable	After cable
Geometrical Characteristics	Cladding diameter	125.0 ± 0.7 μm
	Cladding non-circularity	≤ 0.7 %
	Core concentricity error	≤ 0.5 μm
	Coating diameter	235~255 μm (Before Colored)
		250+/-15 μm (Colored)
	Coating/cladding concentricity error	≤ 12.0 μm
Optical Characteristics	Mode field diameter at 1310 nm	8.4 ~ 9.2 μm
	Attenuation at 1310 nm	≤ 0.35 dB/km	≤ 0.40 dB/km
	Attenuation at 1383 nm	≤ 0.35 dB/km	≤ 0.40 dB/km
	Attenuation at 1550 nm	≤ 0.21 dB/km	≤ 0.30 dB/km
	Point discontinuity at 1310nm and 1550nm	≤ 0.05dB
	Zero dispersion wavelength	1300 ~ 1324 nm
	Zero dispersion slope	≤0.092 ps/(nm2 ·km)
	Cable cut-off wavelength (λcc)	≤ 1260 nm
	Polarization mode dispersion individual fiber	≤ 0.2 ps/√km
	Polarization mode dispersion design link value (M=20, Q=0.01%)	≤ 0.1 ps/√km
	Macro-bend loss (10 turns, 15mm radius)	1550nm: ≤ 0.25 dB; 1625nm: ≤1.0 dB;
	Macro-bend loss (10 turns, 10mm radius)	1550nm: ≤ 0.75 dB; 1625nm: ≤ 1.5 dB;
Mechanical Specification	Proof stress level	≥100kpsi (0.69 GPa)
	Coating strip force (peak value)	1.3~8.9N
	Dynamic Fatigue Parameter (nd)	≥20
	Fiber curl (Radius)	≥2 m

Main mechanical performance:

Tensile performance(N)		Short term Crush(N/100mm)
Short term	Long term	Short term	Long term
2700	900	2200	1100

The standard structure of GYDXY cable is shown in the following table.

Item	contents	12-24	48-72	96-144	192-216	288-432
Ribbons	Size: nominal (mm)	3.2*0.32				6.4*0.38
Fibers per ribbon		12				24
Loose tube	Material	PP
	Color	WHITE
	Inner diameter (±0.5mm)	5.2	6.0	7.2	9.8	12.2
	Outer diameter (±0.5mm)	6.6	8.0	9.2	11.8	14.2
Water Blocking Material		Water Blocking Yarns and Tape
Messenger	Material	FRP with EAA
	diameter(mm)	1.6
	Number	4
Ripcord	Number	2
	Material	polyester
	Color	Red
	Denier	6000D
Sheath	Material	HDPE or MDPE
	Color	Black
	Thickness (mm)	Nominal :2.5
Cable diameter(±0.3mm)		12.1	13.5	14.7	17.3	19.7
Cable weight(kg/km) Approx.		110	127	160	185	215(225)
Environmental Temperature		-40~+70C

The color code of fibres will be identification in accordance with the following color sequence.

Fiber color code	1	2	3	4	5	6
	Blue	Orange	Green	Brown	Slate	White
	7	8	9	10	11	12
	Red	Black	Yellow	Purple	Pink	Aqua

Packaging and Drum 1.Reel Length Standard reel length: 4 km/reel, other length is available upon discussion. 2. Cable Drum The cables are packed in fumigated wooden drums. 3. Cable Packing Both ends of the cable will be sealed with suitable plastic caps to prevent the entry of moisture during shipping, handling and storage. The inner end is available for testing. Our Company
