Precision 4 Axis Vertical CNC Deep Hole Drilling Machine for Metal Processing

Product Description

Drilling is the cornerstone of machining operations and boasts a vast array of applications across various industries. Traditional drilling tools such as bench drills, milling machines, and radial drills often tether workers to repetitive tasks, limiting their ability to ensure quality. These methods face challenges in terms of safety, efficiency, and processing constraints, impacting both manufacturers and operators. However, with the dawn of the CNC era, the revolutionary CNC deep hole drilling machine has transformed the landscape! It liberates workers from monotonous tasks, resolves the bottlenecks in deep drilling processes, and ensures that a single drilling operation can match the quality of traditional drilling in processes such as enlarging and expanding, while also featuring automatic chip removal, CNC precision positioning, and seamless automated processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

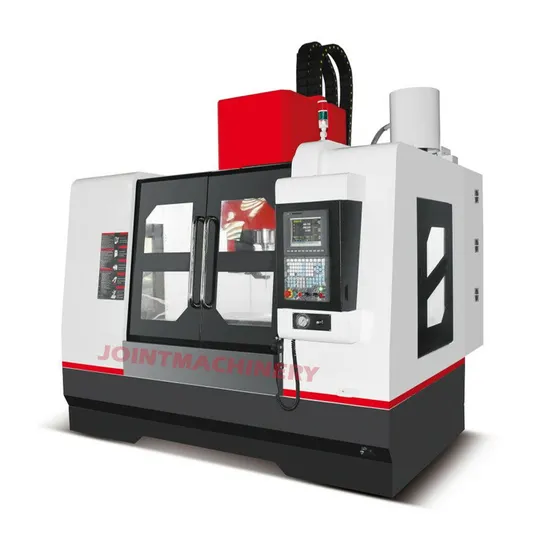

4-Axis Vertical CNC Deep Hole Drilling Machine Introducing an innovative vertical deep hole drilling machine, uniquely designed with a special short gun drill perfect for small hole processing and batch processing of injection pinholes. This marvel stands out with its high precision, incredible speed, user-friendly operation, and manpower efficiency savings. It's a versatile asset, making it highly sought after in industries such as medical equipment, aerospace, hydraulic systems, and automotive spare parts production.
Precision 4 Axis Vertical CNC Deep Hole Drilling Machine for Metal Processing

Model	Unit	VMD-850
Inner diameter of drilling	mm	1.5-20
Max drilling depth	mm	270
Table size	mm	1000*500
X/Y/Z axis travel	mm	800*500*350
Z2 axis travel	mm	400
Drilling cutting speed	m/min	1-300
Spindle taper		BT40
Max spindle rotary speed	rpm	10000
Spindle motor power	kw	7.5-11
X/Y/Z axis motor	kw	3.9/5.9/5.9
Z2 axis motor	kw	5.9
Load weight	kgs	800
Machine weight	kgs	5500
Machine dimension	mm	3200*3600*3000
