Dental Resin Mixer Industrial Propeller Mixers for Silicone Resin, Medical Polymer Materials, Carbon Fiber Composite Material, Flammable and Explosive Materials

Product Description

Propellant Mixer Explosive Mixer Kneading Machine Mixers
Product Description

Model	Volume(L)	Central Kneading Blade (RPM)	Rotating Kneading Blade (RPM)	Drive Power(KW)
JCT VK 1	0.5	2.3-23	10.4-104	0.12
JCT VK 5	2.5	1.6-16	8.8-88	0.37
JCT VK 25	12.5	1.5-15	7.8-88	1.5
JCT VK 50	25	2-16	8-64	2.2
JCT VK 100	50	1.5-14	6-56	4
JCT VK 200	100	1.3-11	6.5-56	5.5
JCT VK 400	200	1.5-12	6-48	11
JCT VK 800	400	1.2-9	6.5-49	18.5
JCT VK 1600	800	0.9-9	4.2-42	45
JCT VK 3200	1600	1-9	4-36	75

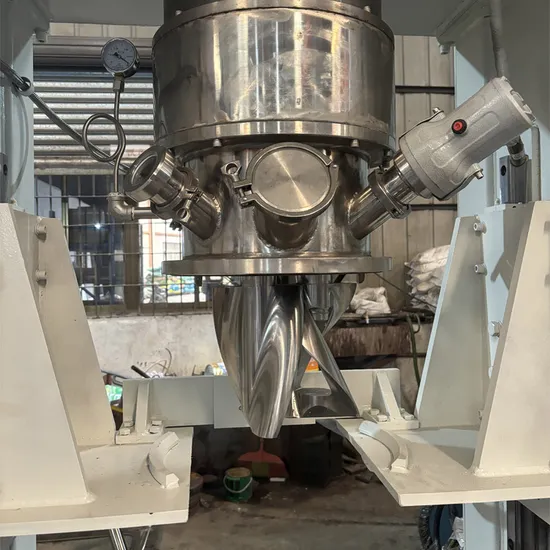

Vertical kneader with two kneading blades. The design of the vertical kneader allows the kneading shaft to be supported by bearings and sealed outside the product container. This enables the production of absolutely pure compounds. The excellent kneading and dispersion achieved with these kneading machines is based on the principle of intermeshing kneading blades, with one blade rotating in a planetary motion around the other and the two blades having a reciprocal stripping action. The strong increasing and decreasing pressure and shear forces thus created lead to thorough kneading and fine dispersion of the product within a very short timeframe. The kneading blades are supported overhung on stable roller bearings, positioned well above contact with the product. The machine is powered by a geared motor with a frequency converter allowing infinitely variable speed adjustment. Recommended Products Company Profile The JCT machinery has been producing industrial mixing, dispersing, kneading.blending and drying for over 15 years since 2006. We take 'make the mixingmore easier' as our belief and purpose in order to increasing the durability anoapplied in varius industries including cosmestics, chemical, plastics, batteryslurry, inks, pharmaceuticals, platics, adhesives, sealant, electronic pastes andglues etc.We design and customise for every unique project by starting with 3D craftexposion, Our reliable team of engineers, sales managers, marketing andproduct analyzers are always ready for solving your inquiry and question onapplications.JCT machinery now has over more than 10 product lines are ready for helpingyou find out best solution of your project including, silicone sealant, hot meltglue, battery slurry, rubbers and paint etc.
