Mini Digital Voltmeter Ammeter Voltage Current Meter with CT AC60-500V 0-100A 20-75Hz

Mini Digital Voltmeter Ammeter Voltage Current Meter with CT AC60-500V 0-100A 20-75Hz

US$0.25-5.00 1 Piece (MOQ)

Basic Info.

Display
Digital
Installation
General Installation Meter
Accuracy
0.1
Power Source
AC Meter
Theory
Electronic Meter
Application
Electronic Equipment, Electric Power, Telecommunications
Display Ammeter Type
Three-phase Digital
Customized
Customized
Color
Red/Orange/Green/White/Blue
Voltage Measuring Range
AC60-500V
Current Measuring Range
1-99.9A
Frequency Measuring Range
20-75Hz
Shape
Square
Opening Size
22mm
OEM
Yes
Sample
Availiable
Dimensions
Mini
Insulation Resistance
≥2mΩ
Display Type
Digital Only
Operating Temperature
-25ºC~+55ºC
Protection Degree
The Head IP65. IP67 Is Available on Request
Transport Package
Standard Export Package
Specification
22mm
Trademark
Golden or netural or customer brand
Origin
China
HS Code
8537109090
Production Capacity
5000000PCS/Month

Product Description

Product Description
Digital Indicator Lamp
Voltmeter/Ammeter/Frequency Meter
3in1 Function with Current Transformer
1)Working Condition
1. ambient temperature:-25ºC-+55ºC,2. relative humidity:≤98%,3. nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g4. pollution degree is 3, installation g roup is III5. "TH" marked can work at damp-heat environment.
2)Technic data
1.Power frequency withstand voltage:2.5kv/1min(effective AC value),2.insulation resistance:≥ 22MΩ,3.Allowable voltage fluctuation: ± 20%,4.Continuous operating life: ≥30000H.5.Brigtnss: ≥100cd/m2,6.CTI≥600,7.Protection degree of the head IP65, IP67 is available on request,
8.Applying frequency:AC20-75Hz.
Application
It can be used as signal indication, warning signal, accident signal and other signals in the line of electric power, telecommunication, machine tool, ship, textile,printing and mining machinery.
Product Parameters

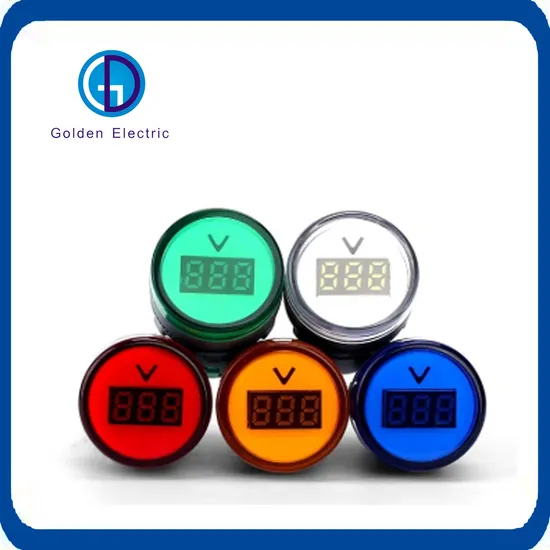

AC Voltmeter
Product NameDigital AC Voltmeter
product specificationAD16-22DSV
Hole Size22mm
ColorRed/Orange/Green/White/Blue
Rated power0.5W
Voltage range12V-500V AC
Ambient temperature-25ºC-+65ºC
Relative humidity<=98%
Display methodLED bright digital display
tolerance scope+-5V

DC Voltmeter
Product NameDigital DC Voltmeter
product specificationAD101-22VM
Hole Size22mm
ColorRed/Orange/Green/White/Blue
Rated power0.5W
Voltage range5V-60V DC
Ambient temperature-25ºC-+65ºC
Relative humidity<=98%
Display methodLED bright digital display
tolerance scope+-5V

AC frequency meter
Product NameDigital AC frequency meter
product specificationAD101-22HZ
Hole Size22mm
ColorRed/Orange/Green/White/Blue
Rated power0.5W
Voltage rangeAV24V-500V
Ambient temperature-25ºC-+65ºC
Frequency Range0-99Hz
Display methodLED bright digital display
product weight18.5g

AC ammeter Double display voltage and current meter
Product NameDigital AC VoltmeterMeasure current0-100AProduct NameDigital display voltage ammeterMeasure current0-100A
product specificationsingle phase ACUse voltage20-380Vproduct specificationsingle phase ACUse voltageAC60-380V
Hole Size22mmrefresh rateAbout 200ms/timeHole Size22mmrefresh rateAbout 200ms/time
ColorRed/Orange/Green InstructionsA load line goes through the transformerColorRed/Orange/Green tolerance scope+-1A;+-5V
Noted:Can not used in the electric environment with frequency conversion , high frequency, strong harmonic interference signal.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you for understanding.
Best selling
Packaging & Shipping
Packaging Details:
Standard Export Package
Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery Detail:
Shipped in 7 days after payment
