Jkm-3500 Mini Mobile Self Loading Concrete Mixer Truck Cement Mixer Pump Price Portable Diesel Self Loading Concrete Mixers Factory Prices for Sale

Product Description

Chinese Manufacturer EPA Euro 5 1.5 M3 - 5 M3 Hydraulic Mini Mobile Self Loading Concrete Mixer Truck Concrete Mixer Machine Self-Loading Concrete Mixer Price The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
The Following Is The 1.5 M³-5 M³ Concrete Self-Loading Mixer Truck Produced By Our Factory
Choose The Right One According To Your Needs And Establish A Cooperative Relationship With Us
Product Display

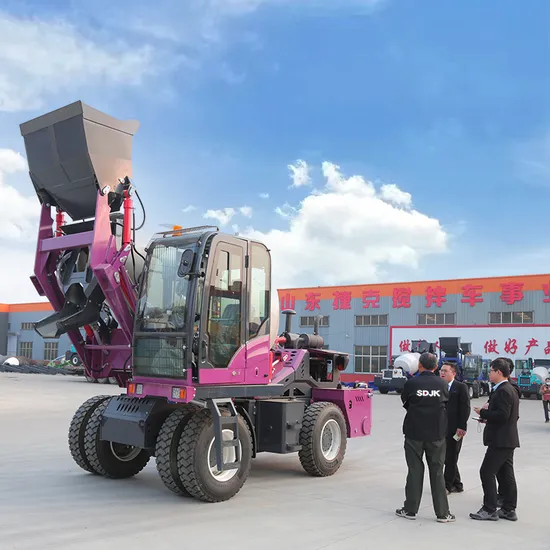

3.5 CBM yield JKM-35 Self Loading Concrete Mixer Truck

Model	JKM-35
Mixing Drum
Mixing Capacity	3.5m³
Geometrical Capacity	5 m³
Concrete Output	3.5m³/batch, 14m³/h
Drum Rotating Speed	18 rpm
Drum Rotating Angle	270°
Engine
Model	4105
Type	In-line, 4-Cylinder, 4-Stroke, Turbo Charged,Water Cooled
Rated Power	85 KW
Emission Standard	Euro II
Loading Bucket & Discharge Chute
Loading Bucket Capacity	0.6 m³
Loading Times to Full Drum	5 Times
Discharge chute	2 Sets
	With Extender
	Rotation angle range 90°, manual shank
Water System
Max. Water suction Volume	310L/min. (Self-priming electronic water pump)
Water tank Volume	2x310 L
Mixer
Max. Travel Speed	30 km/h
Gradeability	30°
Min. Turning Radius	5300 mm
Operating Weight	8000 kg
Max. Load	8200kg
Max. Gross Weight	16200 kg
Overall Dimension (L×W×H)	6600*3350*2850mm
Fuel Tank Volume	75 L
Total Hydraulic System Capacity	75 L
Oil Tank Volume	16 L

If this model can not meet your work need, We also have other models: 1.5CBM-JKM-15 , 2CBM-JKM-20 , 2.6CBM-JKM-26 ,3.5CBM-JKM-35 ,4CBM-JKM-40 Welcome Contact us: contact us for more details.
1.JKM-35 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture.
2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.
4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.
5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.
If this model can not meet your work need, We also have other models:
1.5CBM-JKM-15 , 2CBM-JKM-20 , 2.6CBM-JKM-26 ,3.5CBM-JKM-35 ,4CBM-JKM-40
Welcome Contact us: contact us for more details.
