LGP400/80pl-E China Famous Brand Grout Mixing Plant

LGP400/80pl-E China Famous Brand Grout Mixing Plant

US$6,600.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
LGP400/80PL-E
Productivity
1100L/Min
Certification
ISO9001: 2000, CE, SGS
Condition
New
Color
Yellow
Model
Grouting Equipment
Mixer Volume
400L
Mixer Output
1100L/Min
Mixer Power
7.5kw
Agitator Volume
700L
Agitator Rated Rev.
36rpm
High Speed Pressure / Output
0-58L/Min, 0-40bar
Low Speed Pressure / Output
0-80L/Min, 0-25bar
Grout Station Weight
1530kg
Suitable W/C Ratio
>=0.5:1
Warranty
12 Months
Transport Package
Nude Package or According to Customer Requirement
Specification
2350*2100*1830mm
Trademark
Leadcrete
Origin
China
HS Code
8413509090
Production Capacity
15sets/Month

Product Description

LGP400/80PL-E China famous brand grout mixing plant Product Description

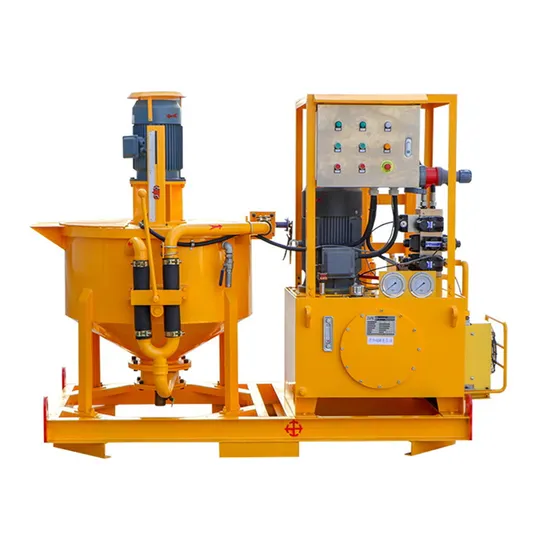

LGP400/80PL-E grout station is a combination of mixer and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the grout pump injects from the mixer drum. This ensures a continuous mixing and grouting operations. The grouting plant is driven by an electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.

Product Feature

Grouting pressure and displacement is adjustable. The function switch between mixer and grout pump is realized by using squeeze switch. The vertically plunger pump is a universal application for grouting. Easy to operate and maintain. Up to 5mm particle size.

Product Parameters
Technical data of grout plant:
Name Data
Type LGP400/80PL-E Grout station
Mixer Volume(L) 400
Speed(rpm) 1450
Grouting pump Stroke (mm) 220
Cylinder diameter (mm) 120
Flow(L/min) 80 60
Pressure(MPa) 2.4 5
Power(KW) 15
Dimension Dimension(mm) 2450×1200×1750
Weight(KG) 980


Detailed Photos
Product Application
Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;
Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement, backfill, waterproof grouting.
Acted as a grouting plant in the Pipe Jacking Machine
Company Profile

FAQ
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.
