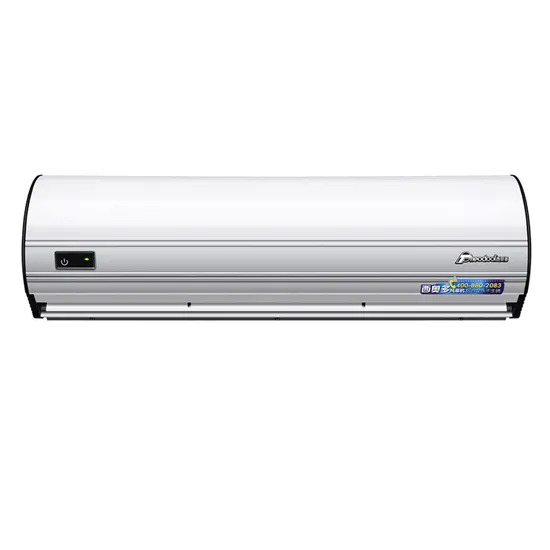

Overdoor Fan Centrifugal Air Curtain Keeping Indoor AC Cooling Air
| US$99.00-199.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
FM--35-L/YS6
Usage
Room, Car, Hotel, Restaurant, Chainstore, Shopping Mall
Indoor Machine Noise
<50
Certification
CE, CCC
China Energy Efficiency Standard
Level 2
Cooling/Heating
Cooling Only
Power Source
Electrical
Power Type
AC
Condition
New
Series
Theodoor S6 Series Air Curtain
Material
Aluminum Alloy
Color
White, Sliver, Golden
Voltage
220-240 V
Frequency
50/60 Hz
Air Velocity
13-16m/S, 16-20m/S
Air Speed
2 Speed
Mounting
Wall / Window Mount
Control
Remote Control and Key Switch
Transport Package
Carton
Specification
900/1000/1200/1500/1800/2000mm
Trademark
Theodoor
Origin
Guangzhou, China
HS Code
8414
Production Capacity
10000PCS
Product Description
Latest S6 Aluminum Series Centrifugal Type Air Curtain With Remote ControlProduct Description
1.Fashion design
Outside cover without screw, patent design of arc shape appearance and thinner side cover. 2.Touch screen operation
Available with remote control and touch screen; with high and low speeds operation;
3.Centrifugal fan motor
Low noise centrifugal fan, with high air pressure and adjustable air direction.
4.Luxury materials
By aluminum cover body and combine with high precise ABS, never rusty and easy disassembly; high velocity motor can operate continuously 5000h without failure.
5.Available color
White, Silver, Champagne
6.Application
for high grade restaurants, offices, shopping malls, hotels and commercial buildings etc.
Tech Spec
FM-35 SERIES: (Available door height: 2.5-3.5m)
| Model | VoltageV/ HZ | Input power (W) | Air Volume (m3/h) | Air Speed (m/s) | Noise (db) | Net W. (Kg) | Size (mm) | ||||
| Hi | Low | Hi | Low | Hi | Low | Hi | Lo | ||||
| FM-3509-L/YS6 | 220~ 240 /50 | 230 | 200 | 1100 | 900 | 16 | 13 | <52 | <49 | 13.5 | 900x220 x240 |
| FM-3510-L/YS6 | 250 | 220 | 1200 | 1000 | <52 | <49 | 14 | 1000 x220 x240 | |||
| FM-3512-L/YS6 | 290 | 260 | 1500 | 1200 | <53 | <50 | 16 | 1200 x220 x240 | |||
| FM-3515-L/YS6 | 380 | 350 | 1900 | 1500 | <55 | <52 | 20.5 | 1500 x220 x240 | |||
| FM-3518-L/YS6 | 450 | 420 | 2280 | 1800 | <57 | <55 | 24 | 1800 x220 x240 | |||
| FM-3520-L/YS6 | 470 | 440 | 2520 | 2100 | <58 | <56 | 27.5 | 2000 x220 x240 | |||
| FM-40 SERIES: (Available door height: 3-4m) | |||||||||||
| FM-4009-L/YS6 | 220~ 240 /50 | 300 | 270 | 1400 | 1000 | 20 | 16 | <57 | <54 | 13 | 900x220 x240 |
| FM-4010-L/YS6 | 320 | 290 | 1550 | 1100 | <57 | <54 | 13.5 | 1000 x220 x240 | |||
| FM-4012-L/YS6 | 400 | 370 | 1900 | 1500 | <58 | <55 | 15.5 | 1200 x220 x240 | |||
| FM-4015-L/YS6 | 500 | 470 | 2300 | 1900 | <61 | <58 | 20 | 1500 x220 x240 | |||
| FM-4018-L/YS6 | 600 | 570 | 2850 | 2250 | <63 | <61 | 23.5 | 1800 x220 x240 | |||
| FM-4020-L/YS6 | 620 | 590 | 3255 | 2855 | <64 | <62 | 27 | 2000 x220 x240 | |||
What is Air Curtain?
Theodoor Air curtain is installed above the entryway of store, restaurant, hotel...etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.
Packaging&Shipping
Company Information
FAQ
| Q1. | What is your terms of packing? |
| A1: | Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. |
| Q2. | What is your terms of payment? |
| A2: | T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. |
| Q3. | What is your terms of delivery? |
| A3: | EXW, FOB,CFR,CIF,DDU etc. |
| Q4. | How about your delivery time? |
| A4: | Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. |
| Q5. | Can you produce according to the samples? |
| A5: | Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
| Q6. | What is your sample policy? |
| A6: | We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. |
Q7. | Do you test all your goods before delivery? |
| A7: | Yes, we have 100% test before delivery. |
| Q8: | How do you make our business long-term and good relationship? |
| A8: | 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. |
