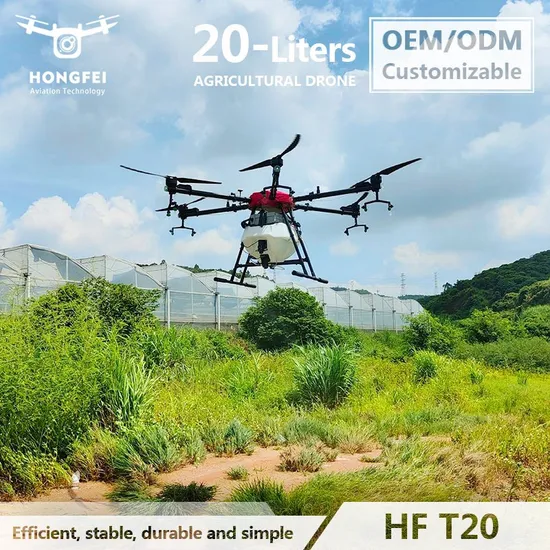

Cost Performance Garden Plant Protection Drones Pulverizadores Uav 20L Precio De Dron PARA Fumigar RC Agricultural Sprayers T20 Agriculture Crop Spraying Drone

Product Description

Product Description

Diagonal Wheelbase	1700mm
Size (Folded)	870*870*750mm
Size (Spreaded)	2350*2350*750mm
Weight	20kg
Loading	20kg
Spray Width	3-6m
Flight Control Systems	Microgram V7-AG
Dynamic System	Hobbywing X8
Spraying System	Pressure Spray (Optional Centrifugal Nozzle)
Spraying Flow	1.5-3L/min (Max: 4L/min)
Operational	8-12hectares/hour
Daily Efficiency (6hours)	20-60hectares
Power Battery	14S 20000mAh

The HF series agricultural drone, which integrates intelligent sowing and precise spraying, can flexibly carry different capacity operation boxes and easily and efficiently carry out sowing, spreading fertilizer, application and feeding in all terrain conditions through cell phone or intelligent remote control, providing every user with intelligent, precise, efficient and flexible production solutions.
The new HF series agricultural drone allows every user, through low production costs, to create high efficiency.
Features
1. Android cell phone ground station, using simple/PC ground station, the whole voice broadcast.
2. Support one key take-off and landing, no manual intervention, improve safety.
3. Breakpoint spraying, no medicine, low power return.
4. Dosage detection, can be set without drugs automatically record break point return.
5. Power detection, can be set to low power automatically record the break point return.
6. Microwave altitude radar, stable altitude, support ground-like flight.
7. Fence function, log storage function, landing lock function, no-fly zone function.
8. Vibration protection, star loss protection, drug break protection.
9. Motor sequence detection function, direction detection function.
10. Double pump mode.
Whole Machine Design
The modular waterproof body folding design, large-diameter 20-liter rotomolding process anti-vibration water tank, the main body of the body using aluminum alloy integrated plastic into.
Shell using ABS injection molding, the surface using piano baking paint process, wear-resistant and easy to clean.
Protection Grade
Protection class IP67, waterproof and dustproof, support full body wash.
Accurate Obstacle Avoidance
Front and rear dual FPV cameras, spherical omnidirectional obstacle avoidance radar to provide security escort, real-time perception of three-dimensional environment, omnidirectional obstacle avoidance.
Product Detail
· 6 groups of solenoid valves with full frequency control, providing a strong flow rate of 1L/min.
· 6 nozzles full-coverage spraying (can be customized), spraying width up to 4-6 meters.
· New intelligent liquid level meter, accurate prediction of the change of drug point, significantly improve the efficiency of the battery change.
Fast Charging
Inverter charging station, generator and charger in one, 30 minutes fast charging.

Battery Weight	6.3KG
Battery Specification	14S 20000mah
Charging Time	0.5-1 hour
Recharge Cycles	300-500 times

Standard Configuration
Optional Configuration
Packaging & Shipping

Production, assembly

Testing

Packaging (customized boxing method available)

Loading and shipping

Company Profile
Hongfei Aviation Technology Co., Ltd.
Hongfei Aviation Technology is a well-known brand manufacturer of drones in China, founded in 2003, has been committed to the research and development and production of drones for many years, entered the drone industry in 2017, has a factory in Hangzhou, China, has a stable team of high-skilled employees, and is a professional drone operation solution provider.Our products have passed ISO certification and CE certification, and we have a number of patent certificates.
We insist on using high-quality components and have a perfect and continuous service plan from product solution design and production, to transportation, installation, commissioning, and after-sales service. Based on the business philosophy of service first and quality first, we are committed to providing professional solutions for our partners in the drone industry and creating a perfect supply chain for drone products.

Strength	Service	Quality	Certificates
Years of operation, with rich manufacturing and sales experience. · Support OEM/ODM · Independent factory · With professional R&D team · Possess many patents · One of the leading drone manufacturers in China	Quality service to meet your needs. · Perfect pre-sales and after-sales service · According to the application industry, we can match the best solution for you · Focus on customer feedback, timely and effective solution to customer problems	Professional production system to ensure the quality of each product. · Passed ISO9001 international quality system certification · Controlling the details, to ensure that each detail of the product delivery	Received several certifications. · 20 invention patents · 15 utility model patents · 23 software copyrights · 1 appearance patent

FAQ
1. What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2. What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3. How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4. What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5. What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
