42m3 LNG Liquid CO2 Cryogenic Oxygen Tanker Trailer

Product Description

Products Description LNG SEMI-TRAILER HONGTU has the ability to design and manufacture all kinds of refrigerated liquefied gas tankers with high vacuum multi-layer insulation. The susbstance can be LNG, liquid oxygen, liquid nitrogen, liquid argon, liquid ethylene, liquid ethane, etc. Technical Specification
Design Code: GB/T 150 Pressure Vessels, NB/T47058-2017 Road Tankers for Refrigerated Liquefied Gas, ASME BPVC SEC VIII-2
Capacity: 20m3~52.6m3
Material: S30408/SA-240 304(Inner tank)/Q345R/SA-516(Outer tank)

	Chinese GB Standard		ASME Code
Capacity(m³)	52.6		51
Curb Weight(kg)	16200		15500
Payload(kg)	23800		22000
Total Weight(kg)	40000		37500
Overall Dimenion(mm)	13000x2500x3900
	Inner Tank	Outer Tank	Inner Tank	Outer Tank
Design Pressure(MPa)	0.65	-0.1	0.65	-0.1
Design Temperature(ºC)	-196	50	-196	50
Working Temperature(ºC)	-162	Normal Temperature	-162	-40~50
Working Pressure(MPa)	0.65	-0.1	0.65	-0.1
Medium	LNG	/	LNG	/
Corrosion Allowance	0	0
Joint Efficiency	1.0	0.85
Main Material	X5CrNiN19-9/S30408/304	Q345R	SA-240/S304	SA516/Q345R
Insulation Type	High Vacuum Multi-layer Insulation		High Vacuum Multi-layer Insulation

INDUSTRIAL GAS TRAILERS To meet the increasing demand of industrial gas industry in Chinese and overseas markets, HONGTU has designed 18 models of industrial gas transport trailer tankers. HONGTU industrail gas tankers are designed for different medium including liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, liquid ethylene, liquid ethane, etc.

Medium	Semi-trailer Dimension (mm)	Capacity (m³)	Curb Weight (kg)	Payload (kg)	Total Weight (kg)	Insulation Type
LOX	11000x2490x3600	26	13300	26700	40000	High Vacuum Multi-layer Insulation
LOX	11900x2550x3460	27	12270	27730	40000	High Vacuum Multi-layer Insulation
LN2	11460x2500x3715	33.5	14875	25125	40000	High Vacuum Multi-layer Insulation
LN2	12200/11951x2500x3775	35.17	13600	26400	40000	High Vacuum Multi-layer Insulation

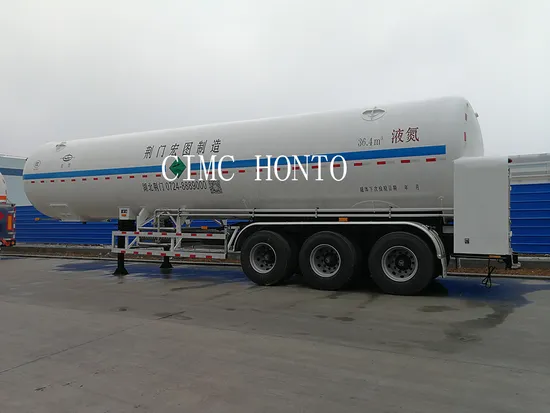

LN2	12390x2550x3715	36.4	13570	26430	40000	High Vacuum Multi-layer Insulation
LAr	11300x2500x3410	21.5	13020	26980	40000	High Vacuum Multi-layer Insulation
LAr	11890x2550x3320	22.6	11640	28360	40000	High Vacuum Multi-layer Insulation
LC2H4	12950x2490x3860	46.38	16300	23700	40000	High Vacuum Multi-layer Insulation
LC2H6	13000x2500x3900	51.55	15000	25000	40000	High Vacuum Multi-layer Insulation
LCO2	13000x2500x3600	27.5	15200	24750	39950	Foaming Insulation
LCO2	13000x2500x3600	29.6	13360	26640	40000	Foaming Insulation

LIQUID OXYGEN/LOX/LO2 SEMI-TRAILER
LIQUID NITROGEN/LIN/LN2 SEMI-TRAILER
LIQUID ARGON/LAr SEMI-TRAILER
LIQUID CARBON DIOXIDE/CO2 SEMI-TRAILER
LIQUID ETHYLENE/C2H4 SEMI-TRAILER Certifications
Company Profile
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2. In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals'storage & transportation, gasification in cities/towns and vehicle/vessel's oil-to-gas transformation. The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider. The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China. The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage & transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry. "HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.
Our Advantages 01 Powerful R&D Ability
HONGTU has been rated as "Hubei Province Technical Center for Pressure Vessels", "Hubei Province Workstation for High-skilled Talents", etc. We have acquired more than 120 patents through the "Producing, Learning and Researching" practice, and frequent technical communications and cooperation with China Standardization Committee on Boilers and Pressure Vessels, China Classification Society, Tsinghua University, Shanghai Jiao Tong University, Zhejiang University, Fuzhou
University, Huazhong University of Science and Technology, YPDI(Nanjing Yangzi Petrochemical Design Engineering Co., Ltd.), Burg Industries B.V., TGE GAS INVESTMENT SA, Department of Energy Business(DOEB in Thailand), Australia MLI company, and other Government agencies at home and abroad, Universities, famous companies in the industry.
02 Top Expert Team
We have more than 330 professional technical staff, 30 senior engineers(including 5 Researcher-level Engineers), about 500 staff who are multi-skilled technical talents and senior technicians, 9 outsourced experts and professors employed in the industry. We are the Editorial Board of the China National Boards of Supervision Regulation on Safety Technology for Transportable Pressure Vessel; We have participated in the compiling of many other standards, such as Road Tanker for Liquefied Gas, Road Tankers for Cryogenic Liquid, Supervision Regulation on Safety Technology for Transportable Pressure Vessel, Road Tanker for Dangerous Liquid Goods Transportation.
03 Strong Production Capacity
HONGTU has been facilitated with more than 2000 sets of equipment, such as plasma cutting machines, US Lincoln welding machines, welding robots, all kinds of large and medium-sized rolling machines, beveling machines, cranes, heat treatment furnace, NDT equipment, 2000 tons of spherical shell press machines and other large heavy equipment. Among them, there are more than 200 sets of testing equipment.
04 Comprehensive Industrial Chain Solution
HONGTU has been engaged in manufacturing of energy and chemical storage & transportation equipment for over 3 decades. Focusing on the production, storage and transportation, application and intensive processing of upstream, midstream and downstream liquefied petroleum gas industry chain, HONGTU forms complete industrial equipment cluster from oil refining device, spherical tank, large scale flat bottomed vertical tank to mounded type tank, from lightweight and large-volume liquefied gas tanker to core equipment manufacturing of various types of end applications and engineering application, is China's only LPG whole industry chain equipment manufacturer and solution provider.
05 Scientific and Reorous QA&QC System
HONGTU has a sound quality assurance system and perfect quality control procedures. Products from the entry of raw materials to the delivery to the user must pass 111 quality control points, 243 quality control procedures and 47 procedure document reviews. Annual radiographic inspection films of the products exceed more than 400,000 copies and each product quality files keep for more than 20 years, so each weld quality can be tracked. HONGTU continues to carry out the LEAN Management, introduce the ONE module, passes the HSE system(quality, occupational health and safety, environment) certification and realizes the comprehensive management of information, quality and workers in the manufacturing site.
06 Professional International Services and Marketing Network
HONGTU has its own international business network and a sound international business organization structure, including 50 plus professionals engaged in technical service and overseas marketing, dedicated to providing overseas customers with technical consultation, business negotiation, product service, personnel training and a full range of integrated solutions services, and has built a three-level service assurance system comprised of salesperson, engineer and professional service personnel.
