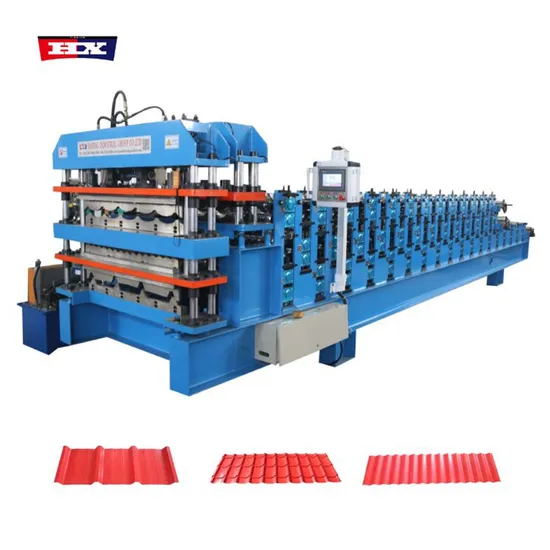

1220mm Triple Layer Glazed Tile Corrugated Trapezoidal Manufacturing Machine Three Layer Roofing Metal Steel Iron Sheet Roll Forming Making Machine

Product Description

Product Description
1220mm triple layer glazed tile corrugated Trapezoidal manufacturing machine Three Layer Roofing Metal steel iron Sheet Roll Forming Making Machine

Product Specification

1220mm triple layer glazed tile corrugated Trapezoidal manufacturing machine Three Layer Roofing Metal steel iron Sheet Roll Forming Making Machine
Formed Material	GI/GL, PPGI/PPGL	Thickness: 0.3-0.8mm, Width: 1220mm(customized)
Decoiler	Hydraulic decoiler	Manual decoiler(will give you as free)
Main body	Roller station	18+13+13 rows (As your requirement)
	Diameter of shaft	70mm solid shaft
	Material of rollers	45# steel, forging with chromium plate 0.05mm,
	Machine body frame	350 H Beams
	Dimension(L*W*H)	6000 * 1550 * 1600mm (customize)
	Weight	5 Ton
Cutter	Automatic	Cr12 Mov quenched treatment 58ºC-62ºC
	Cutting tolerance	±1mm
Power	Motor Power	5.5KW
	Hydraulic system power	5.5KW
	Reducer	8# gear reducer
Voltage	380V 50Hz 3Phase	As your requirement
chain	1 inch	As your requirement
Control system	Electric Box	Delta (As your requirement)
	Language	English, Spanish, etc.(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	10-15m/min	The speed depends on the shape of the tile and the thickness of the material.

Detailed Photos
Manual decoiler
1.Capacity:5T 2.Coil diameter: 470-520mm 3.Coil outer diameter:1000mm 4.Coil width: 940mm(as customers' request)
Feeding table
Function and advantages: 1.Reduce friction: It can reduce the contact
2.area between the material and the surface of the feeding table, thereby reducing friction and making the material move more easily.
3.Save space and easy to maintain.
Remarks: The tail is marked with a hand pull knife (one for each layer, the lower layer is inclined to feed the material)
Main rollers
1.Roller stations: 18+13+13 row wheels (according to different design, depend on the profile drawing) 2.Roller materila: 45# steel with quenched treatment and hard chroming
3.Shaft diameter: 70mm, solid.
4.Shaft material: 45# steel with tempering treatment.
5.Wheel speed: 10-15M/min
Computer Control Cabinet
Function and advantages: 1.The PLC control system will be in charge of the working condition like the speed, cutting length and cutting quantity.
2.Switching languages is easy to operate, the language can be English, Spanish or as required.
3.The touch screen interface is designed to be intuitive.
Cutting head
1.Work type: Hydraulic 2.Driving method: By Cylinder
3.Cutter material : Cr 12/CR12MOV, Heat treatment, HRC58-62°
4.Cutting length tolerance: ±1.0mm
5.Advantages:Energy saving effect, hydraulic technology can achieve higher energy conversion efficiency and reduce energy consumption, the hydraulic drive response speed is fast.
Motor driver
1.Main motor size : 5.5 kw 2.Brand: The famous brand from Jermany or according to customer's need 3.Solenoid valve: 2 groups 4.Hydraulic oil: 46#hydraulic oil Color:Blue (or as customer's request) 5.Working pressure: 12-1 6Mpa adjustable
Hydraulic station power
Hydraulic pump station provide cutting power
1.Hydraulic station power: 5.5Kw 2.Brand: Lichao, Shanghai
3.Motor with pump capacity of tank: 45L
4.Advantages:The free included fan helps reduce oil temperature, extend service life, improve system reliability, and prevent overheating protection, reduce energy consumption and reduce maintenance costs.
Wearing parts
We will provide the consumable parts of the 1220mm triple layer glazed tile corrugated Trapezoidal manufacturing machine Three Layer Roofing Metal steel iron Sheet Roll Forming Making Machine for free!
Packaging & Shipping
1.Nude,with roof cloth and stow-wood. lmported computer control system packed with waterproof cloth and card board.
2.This production line is maintained free of charge for 18 months.When the machine is used in China, we will install.and debug the machine for free; if it is used at abroad, we will send a professional technician to debug buyers should take all the fees for technicians travelling abroad.
3. All the parts in the fully automated pv4 glazed tile galvanized aluminum sheet metal making machine double layer roofing sheet machine, is free to maintain long life. If in 18 months our company bear the cost for exchanged the broken partlike the new parts cost and express cost, if more than 18 month, we also free to maintain the broken parts but for send the new parts, the buyer need bear the express cost.
4.When ship the 1220mm triple layer glazed tile corrugated Trapezoidal manufacturing machine Three Layer Roofing Metal steel iron Sheet Roll Forming Making Machine , we will also send one set CD and specification (Chi-nese and English) to you with the machine, they can teach you how to operater the machines.
Company Profile
We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We cooperating with 150+ countries & 5000+ Partners.
Why choose us
FAQ
Q: Are you a trading company or a factory?A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.Q: Can a machine produce only one style panel profile?A: Not complete. Suitable for wider and 1220mm triple layer glazed tile corrugated Trapezoidal manufacturing machine Three Layer Roofing Metal steel iron Sheet Roll Forming Making Machine . It can produce more than 3 panels.Q: How long does it take to manufacture the machine?A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.Q: Is there quality control when producing the production line?A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.Q: What can you do if the machine broken?A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.Q: What is your strength compared to other suppliers?A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.Q: Can we become your agent abroad?A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
