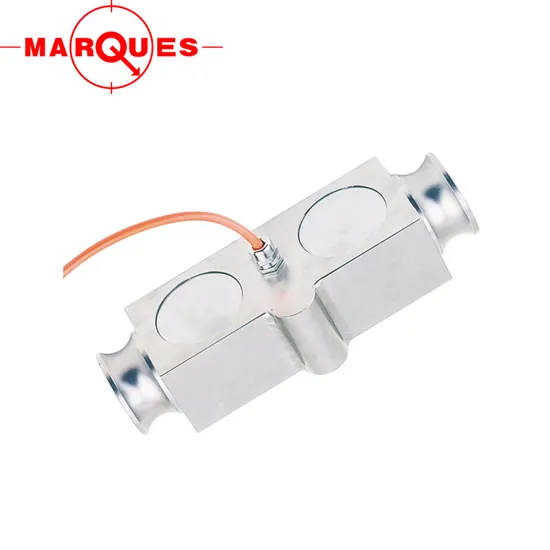

IP68 Double Ended Shear Beam Load Cell Weighing Sensor Used for Warehouse Scales OIML
| US$85.00-125.00 | 20 Pieces (MOQ) |
Basic Info.
Model NO.
DESB5
Out-Wire
4-Wire or 6-Wire
Output Signal Type
Analog Type
Feature
Stable
Production Process
Normal Wirewound
Material
Alloy Steel
IP Rating
IP68
Certification
ISO
Customized
Customized
Maximum Capacity(Emax)
25,40,50,60,75,100,125klb
Sensitivity(Cn)
3.0±0.003mv/V
Zero Balance
0±0.03mv/V
Temp.Effect on Zero Balance
±0.02% of Cn/10K
Temp.Effect on Sensitivity
±0.02% of Cn/10K
Hysteresis Error
±0.0500/0.0270 % of Cn
Non-Linearity
±0.0500 /0.0250% of Cn
Creep Over 30 Min
±0.030 /0.020% of Cn
Input Resistance
750±10Ω
Output Resistance
703±3.5Ω
Nominal Range of Excitation Voltage
5~15V
Insulation Resistance at 50VDC
≥5000mΩ
Service Temperature Range
-30ºC ~ +70ºC
Safe Load Limit
120% of Emax
Breaking Load
200% of Emax
Transport Package
Foam and Carton
Specification
Please Contact
Trademark
MARQUES
Origin
Ningbo
HS Code
9031809090
Production Capacity
20000PCS/Year
Product Description
Load cell - Double ended shear beam1. Accuracy Class:0.05/0.03
2. Laser welding, IP68
3. Material: Alloy Steel
4. Used in truck scale, warehouse scale
Product Parameters
Application
============================================================ Used in truck scale, warehouse scale Protocols
============================================================ We are homologated in the main current weighing systems. Also able to be customized according to your system. Company Profile
Factories&Equipments
Our Exhibitions
Our Advantages
1. Fast replied until 12 hours.
2. OEM/ODM are welcome.
3. We provide samples.
4. All products have been tested by High-Quality Area.
5. All products have one year of warranty.
6. We have our own R&D Professional team.
7. We have our own IT area that develops our own system making it easy and fast for customizations.
8. All products have high quality and European standards.
9. All process is made by us making it possible to give a competitive price.
10. Team fully prepared to give you full support.
