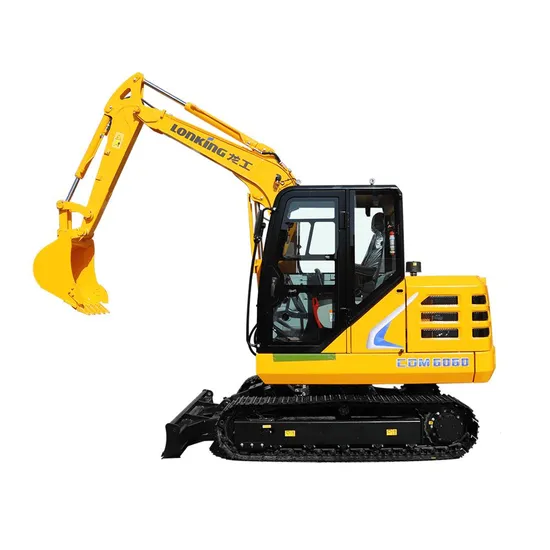

Hydraulic Digger Machine 6.08 Ton Brand New Crawler Excavator with Good Service
| US$10,360.00-18,648.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CDM6060
Type
Crawler Excavator
Usage
GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Condition
New
Self Weight
6080kg
Shipping Length
5827mm
Shipping Height
2600mm
Tumbers Distance
1919mm
Radius Swing Center to Rear End
1641mm
Counterweight Ground Clearance
683mm
Track Gauge
1550mm
Overall Width
2000mm
Width of Upper Structure
1960mm
Track Shoe Width(Standard)
400mm
Min. Ground Clearance
306mm
Origin
China
HS Code
8429521200
Product Description
Product Description| The whole machine | Approximate Weight (kg) | 6080 |
| Bucket Volume (m³) | 0.25 | |
| Pressure to the Ground (kPa) | 32 | |
| Travel Speed (Low/High)(km/h) | 2.5/5.0 | |
| Rotation Speed (rpm) | 11 | |
| Gradeability(° ) | 35 | |
| The engine | Model | 4TNV94L-BVLKC |
| Power (kW/rpm) | 36.2/2100 | |
| Displacement (L) | 3.054 | |
| Fuel Tank Capacity (L) | 125 | |
| The hydraulic system | Work Pressure (MPa) | 25.1 |
| Flow (L/min) | 151 | |
| Hydraulic Tank Capacity (L) | 80 | |
| Digging force | Max. Bucket Digging Force(kN) | 40 |
| Max. Arm Digging Force (kN) | 28 | |
| Bulldozing plate | Size (width x height )(mm) | 1950*306 |
| Work Range (Ground/Underground) (mm) | 366/386 |
| Product structure |
| Hydraulic system | Adopt negative hydraulic flow system.Automatic sensor control, with regeneration priority and other functions.More flexible response, higher work efficiency and more precise operation. |
| Structure | Optimize the structure process.Extended coverage, improved space.The device is placed on the side to improveefficiency |
| Double side door | Doors open on both sides of the machine.Easy maintenance |
| CAB | Adopt a new look.luxury leather seats.Comfortable new operating handle |
| Electronic control system | Display control system upgrade system is faster.Higher reliability and precise matching |
| Power system | Standard Yanmar 4TNV94 engine National III emission standard.Lower fuel consumption and less noise |
| Product advantage |
| All-round work structure | Realize diversified operation of excavators, cope with various working environments, quickly and effectively, and save time |
| Intelligent man-machine dialogue | Selfdeveloped MCSS electronic control system, people work closely with the machine to maintain the best state and efficiency of the machine |
| Engine Management Specialist | Achieve precise power matching, more powerful, more energy -saving, and improve work efficiency |
| 360· safe cabin | The left and right column reinforced cab greatly improves the strength and rigidity of the cab, forming a solid 360' safety protection |
| LUDV power balance system | The load-independent flow cimfort of the whole machine stability, sesitivty and operating |
