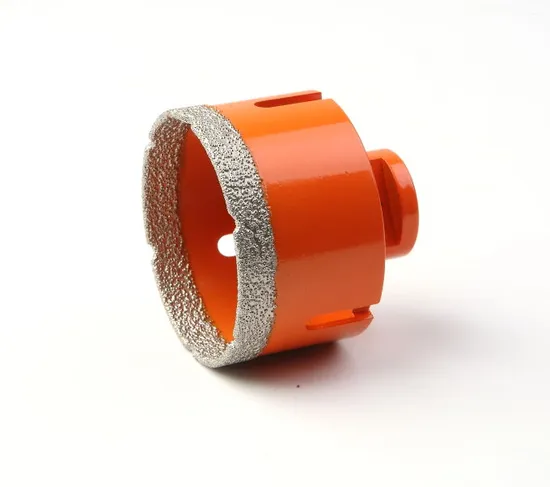

Vacuum Brazed Diamond Core Drill Bits M14 Thread for Tiles Ceramics Porcelain

Product Description

Usage
Install the drill bits on a suitable machine for use.After the complete installation,manually rotate the drill bit for a few laps to confirm that it is installed in place without swinging loose. When drilling ,keep the machine running at high speed during the whole process.The recommended speed exceeds 2600rpm.The faster the speed,the longer the service life.In use,gently tilt it on the tile and tilt it on the perforated material at an angel of 45°.At the beginning ,the smaller the force,the less sliding,and the hole is drilled in the crescent-shaped positioning groove. After punching out the positioning slot,erect the machine slowly.When drilling,please shake it slightly in a circular manner to facilitate the removal of debris and improve the speed and the speed and efficiency of drilling. It is forbidden to place it vertically and press hard,otherwise it will greatly shorten the service life. It is necessary to add water to cool the drill bit when drilling,and dry drilling if there is cooling wax.

DIAMOND HOLE SAWS
VACUUM BRAZED
Designed for drilling all hardness tiles including marble, granite, ceramic, porcelain, etc.
Different diameter, arbor sizes and specifications are available upon request.
Item No.	Diameter mm	Overall length mm	Shank	Grit
1302006	6	60	M14or 5/8"-11t	30/40,40/50
1302008	8	60	M14or 5/8"-11t	30/40,40/50
1302010	10	60	M14or 5/8"-11t	30/40,40/50
1302012	12	60	M14or 5/8"-11t	30/40,40/50
1302014	14	60	M14or 5/8"-11t	30/40,40/50
1302020	20	60	M14or 5/8"-11t	30/40,40/50
1302025	25	60	M14or 5/8"-11t	30/40,40/50
1302028	28	60	M14or 5/8"-11t	30/40,40/50
1302032	32	60	M14or 5/8"-11t	30/40,40/50
1302035	35	60	M14or 5/8"-11t	30/40,40/50
1302043	43	60	M14or 5/8"-11t	30/40,40/50
1302050	50	60	M14or 5/8"-11t	30/40,40/50
1302055	55	60	M14or 5/8"-11t	30/40,40/50
1302060	60	60	M14or 5/8"-11t	30/40,40/50
1302065	65	60	M14or 5/8"-11t	30/40,40/50
1302068	68	60	M14or 5/8"-11t	30/40,40/50
1302070	70	60	M14or 5/8"-11t	30/40,40/50
1302075	75	60	M14or 5/8"-11t	30/40,40/50

Vacuum Brazed Drill Bits for drilling through hard ceramic, stones, tiles, fiberglass, brick and granite etc.
Application
For extremely hard ceramic.
Feature
* Quick start and fast drilling
* Long using life
* Wax cooling technology
* Smooth and continuous usage
