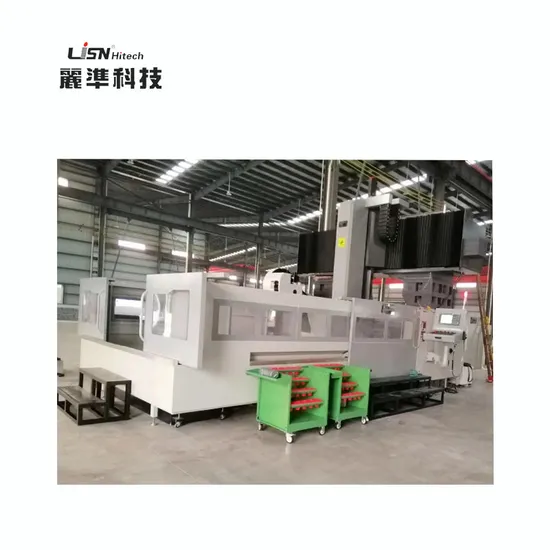

4 Axis Double Column Machining Center Gantry Type Machining Center Gl4022

Product Description

Product Description
The 4 axis GL4022 is a high performance double column machining center with high rigidity and precision characteristics. The machine structure design is reasonable, the base and the gate bridge adopted a integrated structural design, all the castings have been twice tempered treatment to provide excellent stability and strength for the machine to ensure it has a high rigidity for machining. The contact surface of the machine has been polished to ensure accuracy.

Main Feature
High rigidity of the overall machine High speed and precision spindle: 6000RPM Excellent worktable size: 4000mm*2000mm Excellent load bearing capability: 15T Maximum cutting feed speed: 10 - 7000RPM
Detailed Photos
Product Parameters

ITEM	MODELS	GL4022
WORKTABLE (WIDTH*LENGTH)	mm	4000*2000
MAX LOAD BEARING OF WORKTABLE	T	15
X/Y/Z AXIS TRAVEL	mm	4000/2200/800
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	240-1040
SPINDLE HOLE TAPER		TB50
SPINDLE SPEED RANGE	r/min	6000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	Optional
DISTANCE BETWEEN TOW COLUMNS	mm	2300
X/Y/Z RAPID FEED SPEED	m/min	12/12/15
MAX CUTTING FEED SPEED	m/min	10-7000
X/Y/Z POSITION ACCURACY	mm	±0.015/300
X/Y/Z RE-POSITION ACCURACY	mm	±0.01
MACHINE DIMENSION	mm	11000*3700*4700
MACHINE WEIGHT	T	38
POWER DEMAND	KVA	45
AIR PRESSURE	m ³mim	7

Standard Configuration for Gantry Series 1. Spindle temperature control system
2. Central automatic lubrication system
3. Fully sealed sheet metal
4. Cutting fluid system (with pump and tank)
5. Strong double - spiral iron chip roller
6. Chain type iron chip conveyor and collecting bucket
7. Foundation bolts and level adjusting screws
8. Adjusting tool
9. Warning lights
10. Blow air cleaning device
11. Automatic power failure system
Optional Configuration for Gantry Series 1. 8000/10000RPM Direct Driven Spindle
2. Handle and broach bolt: DIN50/CAT50/ISO50
3. Increase the height of the column by 200mm
4. 40 tools magazine tool
5. XYZ three axis optical ruler (HEIDENHAIN)
6. Spindle temperature rise heat compensation function
7. Oil circuit tool handle connection
8. Spindle center water outlet system
9. Automatic tool length measuring device
10. Automatic workpiece measuring device
11. CNC rotary worktable
12. Disc type oil-water separator
13. Spray cooling system
