Double-Shaft Feed Mixer (SSHJ) Best Selling Mixer

Product Description

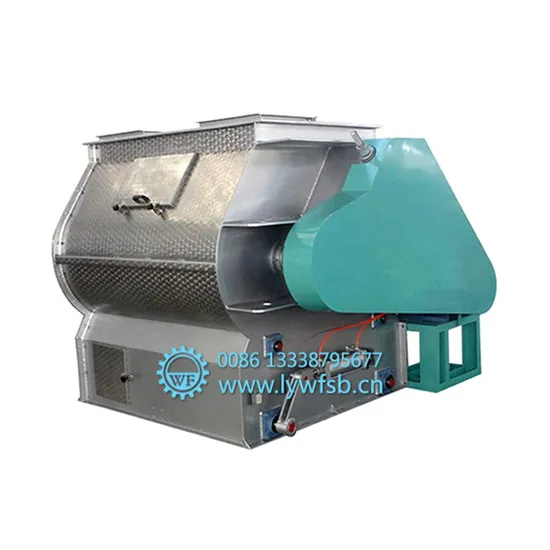

Product Description SSHJ double shaft paddle animal feed mixer, poultry feed mixer/ mixing machine
Usage:
SSHJ series double-shaft paddle type high efficiency mixer is widely used for mixing powdery, granular, flake, miscellaneous and viscous materials in feed, grain, chemical, medicine, pesticide and other industries.
Features:
(1) Short mixing cycle and high mixing uniformity: the mixing uniformity CV of general materials is less than 5% in 50-90s, which reduces the mixing time and improves the production efficiency of the feed plant.
(2) Loading variable range is large: loading coefficient variable range is 0.3 ~ 0.8, suitable for mixing with different proportion, particle size and other materials in many industries;
(3) Segregation does not occur when mixing: after the machine is evenly mixed within 1 minute, the classification phenomenon does not occur when the mixed materials continue to be mixed, and segregation will not occur because of the large difference in specific gravity, particle size and other physical properties;
(4) Fast discharging, small residual amount: the bottom adopts four-door structure, discharging quickly, less residual;
(5) Large amount of liquid: add 30% liquid can still mix the material evenly, that is, can mix sticky material;
(6) Adopt unique chain tensioning mechanism, assemble and disassemble, adjust quickly and conveniently;
(7) Discharge door reliable sealing: discharge door adopts double plane line contact sealing, reliable sealing, long service life, avoid the sealing strip is easy to break, difficult to buy, difficult to replace the difficulties;
(8) W - shaped mixing chamber, built-in air duct, integral base, side access door, beautiful appearance, convenient assembly, disassembly and maintenance. Product Parameters

Model	Volume (m ³ )	Capacity/batch (kg)	Mixing Time (s)	Homogeneity (CV ≤ %)	Power (kw)
SSHJ0.1	0.1	50	30-120	5	2.2(3)
SSHJ0.2	0.2	100	30-120	5	3(4)
SSHJ0.5	0.5	250	30-120	5	5.5(7.5)
SSHJ1	1	500	30-120	5	11(15)
SSHJ2	2	1000	30-120	5	15(18.5)
SSHJ3	3	1500	30-120	5	22
SSHJ4	4	2000	30-120	5	22(30)
SSHJ6	6	3000	30-120	5	37(45)
SSHJ8	8	4000	30-120	5	45(55)

Detailed Photos Structural characteristics and working principle
The machine is mainly composed of shell, rotor, machine cover, discharging mechanism, liquid spraying device and transmission device.
Cases Packaging & Shipping
Customized packing: wooden case, steel case, steel pallet.... FAQ 1. who are we?
