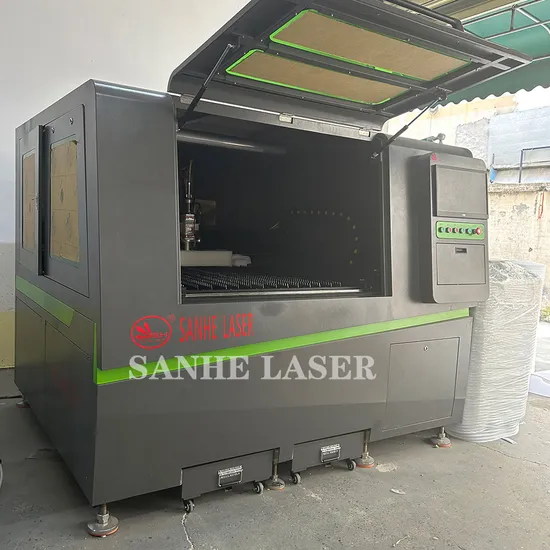

High-Precision Fiber Laser Cutting Machine, Laser Precision Cutting Within 1mm, The Cutting Surface Is Bright and Burr-Free
| US$32,000.00-52,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
3HE-MF3000W
Application
Home Appliance, Environmental Equipment, Automotive Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Fiber-Optic Laser
Laser Technology
Laser Control Fault Cutting
Laser Source
Ipg/Raycus/Max
Motor
Servo Motor
Watt
1kw 2kw 3kw
Cooling
Water Cooling
Working Area
800*800mm
Transport Package
Plywood Case
Specification
2400*2100*2100
Trademark
SANHE
Origin
China
HS Code
8461500090
Production Capacity
200set/Month
Packaging & Delivery
Package Size
240.00cm * 210.00cm * 210.00cm
Package Gross Weight
4000.000kg
Product Description
Product DescriptionDetailed Photos
High-precision linear motor module, frictionless, energy-saving, efficient and stable in operation, with transmission frequency accuracy up to 0.5 micron.
Adapt to standard QBH
Three protective mirrors protect against dust
Stable operation, small size, light weight, suitable for precision cutting.
Features marble countertops and honeycomb blade platform.
The marble platform has good overall rigidity and high strength. It can ensure the stability of the fuselage structure.
Flat countertop. Reduce the frequency of jitter and ensure stable product placement. Greatly improve precision
Intelligent CNC software system, rich functional modules, simple and easy to operate, can be effectively used in laser cutting processing of various materials.
Product Parameters
| Model | 3HE-MF1000W | 3HE-MF2000W |
| Laser Power | 1000W | 2000W |
| Max. Cutting Thickness | 12 mm | 20 mm |
| Laser Type | Imported Fiber Laser | |
| Laser Technology | Germany Technology | |
| Working area | 800*800 mm | |
| X axis Stroke | 800mm | |
| Y axis Stroke | 800 mm | |
| Z axis Stroke | 150 mm | |
| Transmission way | Imported ball screw | |
| Table-driven system | Japanese Panasonic Servo motor & Driver | |
| Focus Method | Dynamic Following and Automatic Adjust Focus | |
| Location precision | ≤±0.05 mm | |
| Re-location precision | ±0.02 mm | |
| Max. moving speed | 100m/min | |
| Laser wavelength | 1070nm | |
| Minimum line width | ≤0.1mm | |
| Supporting Format | PLT, DXF, BMP, AI | |
| Power demand | 380V/50HZ | |
| Worktable max. load | 1000 Kg | |
| Dimension (L*W*H) | 4000mmX3000mmX2000mm | |
| Control Method | offline movement Control | |
| Control software | SANHE Laser Professional Laser Cutting Software | |
