Steel Mould of The PA66 Bar Extrusion Machine Thermal Break Strip Extruder

Product Description

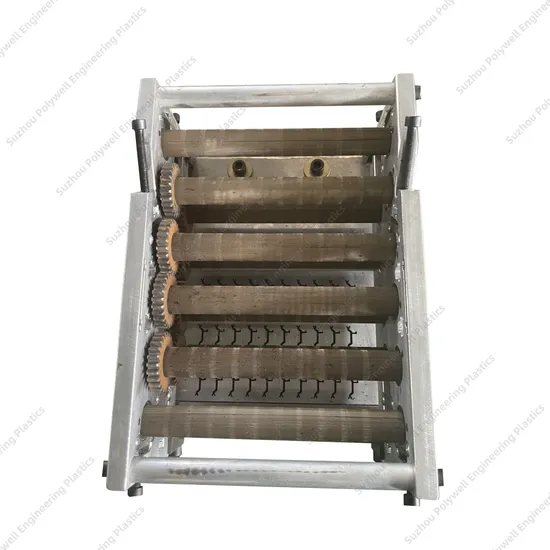

Steel Mould Die Part Head of The PA66 Bar Extrusion Machine Thermal Break Strip Extruder
Polywell mould can meet the needs of the market and customer.
Polywell has its own design and development of nylon insulation strip automatic extrusion production line with high stability, high yield, high adaptability.
What is plastic moulds for PA profile extrusion line?
PA profile means polyamide thermal break strips. Which is one of the most common materials used for years to create thermal breaks in curtain walls, commercial windows, doors, and more. It is a reinforced polyamide strip, which occurs as a non-metallic, composite, structural material, and is installed between the interior and exterior profiles of the windows that forms an insulating barrier between the two.
The shape, size and output of polyamide strips are determined by plastic moulds. Therefore, plastic mould is a very important and indispensable part of the polyamide strips extrusion line.
The utility model mainly uses the special screw to make the polyamide and the glass fiber mixed good.
Heat insulating rubber strips are widely applied to the doors, windows and curtain wall aluminum sheets through the different sections of the die.
Product Specifications:

Product Name	Mould for thermal barrier strips extrusion machine
Brand	Polywell
Size	Various types
Mold material	Mold steel
Product	PA66 thermal barrier strips
Runner	Cold/Hot runner
Mould cavity	Multi-cavity
Mould weight	60kg-100kg
Service	Provide complete set of production press and technology and best after sale service.
Lead time	28-35 working days
Package	Plywood case

Detail introduction:
PA66 granules and fiber glass are dired and get into the barrel through the hopper. Screw and pellets contact with the rotation of the screw is forced to promote the spiral groove die direction.
Because the screw barrel gap is small, the granule material is hot body under great pressure in the forward process, it is plasticizied to nylon thermosol through the high temperature of the electric heating ring body. Nylon plastic and plastic compression heating hot melt by extrusion molding, after traction, cutting or rolling become adiabatic adhesive tape products.
The host adopts imported inverter and traction, speed stability, ensure the main, auxiliary synchronous speed.
We use German technology to make the mould, so the surface of thermal insulation strips are beautiful, accurate shape and with high strength.
We use imported Japanese RKC temperature control table, so that the accuracy of the temperature can be controled in ±2 degrees.
Our Advantages:
1. Our engineers follow the molds' production every week to make sure all of them are in schedule
2. After trial production, we will check the samples to make sure everything are right 3. We will send the sample and dimension report to our clients for approval
4. After everything is ok, we will do final inspection on the molds and products before shipment.
Shape: We can make the shape according to customers' requirements.
Package: Plywood case package.
Please feel free to contact us if you have any questions.
