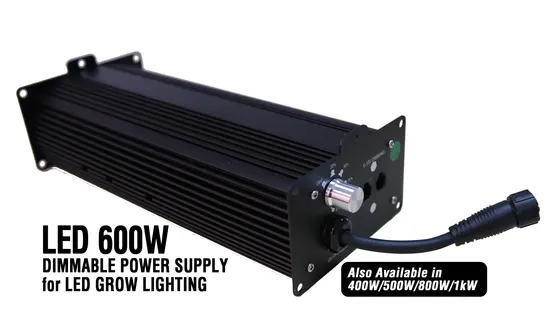

600W Dimmable LED Driver Power Supply for LED Grow Light
| US$65.00 | 300 Pieces (MOQ) |
Basic Info.
Model NO.
TLA-600W-220
Emitting Color
Power Supply Unit
Input Voltage
85V-265V
Power
600W
Shape
Aluminum Extrusion
Warranty
5 Years
Housing Material
Aluminum
Life
100000 Hours
LED Chips
Power Supply Unit
Certification
CE, RoHS, CCC
Transport Package
Carton
Specification
10 pcs in one carton
Trademark
Techone
Origin
China
HS Code
8504401990
Production Capacity
100000 PCS Per Year
Product Description
TLA-600W-220
Constant current High power
LED power supply
Input 90~264Vac, Output 600W
Features: Support 90~264Vac universal input voltage range, with optional 277Vac input. Support startup at -20ºC working normally, adapt to application in different weather. Wide output voltage range, works with different LED chips. High-power output 800W. Supports multiple control, manual/remote dimming. Works with Techone Lighting Controller and DAER system Application: LED Grow Light
| Input | |||||||||||||||
| Parameter | Min. | Typ. | Max. | Unit | Remark | ||||||||||
| AC input voltage range | 100 | 110/220 | 264 | Vac | |||||||||||
| AC input voltage frequency | 47 | 50/60 | 63 | Hz | |||||||||||
| Power factor | 0.95 | 220Vac full load | |||||||||||||
| Input inrush current | 40 | A | 220Vac full load/cold status | ||||||||||||
| AC input mode | Single phase | Support single phase | |||||||||||||
| Output | |||||||||||||||
| Parameter | Min. | Typ. | Max. | Unit | Remark | ||||||||||
| Output voltage range A | 33 | 44 | 48 | Vdc | Auto Adaptive | ||||||||||
| Output voltage range B | 38 | 52 | 54 | Vdc | Auto Adaptive | ||||||||||
| Output current range A | 3.13 | 12.5 | A | Full voltage input range | |||||||||||
| Output current range B | 2.72 | 11.12 | A | Full voltage input range | |||||||||||
| Load regulation | ±2 | % | Rated voltage input, full load | ||||||||||||
| Constant current Dimmable output | ±5 | % | Off = Lamp off 25% = 3.13A +/- 10% 50% = 6.26A +/- 10% 75% = 9.39A +/- 10% 100%= 12.5A +/- 10% EXT = 0~10V dimming RJ11 socket <1.5+/-0.5V, Off >2V+/-0.5V, On 2~10Vdc reflects output current 20~100% (+/-10%) Linearity < 10% | ||||||||||||
| Source regulation | ±0.5 | % | Rated current output, full input | ||||||||||||
| Noise + Ripple (peak to peak) | <=5% | mV | Rated full in/output range | ||||||||||||
| Output power | 800 | W | |||||||||||||
| Output efficiency | 88 | 94 | 95 | % | 240Vac input, full load, normal ambient | ||||||||||
| Dynamic response overshoot | ±5 | % | 25%-50%-25% or 50%-75%-50% load change, current changing rate: 0.1A/us,cycle:4ms | ||||||||||||
| Dynamic response overshoot | ±10 | % | |||||||||||||
| Temperature coefficient | ±0.02 | %/ºC | Rated output voltage and output current, full range working temperature | ||||||||||||
| Turn-on output delay | 3 | S | Test at 220Vac full load | ||||||||||||
| Turn on/off overshoot | ±5 | % | Full voltage input range, full load output | ||||||||||||
| Output voltage rising time | 100 | 200 | ms | Rated input/rated output | |||||||||||
| Protection | |||||||||||||||
| Parameter | Min. | Typ. | Max. | Unit | Remark | ||||||||||
| Input low voltage protection | 70 | 80 | V | Half-load | |||||||||||
| Input low voltage recover | 80 | 90 | V | Half-load | |||||||||||
| Input over voltage protection | 275 | 305 | V | Half-load | |||||||||||
| Input over voltage recover | 265 | 290 | V | Half-load | |||||||||||
| Output over voltage protection | 51 | 54 | 57 | V | Auto recovery | ||||||||||
| Output constant current point | 4.17 | 16.67 | A | ||||||||||||
| Output short circuit protection | Long term short circuit, auto recovery | ||||||||||||||
| Over temperature protection trigger point | 60 | 70 | ºC | Over temperature cut off, could recover. Output full load test, reference temperature is the ambient temperature. | |||||||||||
| Ambient | |||||||||||||||
| Parameter | Min. | Typ. | Max. | Unit | Remark | ||||||||||
| Operating temperature. | -20 | 40 | °C | ||||||||||||
| Storage temperature | -45 | 85 | °C | ||||||||||||
| Relative humidity | 5 | 95 | % | No condensing | |||||||||||
| Altitude | 0 | 5000 | m | ||||||||||||
| Cooling | Natural cooling | ||||||||||||||
| Safety & Insulation | |||||||||||||||
| Parameter | Standard requirements | Remark | |||||||||||||
| Input -output | 1500Vac/10mA//1min | No flashover or breakdown | |||||||||||||
| Input - ground | 1500Vac/10mA//1min | ||||||||||||||
| Output - ground | 500Vdc/10mA//1min | ||||||||||||||
| Insulation resistance | ≥10MΩ | ||||||||||||||
| Leakage current | <0.75mA | 220Vac input 50Hz | |||||||||||||
| Grounded resistance | <0.1 Ω | Test current is 32A, time is 2S. | |||||||||||||
| EMC & Others | |||||||||||||||
| Conducted emission | EN55015 - Class A | ||||||||||||||
| Radiated emission | EN55015 - Class A | ||||||||||||||
| Surge | EN61000-4-5 input:line-line2KV,line-ground:4KV | ||||||||||||||
| ESD | EN61000-4-2 Contact discharge:±4KV, Air discharge:±8KV. (criterion B) | ||||||||||||||
| RS | EN61000-4-3 LEVEL 3;criterion A;10V/m field strength | ||||||||||||||
| CS | EN61000-4-6 (the power module output port also needs to be tested, criterion A;10V field strength | ||||||||||||||
| Fast transient pulse group. | ±2KV,LEVEL 3,criterion B IEC61000-4-4 | ||||||||||||||
| vibration | |||||||||||||||
| Impact | |||||||||||||||
| Voltage fluctuation and flicker. | Pst≤1.0 dc≤3%; P1t≤0.65 dmax≤4% the time of d(t)value more than 3.3% are no more than 200ms | ||||||||||||||
| Current harmonic emission | CLASS A IEC61000-3-2 6 | ||||||||||||||
| Noise | 55dB(A);testing distance:1m | ||||||||||||||
| MTBF | MTBF≥200,000h | ||||||||||||||
| Smell | No peculiar and deleterious odor | ||||||||||||||
| Mechanical | |||||||||||||||
| L * W * H (mm) | 372*109*72 mm | ||||||||||||||
| Weight(KG) | ≤2.6 KG | ||||||||||||||
Pin#
1/6 vacant
2/5 0~10V /plus
3/4 GND /minus
