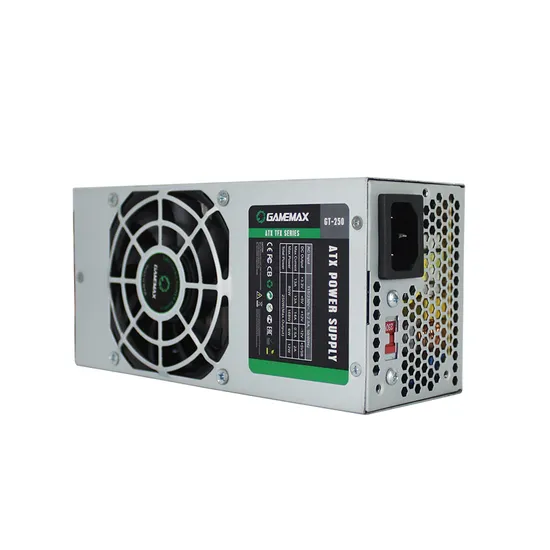

Computer Power Supply, 8cm Fan, Tfx Type, PC PSU for Business System
| Negotiable | 100 Pieces (MOQ) |
Basic Info.
Model NO.
TFX-250W
Power
<300W
ATX Standard
ATX 12V 2.2
Fan Type
8cm
Fan Size
≤8"
Feature
Wide
Hard Disk Interface
2~4
80PLUS Certification
Normal
Modular
Not Modular
Transport Package
Carton
Specification
CE FCC
Trademark
SOHOO
Origin
China
HS Code
84733090
Production Capacity
200, 000 PCS/Month
Product Description
Specs:
AC Input: 180-240 VAC
Frequency:47-63Hz
Current:3A @220VAC
Efficiency:72%
Regulation:5% (+3.3V, +5V, +12V) 10% (-12V)
Ripple:1% (p-p)
Hold Time:16ms
PG Delay:300ms
Safety
Over Voltage Protection:+3.3V, +5V, +12V
Over Current Protection:short circuit
Agency Approval:CE/FCC
Environmental
Temperature:0° - 50°C (T/C included)
Humidity:10% -85% RH
Fan Type:10 CFM (8cm)
Noise:40dB(A)
Miscellaneous
Compatibility:EPS 1U (2.1),intel TFX12V V2.3
Connectors:24 pin; 4 Pin (12V); 2 x Sata; 2 x 4 pin; 1 x FDD
MTBF:100,000 hours
Size:175*85*65mm
| C Input | 115/230VAC 5-2.5A 60-50Hz | ||||
| Output Voltage | 3.3V | 5V | +12V | -12V | 5Vsb |
| Min. Output Current | 0.5A | 0.5A | 0.5A | 0A | 0.1A |
| Max. Output Current | 13A | 13A | 14A | 0.5A | 2.0A |
| Max. Combined Wattage | 80W | 168W | 6W | 10W | |
| Total Continuous Wattage | 250W | ||||
