Universal Double Column Vertical Tool Posts Manual Lathe Machine 5000mm
| US$250,000.00-260,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
C5250
Type
Vertical Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single or Double Tool Holder Potional
Power Source
Motor
Controlling Mode
Manual
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
ISO 9001
Condition
New
CNC System
GSK, Fanuc, Siemens
Local Support
Local Support as Value-Added Services
Optional Configuration
Protection Cover, Chip Conveyor, Turret, Cooling
Tool Post Type
Square RAM or Pentagonal Tool Post
Validity of Quotation
30days
Transport Package
in Wooden Case for Export Shipping
Specification

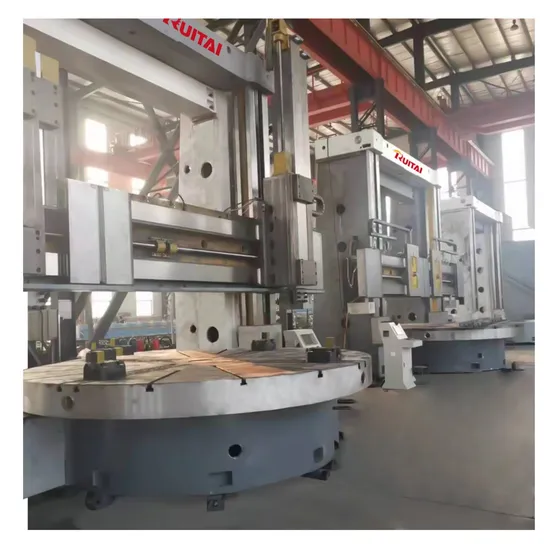

Double column vertical lathe
Trademark
GESEN
Origin
China
HS Code
8458910000
Production Capacity
100sets/Year
Product Description
DOUBLE COLUMN VERTICAL TURNING LATHEPRODUCT FEATHRES---
VERTICAL LATHE CK52 SERIES
1. Ruitai double column vertical lath is suitable for machining procession in various industries made of well qualified raw materials . 2. Applied for processing of internal and external cylindrical surface, conical surface, end face, groove, arc surface and threads, etc. 2. Adopting16/4 main spindle speed so that table speeds range from 0.42-42r/min.
3. Equipped with constant current hydrostatic guide rail, to achieve high rotation precision and large bearing capacity.
4. Designed with servo motor, ball screw drive structure and sealing cover to make sure the safety of machine.
The two tool posts can choose CNC or DVT conventional system.
Back side Left and right motor Large diameter worktable
| Parameters | |||||||
| Double column manual vertical lathe | |||||||
| No. | Items | Unit | C5225 | C5231 | C5240 | C5250 | C5255 |
| 1 | Worktable diameter | mm | 2250 | 2830 | 3200 | 4500 | 5500 |
| 2 | Max. turning diameter | mm | 2500 | 3150 | 4000 | 5000 | 5000 |
| 3 | Max. turning height | mm | 1600 | 1600 | 2000 | 2000 | 2500 |
| 4 | Max. Weight of work piece | t | 15 | 15 | 15 | 40 | 40 |
| 5 | Worktable max. torque | Kn.m | 63 | 63 | 63 | 100 | 100 |
| 6 | Range of table speeds | r/min | 2.5-63 | 2.5-63 | 2.0-50 | 0.2-40 | 1-40 |
| 7 | Cutting force of tool post-right tool post | KN.m | 40 | 40 | 40 | 50 | 50 |
| 8 | Ram horizontal stroke | mm | 1400 | 1650 | 2150 | 2700 | 2900 |
| 9 | Ram vertical stroke | mm | 1000 | 1000 | 1000 | 1250 | 1400 |
| 10 | Tool bar size | mm | 40x40 | 40x40 | 40x40 | 50x50 | 50x50 |
| 11 | Main motor power | Kw | 55 | 55 | 55 | 75 | 90 |
| 12 | Beam motor power | Kw | 7.5 | 7.5 | 11 | 15 | 15 |
| 13 | Machine weight(about) | KG | 35 | 41 | 47 | 74 | 77 |
CUSTOMIZATION SERVICE
Professional machine design to meet various working demands.
Vertical tool rest/tool turret/working height/worktable/CNC or manual/colorManual vertical lathe double column CNC vertical lathe double column
Manual double column vertical lathe CNC double column vertical lathe
CK5123 economic model CK5117CM turning and grinding model CK5116BD higher precision model
Kindly contact us to get your vertical lathe machine tool.
