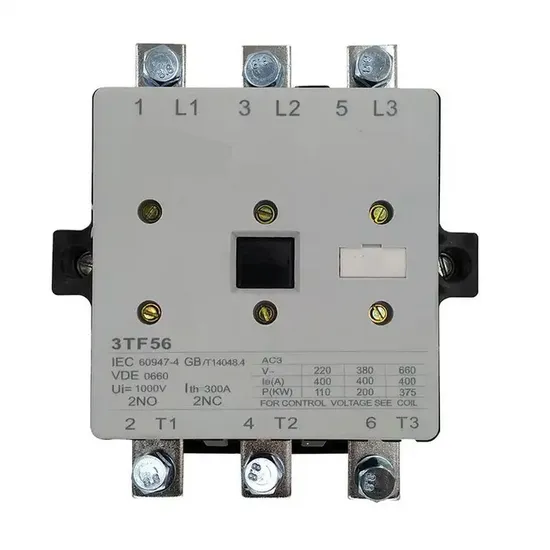

Contactor 3TF50 3TF51 3TF52 3TF53 3TF54 3TF55 3TF56 3TF68
| US$3.40-10.30 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
3TF
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
9A, 12A, 16A, 22A, 32A
Type
Ac Contactors
Standard
IEC947
Controlled Motor Power at 380V/400V
4kw, 5.5kw, 7.5kw, 11kw, 15kw, up to 335kw
Main Contact
3no
Auxiliary Contact
1no, 1nc, 1no+1nc, 2no+2nc, 4no+4nc
Coil Coltage
as Per Customer′s Requirement
Transport Package
Carton
Specification
Please refer to the attachment
Trademark
Own brand
Origin
China
HS Code
8536490090
Production Capacity
100000
Product Description
Product Description 3TF series of AC contactors are suitable in electrical system with AC 50Hz or 60Hz, with rated operational voltage up to 660Vac, and with rated operational voltage up to 380V for AC3 load, and with rated operational current from 9A up to 630A for the purpose of making or breaking remote motors or system. They from electromagnetic starters with suitable thermal overload or phase-failure. They are made according to IEC947, BS5424 & VDE0660.The contactor is a straight motion mechanism having double-breaking contacts. The auxiliary contacts are arranged 2NO+2NC at most. It is employed the flexible locking connection between the contact support and core, three are no arc isolated panel in the le ≤ 22A contactors, in the le ≤ 32A contactors, there are moulded are-chute with arc-isolated panel. Because all contacts are made of high non-fusibility and against corrosion silver alloy, All series products can be mounted by screws, le ≤32A contactor also by installation rail.
Model: 3TF30, 3TF31,3TF32, 3TF33, 3TF34, 3TF35,
3TF40, 3TF41, 3TF42, 3TF43, 3TF44, 3TF45, 3TF46, 3TF47, 3TF48, 3TF49,
3TF50, 3TF51, 3TF52, 3TF53, 3TF54, 3TF55, 3TF56, 3TF68
3NO main contact (power contact)
Auxiliary contact: 1NO, or 1NC, or 1NO+1NC, or 2NO+2NC, 4NO+4NC.
Product Parameters
| Type | Rated themal current (A) | Rated operating current (A) | Controllable power of (kW) | Auxiliary contact | ||||
| AC-3 | AC-4 | |||||||
| 380V | 660V | 380(V) | 660(V) | 380(V) | 660(V) | |||
| 3TF30 | 20 | 9 | 7 | 4 | 5.5 | 1.4 | 2.4 | 1NO 1NC 1NO+1NC 2NO+2NC |
| 3TF31 | 20 | 12 | 8.5 | 5.5 | 7.5 | 1.9 | 3.3 | |
| 3TF32 | 30 | 16 | 12.5 | 7.5 | 11 | 3.5 | 6 | |
| 3TF33 | 30 | 22 | 16.5 | 10 | 15 | 4 | 6.6 | |
| 3TF34 | 55 | 32 | 24 | 15 | 22 | 7.5 | 13 | |
| 3TF35 | 55 | 38 | 30 | 18.5 | 22 | 9 | 15.5 | |
| 3TF40 | 20 | 9 | 7 | 4 | 5.5 | 1.4 | 2.4 | |
| 3TF41 | 20 | 12 | 8.5 | 5.5 | 7.5 | 1.9 | 3.3 | |
| 3TF42 | 30 | 16 | 12.5 | 7.5 | 11 | 3.5 | 6 | |
| 3TF43 | 30 | 22 | 16.5 | 10 | 15 | 4 | 6.6 | |
| 3TF44 | 55 | 32 | 24 | 15 | 22 | 7.5 | 13 | |
| 3TF45 | 55 | 38 | 30 | 18.5 | 22 | 9 | 15.5 | |
| 3TF46 | 80 | 45 | 40 | 22 | 37 | 12 | 20.8 | 2NO+2NC 4NO+4NC |
| 3TF47 | 80 | 63 | 60 | 30 | 55 | 14 | 24.3 | |
| 3TF48 | 100 | 75 | 60 | 37 | 55 | 17 | 29.5 | |
| 3TF49 | 100 | 85 | 80 | 45 | 75 | 21 | 36 | |
| 3TF50 | 160 | 110 | 95 | 55 | 90 | 27 | 46.9 | |
| 3TF51 | 160 | 140 | 120 | 75 | 110 | 35 | 60 | |
| 3TF52 | 200 | 170 | 160 | 90 | 150 | 38 | 66 | |
| 3TF53 | 210 | 205 | 165 | 110 | 160 | 50 | 86 | |
| 3TF54 | 300 | 250 | 230 | 132 | 220 | 58 | 100 | |
| 3TF55 | 300 | 300 | 260 | 160 | 250 | 66 | 114 | |
| 3TF56 | 400 | 400 | 380 | 200 | 355 | 81 | 140 | |
| 3TF68 | 630 | 630 | 600 | 335 | 560 | 160 | 278 | |
