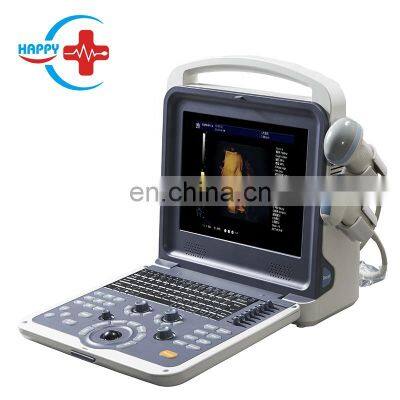

Portable color doppler ultrasound price system/4D ultrasound machine portable

Portable color doppler ultrasound price system/4D ultrasound machine portable

Product Description

Product Description
HC-A011 Portable color doppler ultrasound price system/color doppler ultrasound equipment
Product Description
Features for 4d ultrasound machine portable:
1. 12 inch high resolution medical LED monitor ,the weight is 6.5KG,easy to take
2. Portable clamshell design, compact, smart and easy to take
3.Satellites orbiting type control panel and backlit keyboard design
4. Built-in floating standard keyboard
5. Unique design for power key and reset key
6. Friendly user’s operation interface
7.High resolution 2D image and sensitive Color Doppler blood flow imaging system
8. Intelligent one touch optimization
9.Can be matched with several kinds of probes (such as convex probe, linear probe, transvaginal probe, phased array probe…)
10. Abundant peripheral (Such as USB, DICOM 3.0, VGA…)
11. Built-in SSD (Solid State Disc) improves the stability and reading speed
12. Built-in large capacity rechargeable Li-ion battery, standby time is up to 2 hours (option)
13.Can be updated to 4D (option)
14. Optional accessory filter
15. Independent research, can change the software according to customer demanding, can cooperate by OEM.
16. Supply good after-sales service, our own service engineer to solve the problem as soon as possible
17. Supply factory visiting
18.PC system(Windows XP), can update the system in customized, can match with any types of printer
19. Can use the key to overturn the 4D image in X Y Z director.
Technical specifications:
Displaying mode
B,B/B,4B,B/M,M,PW,B/C,B/C/D,B/D, duplex, triplex, CFM,4D
Signal processing:
Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
Image processing:
THI
PSHI TM broadband multi-frequency harmonic image
Speckle-reduction
Power adjustable
Smoothing function
iBeam TM intelligent space image technology
iZoom TM undistorted full screen image
Free Xros M
Engineer control technology with low power consumption
Edge enhancement Image optimizing disposal
One-key optimization
Image conversion
Doppler Sound output volume adjustable
Wall filter adjustable
Base line adjustable
Sampling frame adjustable
Spectrum sampling volume adjustable
Spectrum sampling volume angle adjustable
PRF adjustable
General measurement
B mode-distance, circumference, area, volume, angle, area Red, Diam Red
M mode- distance, time, velocity, heart rate
Abdomen measurement
Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen
OB packages
EDD table :GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD, Cxlength.
Gynecological packages
Uterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement; Cervix; Uterine depth
Urology packages
Left/right kidney measurement, Volume, Cortex
Small parts Measurement
Left/ right thyroid, volume, Isthnus and calculating report
Cardiac Measurement Package
Heart rate, Valve speed, LV, aortic, mitral, ventricular
Skeletal & Muscles
Skeletal & Muscles, distance, area, Hip angle
Vascular
Senosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA
Scanning depth
300mm
Body mark
Abdominal ,Cardiology, Gynecology, Obstetrics, Small parts
Cine loop
Automatically & manually, speed control
Image storage format
BMP, JPEG, PNG
Input/output ports
VGA, USB port, DICOM port
Standard Configuration
Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe,2 probe connectors, hard disk,battery,DICOM 3.0
Options
6.5Mhz transvaginal probe, 3.5Mhz micro-convex probe, 3.5Mhz phased array probe, 4D volume probe, trolley, USB laser printer and Video printer

Smart design:
The familiar PC system makes the system intuitive and easy to use. Flexible design allows system to be used conveniently.
Probes information:
Configuration
Probes
5 Steps Multi-frequency
Standard:
3.5Mhz abdominal probe
2.0, 3.0, 3.5, 4.0, 5.5Mhz

7.5Mhz linear probe
6.0, 6.5, 7.5, 10.0, 12.0Mhz

Options:
6.5Mhz transvaginal probe
5.0, 6.0, 6.5, 7.5, 9.0Mhz

3.5MHz micro-convex probe
2.0, 2.5, 3.5, 4.5, 5.0Mhz

3.5Mhz phased array probe
2.0, 3.0, 3.5, 4.0, 5.5Mhz

4D volume probe
2.0, 3.0, 3.5, 4.0, 5.5Mhz
Pictures for 4d ultrasound machine portable:
Packaging & Shipping
Company Information
FAQ
1. How to place order of 4d ultrasound machine portable ?A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For 4d ultrasound machine portable product,What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our 4d ultrasound machine portable , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For 4d ultrasound machine portable , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity.
For 4d ultrasound machine portable , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
