Topkit Tower Crane with CE Centification Tc7040-16t

Product Description

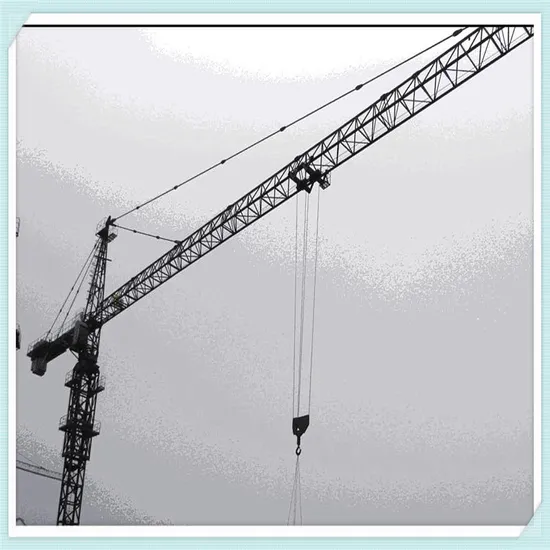

Topkit Tower Crane with CE Centification TC7040-16t
QTZ315 tower crane is take full advantage of group technology, modular design techniques and finite element analysis technology, "tower crane computer design platform" as a tool designed for the latest model of Hoisting and Conveying Machinery.
The machine is horizontal jib, trolley, slewing crane hydraulic jacking, maximum load is 16t.
Features:
(1). Performance parameters and technical indicators have reached the international advanced level, maximum working range is 70 m, an increase of tower crane working space.
(2). The machine appearance is the international popular form, the beauty is generous.
(3). Wide work range, wide use range. With base fixed and wall attachment two working modes, for a variety of different construction objects; freestanding height is 48 meters, in 2 falls attachment max.height is 183 meters, 4 falls is 93 meters.
(4). High working speed, good speed control performance, smooth operation and high efficiency.
Hoisting mechanism using frequency motor, to achieve heavy load low speed,light load high speed,maximum speed up to 63m / min.
Trolley mechanism torque motor Adopts torque motor drawing the car in a horizontal amplitude on the arm,It has good performance in place.
Slewing mechanism using torque motor, high load capacity, smooth start, reliable operation, with the wind in place function.
(5). Using rigid double rod suspension crane boom,good rigidity, light weight, small cross section, small wind resistance, stressed uniformly, beautiful appearance.
(6). Various safety devices, can ensure the safe and reliable.
(7). The cab independent offside, good vision, good operators to create a good working environment.
(8). Operation good and easy maintenance.
(9). When the machine installed to freestanding height and maximum working range,the weight(excluding counterweight, foundation and attachment device) 76.7t, the total installed capacity of 180KW, widely used in high-rise hotels, industrial buildings and other large construction projects, is ideal for the majority of construction companies the construction machinery.

Jib (m)	3.2~16.8	18	20	22	23	24	25	26
4 falls (kg)	18000	16690	15107	14350	13659	13025	12442	11904
2 falls (kg)	9000	9000	9000	9000	9000	9000	9000	9000
Jib (m)	27	28	29	30	31	32	33	34
4 falls (kg)	11405	10942	10512	10109	9733	9381	9049	8737
2 falls (kg)	9000	9000	9000	9000	9000	9000	9000	8900
Jib (m)	35	36	37	38	38.4	39	40	41
4 falls (kg)	8443	8166	7903	7654	7600	7418	7194	6981
2 falls (kg)	8860	8620	8520	8100	8000	7964	7741	7530
Jib (m)	42	43	44	45	46	47	48	49
4 falls (kg)	6778	6584	6399	6222	6053	5891	5736	5588
2 falls (kg)	7328	7136	6953	6778	6610	6450	6296	6149
Jib (m)	50	51	52	53	54	55	56	57
4 falls (kg)	5445	5308	5176	5049	4926	4809	4695	4586
2 falls (kg)	6007	5871	5740	5614	5493	5376	5264	5155
Jib (m)	58	59	60	61	62	63	64	65
4 falls (kg)	4480	4377	4279	4183	4091	4001	3914	3830
2 falls (kg)	5050	4949	4851	4756	4664	4576	4490	4406
Jib (m)	66	67	68	69	70
4 falls (kg)	3749	3669	3593	3518	3446
2 falls (kg)	4325	4247	4171	4097	4025

Main parameters

Hoisting mechanism	Model			70RCS40
	Model of motor			YRTE 3 -180L-4B 5
	Power		KW	51.5× 2
	Hoisting speed	2 falls/load	m/min	60/4	30/8
		4 falls/load		30/8	15/16
Slewing mechanism	Model			RCV185B
	Model of motor			YTLEJ132L-185-4B 1
	Torque of motor		N. m	185× 2
	Slewing speed		r/min	0~0.7
Trolleying mechanism	Model			X185K
	Model of motor			YTLEJ132L-185-4B 1
	Trolleying speed		m/min	40/20/10
Jacking speed			m/min	0.4
Outsize of whole crane	Tip of hoisting jib to slewing center			71.72
	Tip of balanced jib to slewing center			19.2
Balanced weight			t	29
Allowed work temperature			º C	-20~+40
Basic wind pressure under work			Pa	250
Basic wind pressure out of work			Pa	1100
Power supply			50Hz	~380V± 10%
