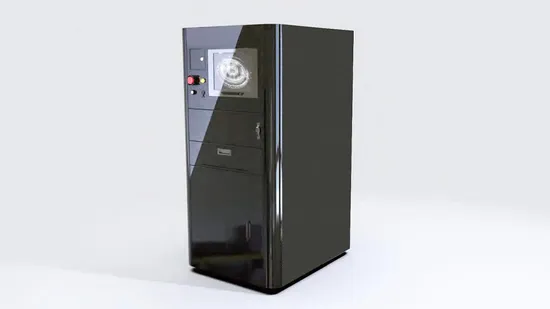

Additive Manufacturing 3D Printer with Quality Laser Head-Model Number 120

Product Description

3D Printer Machine
Features High efficiency: The maximum scanning speed is increased to 7m/s, and the molding rate is effectively improved by increasing the powder spreading speed; Equipped with new and efficient powder cleaning equipment to help customers truly improve production efficiency, reduce production costs, and save delivery cycles; High precision: The WXL-300 equipment uses a 200W fiber laser with a spot diameter of 40-50 μ m. Equipped with slicing and printing software, precision manufacturing of workpieces can be achieved; Adopting a super large intelligent industrial touch screen, it can completely replace traditional mice, keyboards, and displays, providing users with a comfortable operating experience; Autonomous open source operating system: The device adopts a complete set of 3D printing operating systems with independent intellectual property rights. Users can independently adjust equipment parameters and flexibly choose metal materials.

Technical Parameters	Value
Size	(W×D×H)2400mm×1200mm×2300mm
Weight	2000kg
Maximum molding size	300mm×300mm×400mm
Maximum powder feeding volume	300mmx450mmx 430mm
Powder layer thickness	30μm(20μm~100μm)
Minimum processing size	200μm
Forming rate	5-20cm3/h
Scanning speed	7m/s
Scanner	Dynamic focusing, high-precision laser galvanometer scanning system
Laser	200W continuous laser (imported fiber laser)
Laser spot diameter	<70 μm
Maximum reservation temperature	200ºC
Minimum oxygen content	≤100PPM
Power requirements	380VAC,50/60HZ. 2KVA,Three-phase five-wire
Powder spreading tool	High-performance heat-resistant ceramic/silicone rubber sheet
Powder delivery method	Single-cylinder powder feeding, one-way powder spreading
Inert gas supply	Ar/N2
Gas consumption	7L/h (printing process)
Operating system	Windows7
Data format	STL
Printing materials	Titanium alloy, aluminum alloy, copper alloy, cobalt chromium alloy, stainless steel, die steel, etc.

After-sales service
1.Machine inspection before delivery When you come to our factory, check whether everything is normal.
2.Provide some necessary spare parts for free.
3.One year guarantee for all machines. If there is any problem, we will assume it. Of course, if the machine is one year later, you can also ask for technical guidance.
4.After the final acceptance of the equipment, we will provide free training for your operators on equipment operation.
5.The warranty period starts from the date when the equipment arrives at the production site of the Demander and the acceptance is completed. For equipment damage not caused by human error, all maintenance and parts replacement are provided free of charge, and the personnel costs are also borne by the Supplier.
Why choose us?
1. All machines are manufactured by us to reduce the cost of customers.
2. We have more than 20 years of mechanical manufacturing experience, low price and high quality.
We usually guarantee the quality of machine parts. And provide parts for the service life of the machine at a reasonable price.
3.If you need to replace any parts, we will send them by express as soon as possible.
4. Installation service When you have completed the preparation conditions, our fast and professional after-sales service engineer team will go to.
5. We should pay attention to every detail in the manufacturing process. The quality control of our factory is very strict. All machines must be checked many times before they are delivered to our customers.
