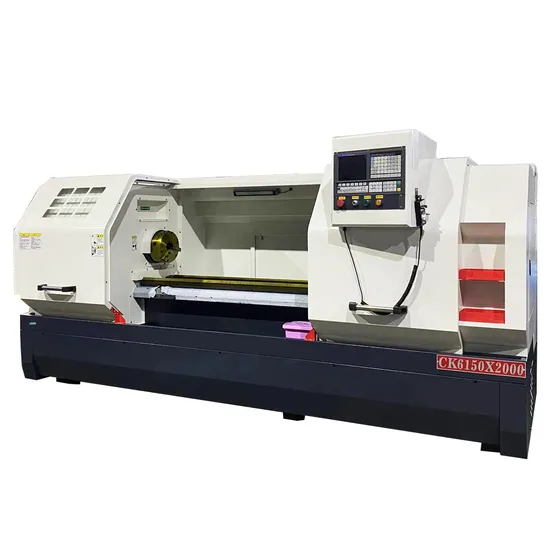

Ck6150-2000 Flat Bed CNC Lathe Machine Tools Metal Cutting Milling Drilling Machine
| US$12,000.00-13,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6150-2000
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
NC
Processing Precision
0.015-0.02
Performance Classification
Economical CNC Machine Tools
Condition
New
System
GSK or Syntec
System Version
English
Clamping Way
Manual Chuck(Hydraulic and Pneumatic Are Optional)
Machine Weight
4000kg
X/Z Drive
300/2000mm
Spindle Bore
82mm
Max Bar Machining Length
850/1500/2000mm
Tool Post
4 Station Tool Post
Installable Accesories
Chat with Supplier
Transport Package
Wooden Box
Specification
4800*1200*1800mm
Trademark
XINSHIHENG
Origin
Taizhou
HS Code
8458110090
Production Capacity
2000 Pieces/Year
Packaging & Delivery
Package Size
500.00cm * 140.00cm * 200.00cm
Package Gross Weight
4200.000kg
Product Description
Product Description
Detailed Photos
Product Parameters
And the number | Item категория | Model модель | unit единица | parameter число |
Machining capacity Мощность обработки | The Maximum swing diameter over the bed Максимальный диаметр поворота станины | mm | Φ500 | |
| The Maximum swing diameter over the slide Максимальный диаметр поворота прицепа | mm | Ф300 | ||
| The Maximum machining diameter Максимальный диаметр резки | mm | Φ500 | ||
| The Maximum machining length Максимальная длина заготовки | mm | 2000 | ||
Stroke путешествовать | X/Z axis Maximum stroke Максимальный ход оси X/Z | mm | 300/1850 | |
| X/Z axis Minimum movement unit Минимальная единица смещения оси X/Z | mm | 0.001 | ||
Spindle Веретено | The spindle hole diameter Диаметр шпинделя через отверстие | mm | Ф82 | |
| Spindle Series Серия основных осей | () continuously variable transmission | |||
| Spindle speed Предельная скорость шпинделя | rpm | 50-1600 | ||
| Spindle nose Конец главного вала | A2-8 | |||
| Spindle Power(Frequency conversion) Мощность главного двигателя (преобразование частоты) | kW | 7.5 | ||
| Frequency changer преобразователь частоты | kW | 7.5 | ||
| X/Z axis Ось X/Z | N.m | 5/7.5 | ||
| X/Z axis fast move velocity Быстрая скорость оси X/Z | m/min | 6/8 | ||
Feed knife holder | Tool rest form Тип подручника | 6-станционная электрическая турель(6) | ||
| Tool shank size Размер стержня инструмента | mm | 25*25 | ||
| Repeatable tool holder positioning accuracy Повторяемая точность позиционирования держателя инструмента | mm | ≤0.004 | ||
| Tailstock inside diameter Диаметр втулки хвостового седла | mm | Φ75 | ||
| Tailstock inside stroke Ход втулки хвостового седла | mm | 200 | ||
Коническое отверстие в верхней части хвостового седла | Mohs 5# | |||
other | Electricity demand (power/current) Спрос на электроэнергию (мощность/ток) | kW/A | 15kW/20A |
Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms?
A:FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, it can be ready the machine within 15 days. if you need to customized, the time will be little longer.You can place order according to delivery time and ship time. We will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, lathe warranty is one year and system warranty is three year
5. What is the package of the machines?
A:The machines standard will be packed in wood case. If the machine is very heavy, we will reinfore the box with iron frame.
