Mini Laboratory Wool Cotton Carding Machine Card Wooling Machine

Product Description

Product Description

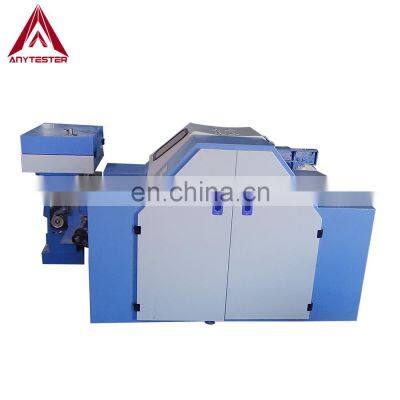

Product DescriptionAT202 Laboratory Carding Machine for Wool is part of the mini spinning system. It’s mainly used in university, researching center etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.SpecificationModelAT202Cylinder width360mmCylinder diameterΦ270mmDoffer diameterΦ160mmLicker-in roller diameterΦ60mmWork roller diameterΦ60mmStripping roller diameterΦ60mmFeeding roller diameterΦ60mmSpeedAdjustable(Frequency converter control)Villus bucket power1.5KWOutput capacity5-10kg/hMaine machine power220V/380V, 50/60Hz, 2.2KWDimension1350mm*950mm*900mm(main machine)900mm*900mm*1200mm(villus bucket)Weight800kgDetails & Features★ Imported frequency converter control, high efficiency.★ Mini type machine, save researching cost and easy to operate and maintain.★ Can be used for wool fiber or chemical fibers★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web★ This machine can output both sliver or web according to customer’s request.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1400*900*1600mmWeight200kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
